Used 1964 PARKER MAJESTIC 12 X 30 | GRINDERS, CYLINDRICAL – UNIVERSAL

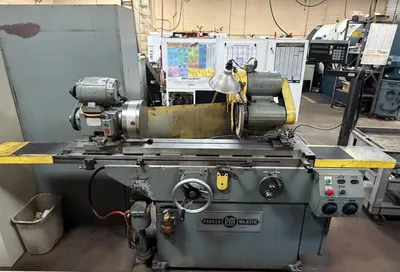

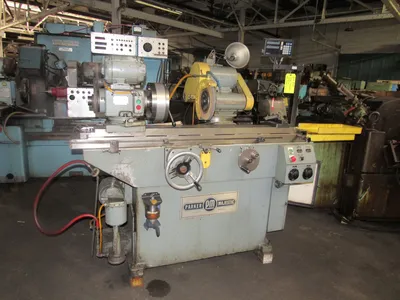

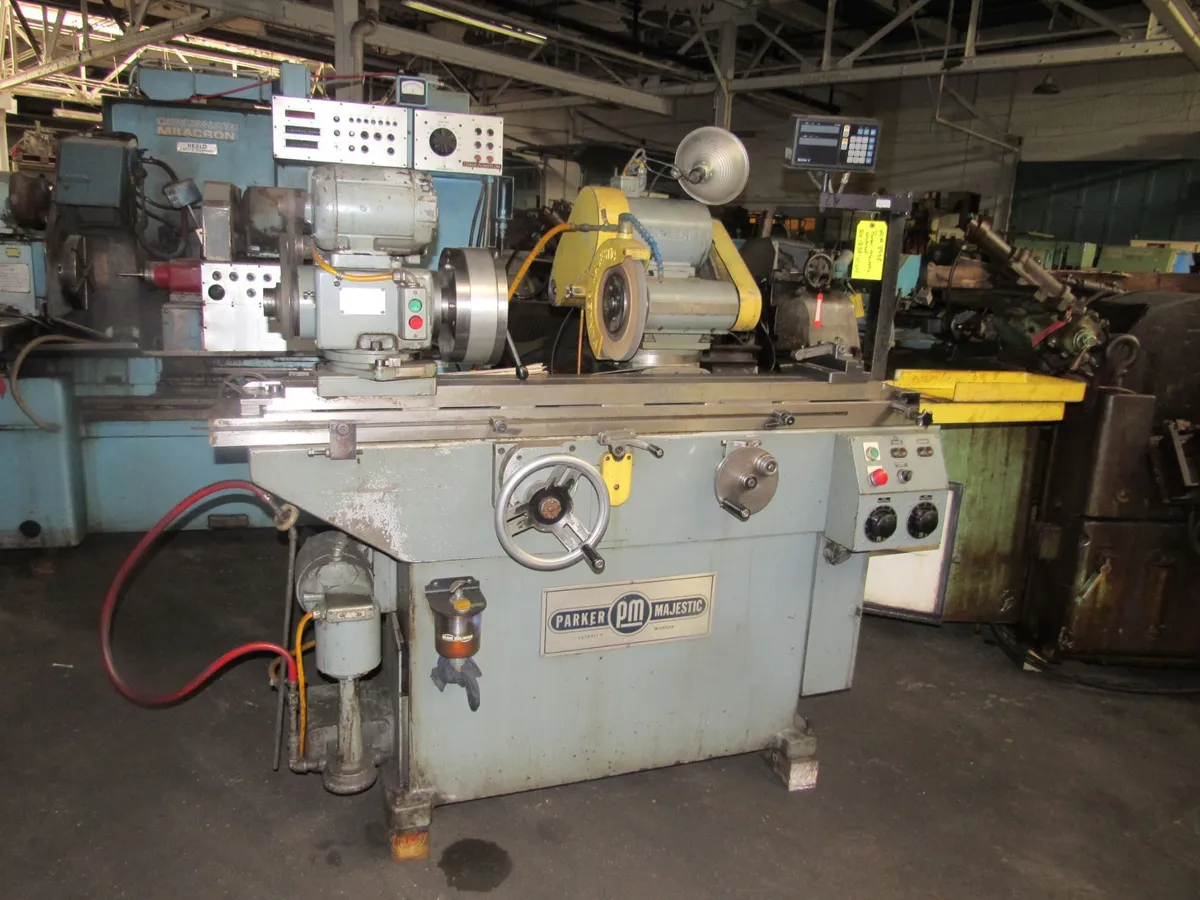

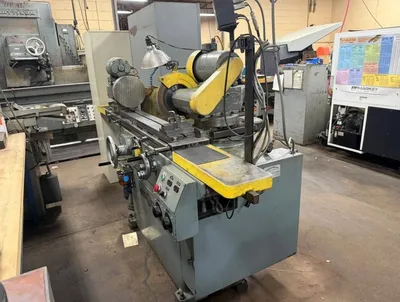

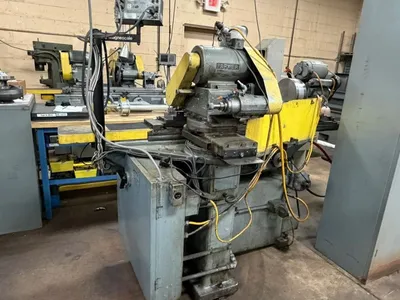

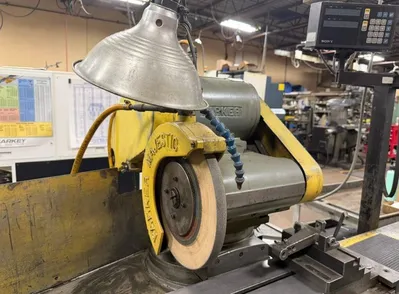

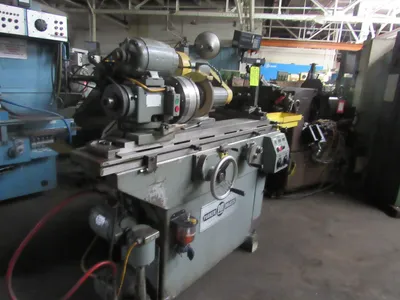

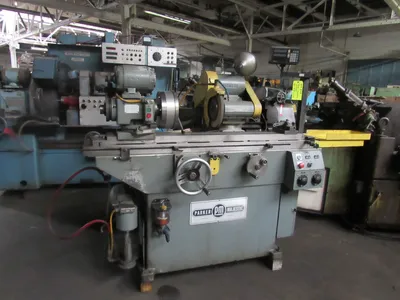

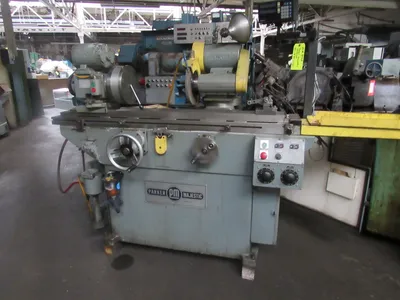

PARKER MAJESTIC 12x30 ID/OD UNIVERSAL GRINDER

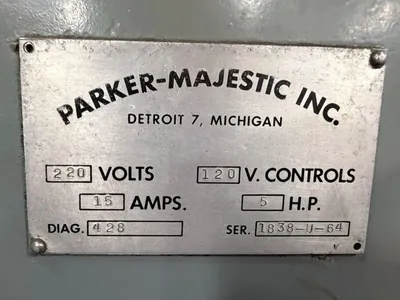

S/N 1838-U-64 YEAR: 1964

STANDARD SPECIFICATIONS

CAPACITY
Swing over table.............................. 12"
Distance between centers...................... 30"
Table working surface......................... 5” x 50”
Table speeds.................................. 3” to 30” per min.
Table swivel.................................. 7 Degrees

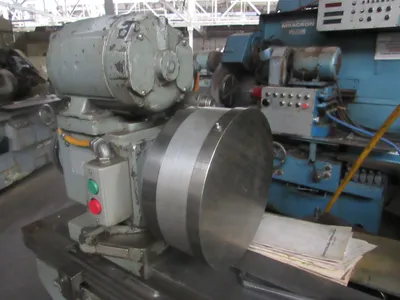

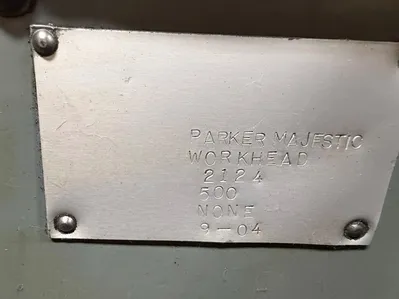

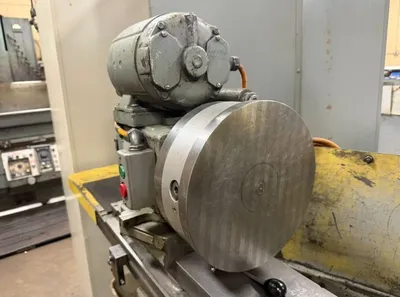

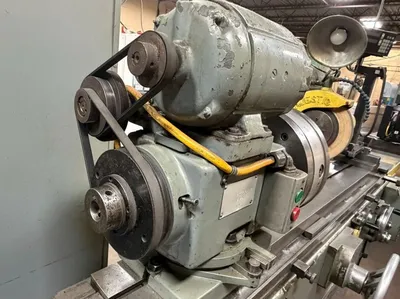

HEAD STOCK
Head stock speeds (I.D.)......................-25 to 450 RPM
Head stock speeds (O.D.)......................-25 to 225 RPM
Head stock swivel............................. 90 Degrees
Hole through shaft............................ 1 ¼”
Head stock center taper....................... #6 Jarno

TAIL STOCK
Tail stock center taper....................... #6 Jarno

CROSS FEED
Cross feed travel............................. 3 ½”
Cross feed adjustment......................... 4”
Cross feed handwheel graduated................ .0005”
Cross feed precision dial graduated........... .00005”

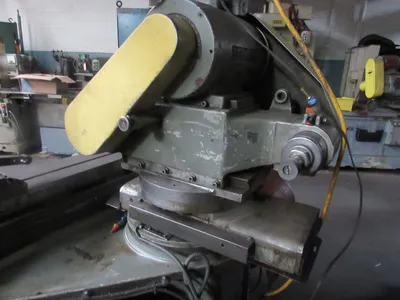

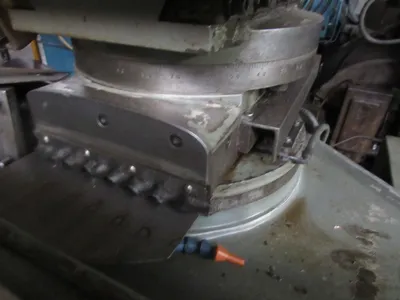

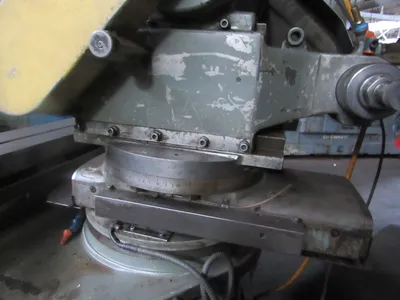

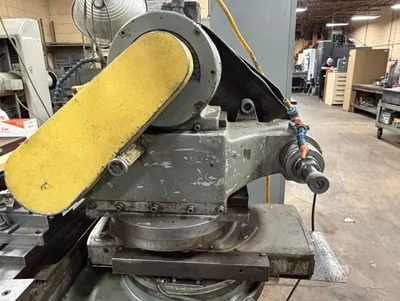

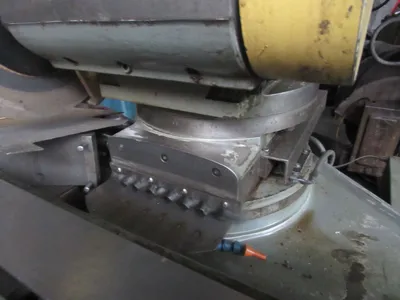

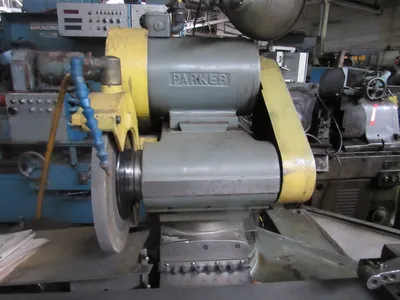

SPINDLE BRACKET
Diameter of internal spindle.................. 3”
Diameter of external spindle.................. 3.75”

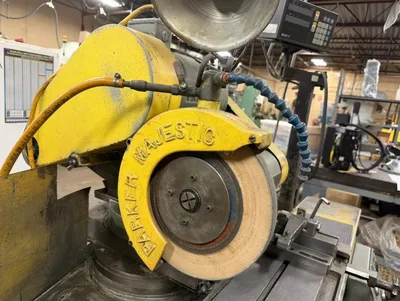

External grinding wheel....................... 12” x 1” x 5”

MOTORS
Table feed motor............................. ½ HP @ 1750/400 RPM
Work head motor.............................. ¾ HP @ 1750/400 RPM

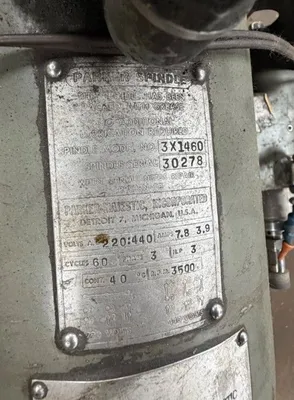

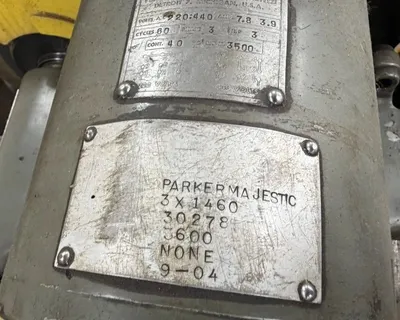

Spindle drive motor (Int-Comb.).............. 3 HP @ 3600 RPM
Spindle drive motor (External)............... 2 HP @ 1800 RPM

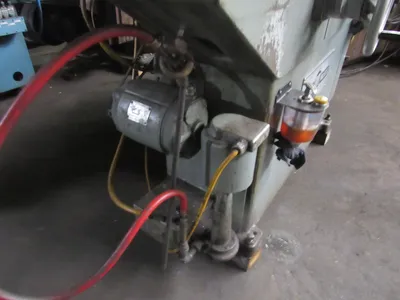

COOLANT
Coolant capacity............................. 12 Gallons
Coolant flow capacity........................ 13 Gallons per min.

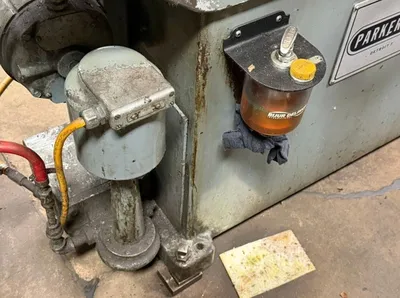

LUBRICATION
Bijur one-shot lubrication & lifetime grease.

GENERAL SPECIFICATIONS
Floor height
(floor to centerline of work piece).......... 46”
Floor space.................................. 41” x 124”
Shipping weight.............................. 3,800 lbs.
Net weight................................... 3,600 lbs.

EQUIPPED WITH
Table dresser.
Swing around internal spindle.
Coolant in base.
Sine bar.
Power table.

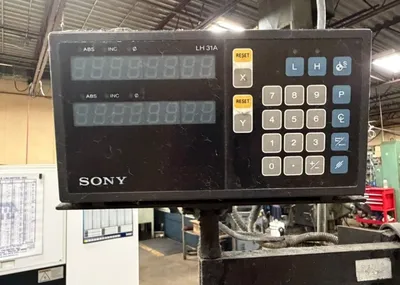

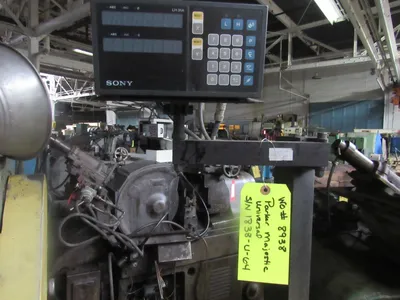

Sony DRO on grinding wheel spindle.

Specifications are deemed accurate, however, subject to verification or prior sale.
