SHIGIYA GU-308-100A 080147

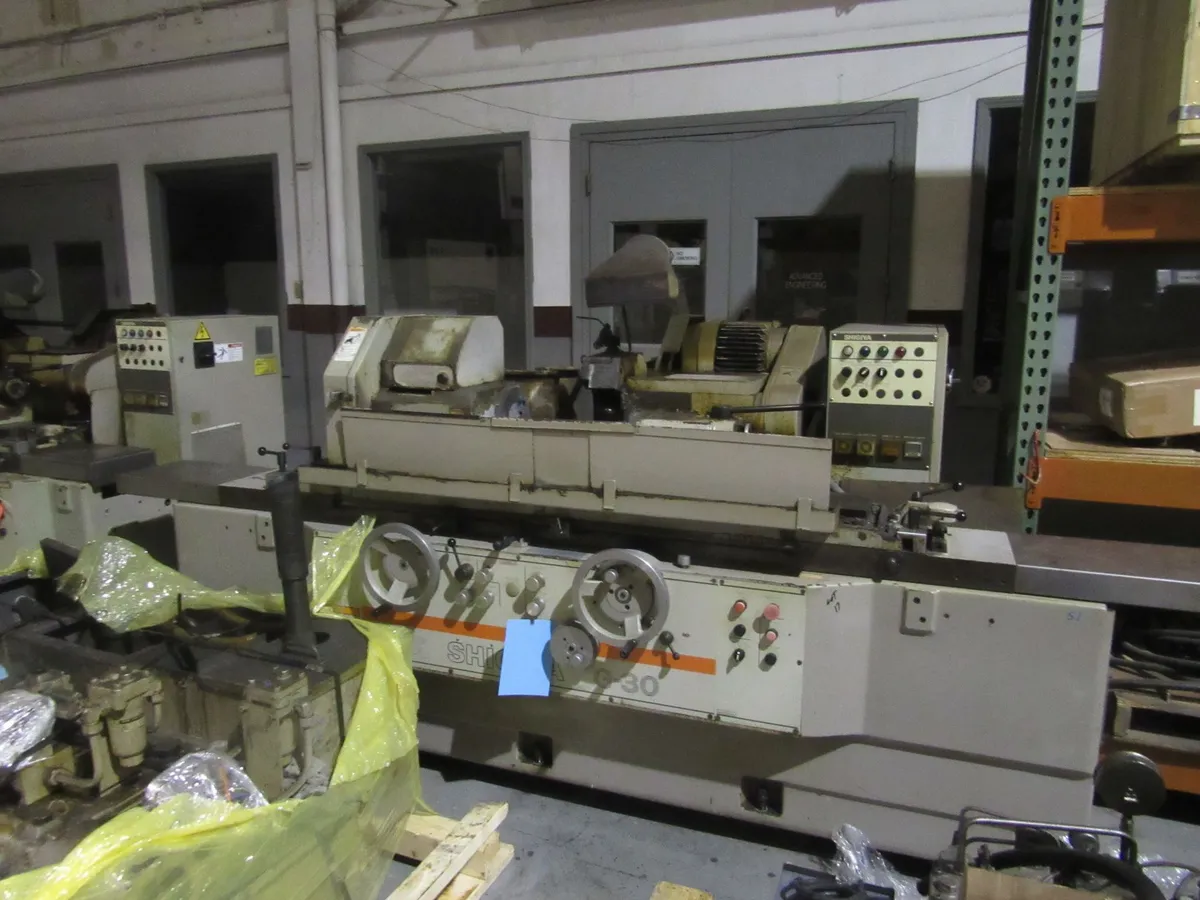

SHIGIYA GU-30B-100A CYLINDRICAL GRINDINGMACHINE

S/N 080147 Year: 1998

SPECIFICATIONS

CAPACITY
Swing Over Table Diameter.......................... 11.8”
Max Grinding Diameter................................. 11.8”
Distance Between Centers............................. 40”
Max Workpiece Mass………………………..331 LBS

WHEELHEAD
Swivel Angle................................................. / - 30 Degrees
Wheel Size..................................................... 14” x 1” x 6”
Wheel Speed.................................................. 33m / sec
Total Travel.................................................... 11”
Rapid Feed Travel.......................................... 2”

WORKHEAD
Work Spindle ................................................ Swivel, Dead / Live Spindle
Rotation Speed.............................................. 60 HZ
Center Hole Taper……………………………MT. No. 4

TAILSTOCK
Type………………………………………….Manual Lever
Spindle Stroke………………………………..1”
Center Hole Taper……………………………MT. No. 4

TABLE
Swivel Angle (C.C.W.)………………………7 Degrees
Swivel Angle (C.W.)…………………………1 Degrees
Manual Feed Amount (One Revolution)……..0.5”
Automatic Feed Speed………………………..50-3,000mm / min

MOTOR
Wheel Spindle………………………………...3.7 KW 4P
Work Spindle…………………………………0.3 KW 4P
Wheel Spindle Lubrication Pump…………….0.1 KW 4P
Hydraulic Pump………………………………0.75 KW 4P
Coolant Pump………………………………....0.18 KW 2P

TANK CAPACITY
Wheel Spindle Lubrication Oil Tank………….12 Liters (ISO VG5)
Hydraulic Oil Tank……………………………54 Liters (ISO VG68)
Coolant Tank………………………………….120 Liters

Center Height From Floor…………………….1,090mm

Weight…………………………………………8,598 LBS

Specificationsare deemed accurate, however, subject to verification or prior sale.

NOTE: Due to rising costs partly by unsteadypricing in purchased goods and supply chain issues, this quote is good for 30days. Prices are subject to change, please contact us to confirm prior toissuing an order.
