2010 GLEASON 360T

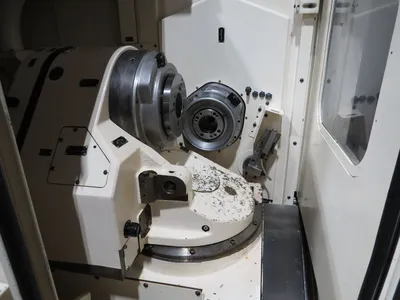

Gleason 360T Flexible CNC Bevel Gear Tester
 S/N 1006201              YEAR: 2010

SPECIFICATIONS
Max Workpiece Diameter……………………………………………………………18” (450mm)
Max Gear Outside Diameter………………………………………………………..14.2” (360mm)
Max Pinion Outside Diameter………………………………………………………13.4” (340mm)
Max Pinion Drive Speed……………………………………………………………….3000 RPM
Max Gear Drive Speed………………………………………………………………….1500 RPM
Offset Vertical………………………………………………………………………………5.9” (150mm)

CONE RANGE
Pinion Cone Range……………………………………………………………………….(90) (135-350)
                                                                                                                     (70) (146-438)
                                                                                                                     (110) (51-343)
Gear Cone Range…………………………………………………………………………(90) (65-280)
                                                                                                                     (70) (78-306)
                                                                                                                     (110) (56-284)

Standard Testing Torque Load 2 to 90 Nm (1.5) to 66 ft-lb).
Parallel Axis – Face to Face 147-362 (Center Distance -7 -250)

SPINDLE BORE SIZE
Pinion Spindle Bore……………………………………………………………………….39T
•    Diameter……………………………………………………………………………3.9” (99.2mm)
•    Depth………………………………………………………………………………...16.5” (419mm)
Gear Spindle Bore………………………………………………………………………….39T
•    Diameter……………………………………………………………………………3.9” (99.2mm)
•    Depth…………………………………………………………………………………9.8” (250mm)

DIMENSIONS & WEIGHT
Floor Space (Length & Width)…………………………………………………82.7”x 100.4” (2100 x 2550mm)
Height (To Top Of Stack Light)………………………………………………..108.3” (2750mm)
Weight (Base Machine)…………………………………………………………..20062 LBS (9100 KG)

EQUIPPED WITH
Fanuc 160I MB.
Base work holding.
Draw bars.
Automatic doors.
Spindle chiller.
Transformer.
Hydraulic system.
Festo pneumatics.
Automation interface available.
