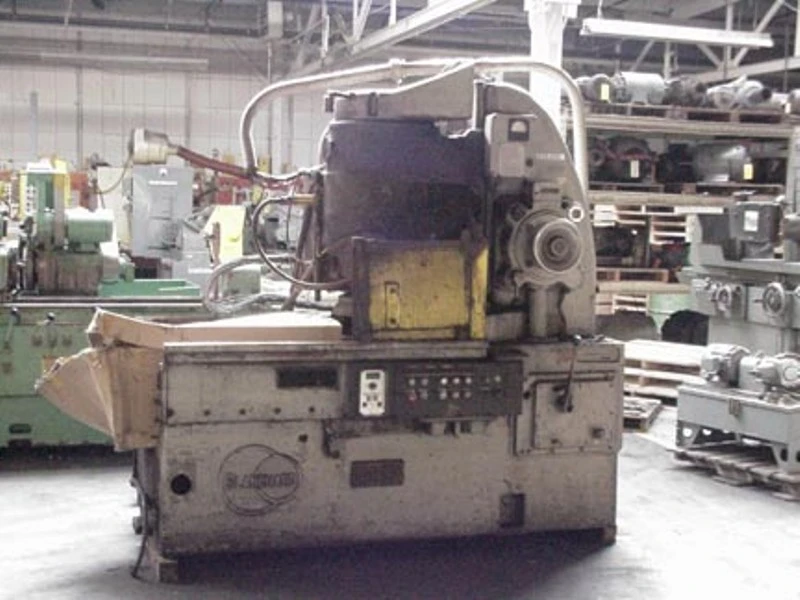

NO. 18CD-42 BLANCHARD ROTARY SURFACE GRINDER

NO. 18CD-42 BLANCHARD ROTARY SURFACE GRINDER
Auto Cycle - Dry Base

S/N 10322 Year:1961

STANDARD SPECIFICATIONS

RANGE
48 Diameter x 12 high under new cylinder wheel.

WORKTABLE
Blanchard one-piece steel magnetic chuck, 42diameter with .567 pole spacing except .850 spacing over three concentric main poles. Chuck has 4center hole and twelve 3/8 tapped holes and three 5/8 tapped holes. Maximum weight of work load - 2,000 lbs.

WHEELS
22 4 Segment wheel chuck.

SPEEDS
Wheel: 720 R.P.M. on 60 cycle current; chuck - 6, 9, 12, 18, 25 and 33 R.P.M.
Auxiliary Motors: Chuck rotation - 1200 R.P.M.; head raise and lower and table traverse- 900 R.P.M.
Water Pump: 1800 R.P.M. (60 cycle speeds)

FEED
Vertical down feed by hand or power. Power feed variable from .004 to .080per minute with accurate automatic stop.Maximum down feed before stop operates is .098. Wheel has rapid raise and lower by power interlocked with feed.

WATER SUPPLY
External coolant tank and pump.

FLOOR SPACE
Length 9' 9, width 5' 5,including control panel.
15,000 lbs.

HEIGHT
Maximum height 7' 7; minimum height 6' 9;chuck is 37 1/2 above floor.

WEIGHT
Grinder with standard equipment- net: 13,300 lbs.

EQUIPMENT FEATURES
42 Blanchard one-piece magnetic chuck with 50% life.
Neutral rectifier.
50 HP 220/440 Volts.
Height wheel to chuck 12.
Wheel dresser.
All guards.
Load meter.
Coolant tank and pump.

Specifications are deemed accurate, however, subject to verification or prior sale.
