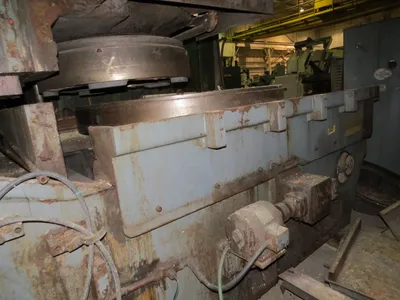

36-60 BLANCHARD ROTARY SURFACE GRINDER

36-60 BLANCHARD ROTARY SURFACE GRINDER

S/N 10473 Year: 1961

STANDARD SPECIFICATIONS

Range
72" Swing; 27" vertical range over chuck with new wheel segments.

KVA Req’d: 75 HP – 95 KVA.

Work Table: (Blanchard one piece steel magnetic chuck) 60" diameter magnetic chuck, maximum unbalanced work load to 10,000 lbs.

Feed: Vertical down feed by hand or power. Power feed variable from .004" to .080" per minute.

Coolant Supply: External coolant supply required 150 GPM approximate flow rate.

Floor Space: 186" x 84" x 134" maximum height, plus electric panel 63’ wide x 78" high x 21" deep.

Weight: 47,000 lbs. with standard equipment.

Standard Motors: 75 HP grind; 10 HP chuck rotation, 2 HP head traverse, 35 lb/ft torque table traverse; 1/3 HP feed.

EQUIPMENT & FEATURES
Dresser.

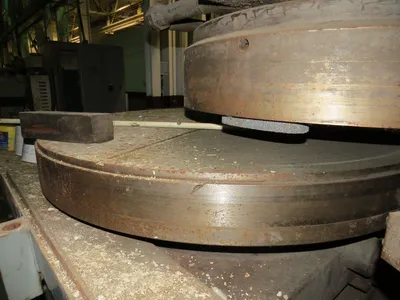

36" Segmented Chuck.
75 HP Spindle Motor.
27" Vertical range.
Bijur lube.
Stand alone electrical panel.
72” Swing inside guards.
10,000 lbs. work load.
Wet base machine.

Specifications are deemed accurate, however, subject to verification or prior sale.
