Used 1967 BLANCHARD 22K-42 | GRINDERS, SURFACE, ROTARY TYPE - VERTICAL

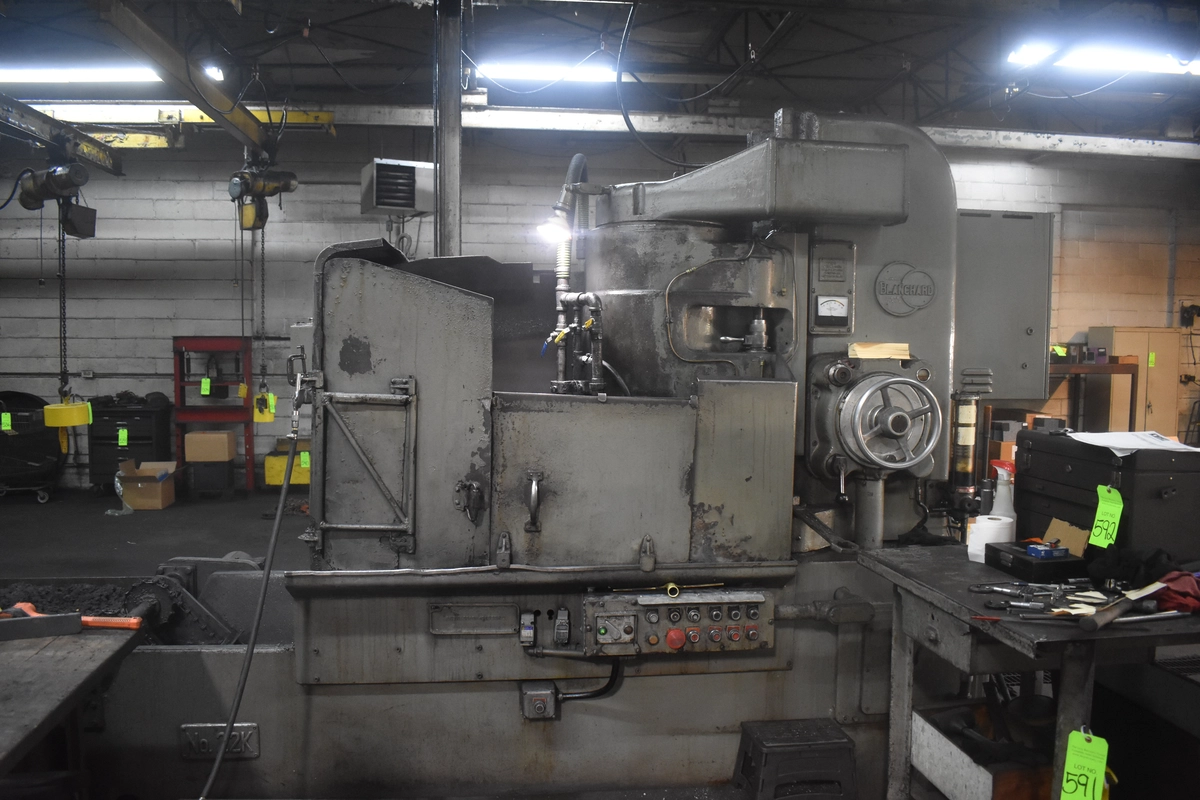

                                                                                                      #22K-42 BLANCHARD EXTENDED VERTICAL
                                                                                                         WET BASE ROTARY SURFACE GRINDER

                                                                                                                S/N 12373        Year:  1967

STANDARD SPECIFICATIONS

RANGE
48" Swing diameter x 24" high over 42" diameter chuck with new segments.

WORKTABLE
One piece 42" diameter magnetic chuck.  1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.

WHEEL
50 H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M. on 50 cycles.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.

FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"

WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds

EQUIPMENT AND FEATURES
42" One piece magnetic chuck.
50 H.P. 220/440 volt.
Wheel dresser.
Load meter.
Guards.
Wet base.
24” Vertical.
5-Segment chuck.
Wet base W/ drag out system.

Specifications are deemed accurate, however, subject to verification or prior sale.
