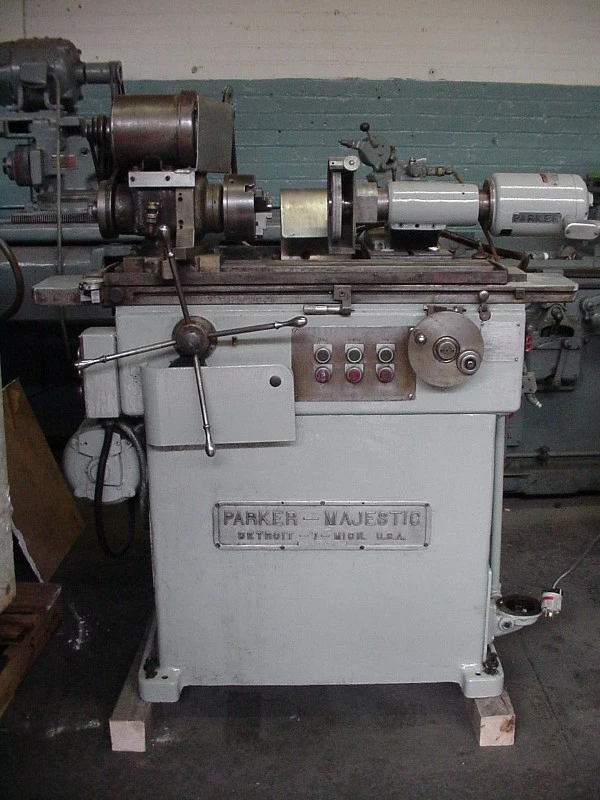

10 x 24 MODEL "B" PARKER-MAJESTIC EXTERNAL GRINDER

10 x 24 MODEL B PARKER-MAJESTIC EXTERNAL GRINDER
S/N 1272-51Year: 1951

STANDARD SPECIFICATIONS
Swing over table…………………………………………………….. 10
Table travel(power-feed)………………………………………….… 24
Speeds (4) of table travel(in./min.)…………………………….….… 6, 12, 18 24
Table travel with reciprocate…………………………………….….. 0 to 3
Reciprocatespeeds to table(reversals/min.)…………………..…… 15, 30, 45 60
Angle setting of table(maximum)…………………………………... 5
Capacity from chuck to table end.………………………………….... 24
Swivel of work head……………………………………………….… 90
Hole through work head shaft…………………………………….… 13/16
Graduations of cross slide hand wheel…………………………....… .001
Graduations of hand wheel vernier dial……………………………... .0001
Center of work head to floor……………………………………....… 46
Capacity of coolant tank…………………………………………...... 12 gal.
Nose threads of grinding spindle and/or adaptor………………….… L.H.
Floor area……………………………………………………………. 32 x 108
Net weight……………………………………………………….…... 2250
Shipping weight……………………………………………..….….... 2550
Grinding wheel……………………………………………… 8 O.D. x 3 I.D. x 1 Face

EQUIPPED WITH
6 3-Jaw manual chuck.
Table reciprocator.
Cross feed.
Power feed engagement knob and stop.
Hand feed stop.
1/2 H.P. 3370 R.P.M. external grinding spindle.

Specifications are deemed accurate, however, subject to verification or prior sale.
