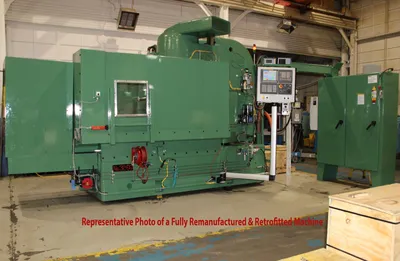

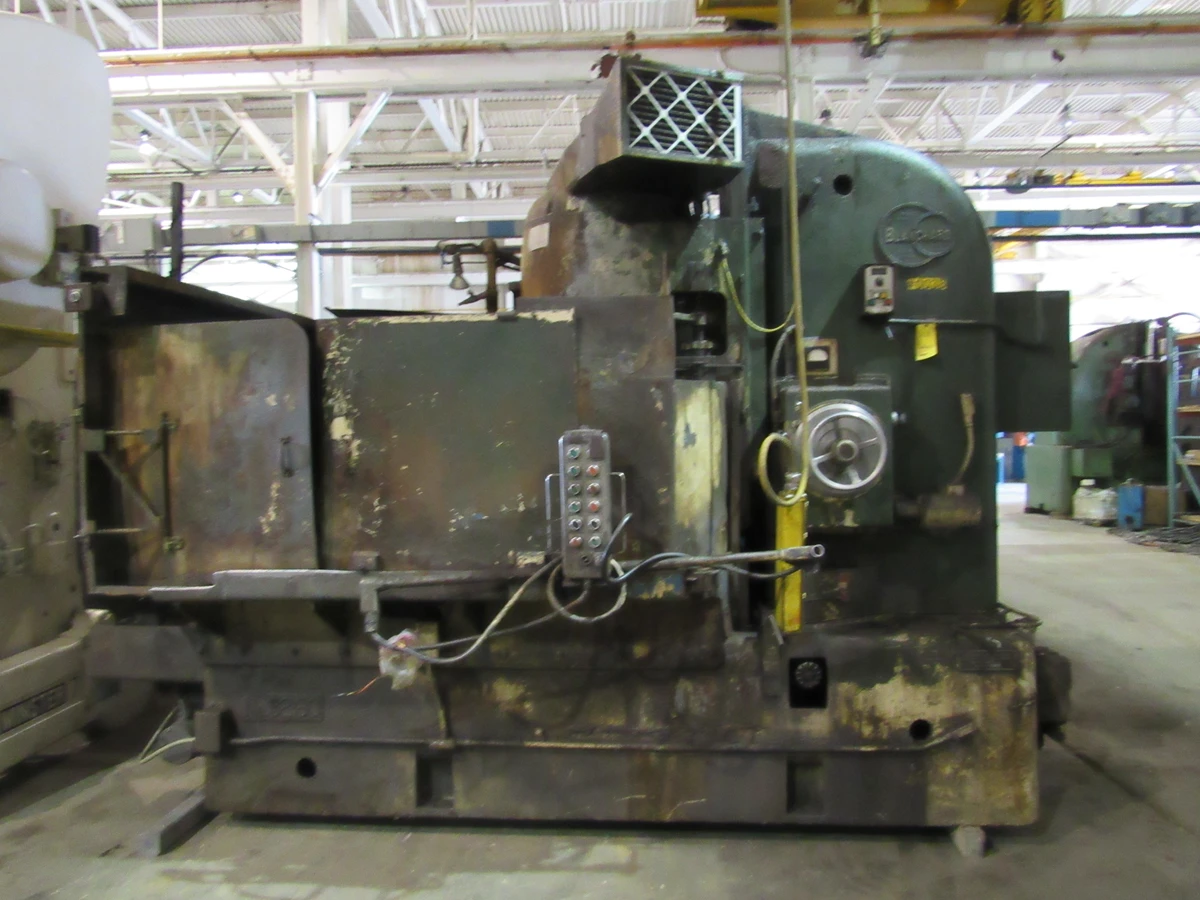

BLANCHARD 32-60 13210

32-60 BLANCHARD ROTARY SURFACE GRINDER

S/N 13210 Year: 1969

STANDARD SPECIFICATIONS

Range
66" Swing; 30" vertical range over chuck with new wheel segments.

KVA Req’d: 100 HP – 95 KVA.

Work Table: (Blanchard one piece steel magnetic chuck) 60" diameter magnetic chuck, maximum unbalanced work load to 6,000 lbs.

Feed: Vertical down feed by hand or power. Power feed variable from .004" to .080" per minute.

Coolant Supply: External coolant supply required 150 GPM approximate flow rate.

Floor Space: 186" x 84" x 134" maximum height, plus electric panel 63’ wide x 78" high x 21" deep.

Weight: 34,000 lbs. with standard equipment.

Standard Motors: 100 HP grind; 10 HP chuck rotation, 900 HP head traverse, 900RPM torque table traverse; 1/3 HP feed.

EQUIPMENT & FEATURES
Dresser.
32" Cortland Segmented Chuck.
100 HP Spindle Motor.
30" Vertical range.
Bijur lube.
Stand alone electrical panel.
Dry base machine.
Load Meter.
All Guards.
Cast iron base.

Specifications are deemed accurate, however, subject to verification or prior sale.
