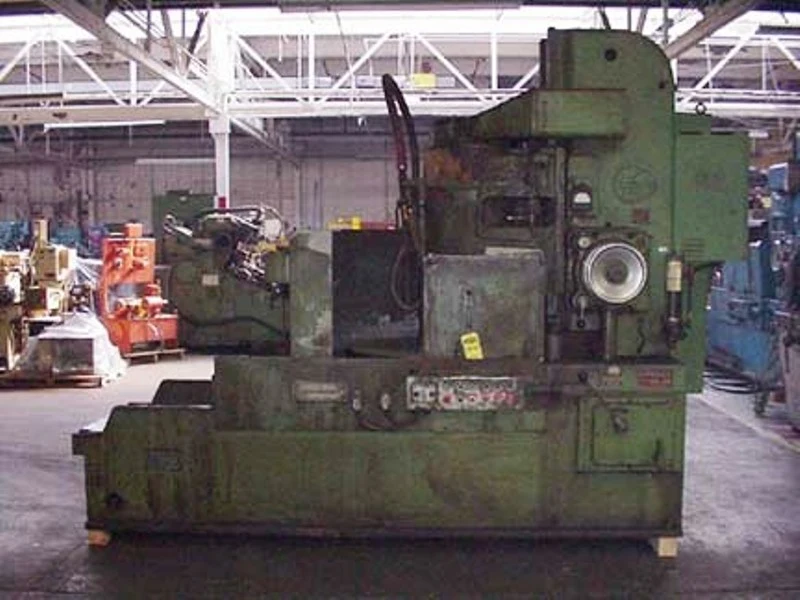

20D-36 BLANCHARD VERTICAL SURFACE GRINDER (Extended Vertical Range)

20D-36 BLANCHARD VERTICAL SURFACE GRINDER
Extended Vertical Range
Wet Base

S/N 14130 Year: 1973

STANDARD SPECIFICATIONS

Range
38" diameter x 30" high over 36" diameter chuck with new wheel.

KVA Requirements
30 HP – 43 KVA

Work Table
One piece 36" diameter magnetic chuck, 792 watts, 115 volts or 230 volts, D.C. 3,000 pounds maximum load.

Wheels and/or Segments
20" x 5" x 16 1/2" cylinder wheel, or four CD-20 chuck segments, each 11 1/4" x 2 1/4" x 6" long.

Speeds
Wheel: 720 RPM on 60 cycles, 750 RPM.
Chuck: 6, 9, 12, 18, 25, and 33 RPM (on 60 cycles).
Other motors: Chuck rotation – 1200 RPM (60 cycles), table traverse and head raising – 900 RPM.

Base
Wet – 125 gallon tank in base.

Floor Space and Height
11’ 11" x 8’ 4" maximum height: 9’ 1".

Weight
With standard equipment: 12,750 pounds.

Specifications are deemed accurate, however, subject to verification or prior sale.
