MYFORD MG12 HPM 152327

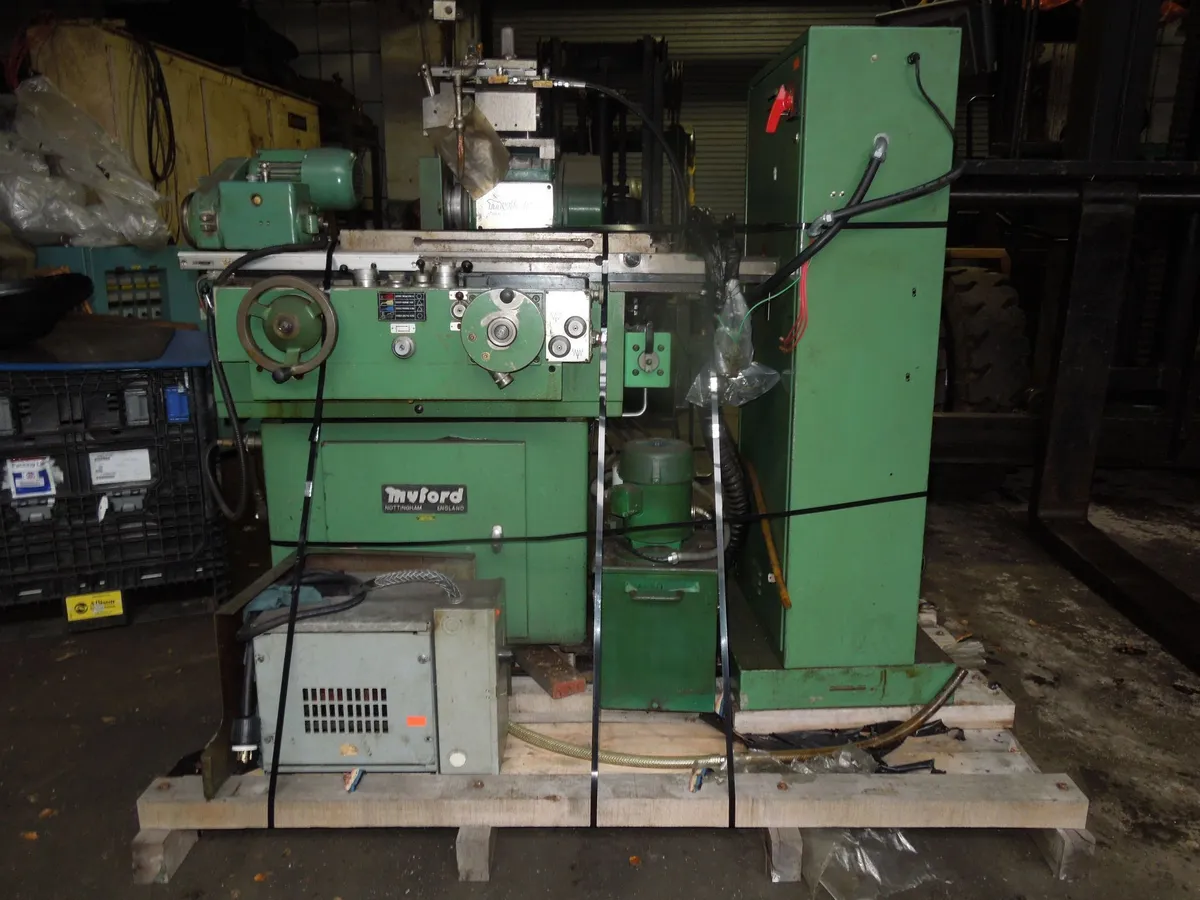

MYFORD MG12 HPM PLAIN CYLINDRICAL GRINDER

S/N: 152327

SPECIFICATIONS:
Grinding Diameter – Maximum…………………………………………3″

Table:
Swing – Maximum………………………………………………………5″
Travel – Maximum………………………………………………………12-3/4″
Distance Between Centers……………………………………………….12″
Swivels Either Way……………………………………………………...10 Deg
Travel pre Revolution of Headwheel…………………………………….0.44″
Hydaulic Traverse………………………………………………………..0-120″ IPM
Dwell – Carriage…………………………………………………………0 – 8 Sec

Wheelhead:
Total Travel by Feedscrew……………………………………………… 3-7/8″
Hydraulic Rapid Retraction………………………………………………1-1/8″
Infeed per Revolution of Headwheel……………………………………..0.025″
Graduation (Infeed)……………………………………………………….0.0001″
Fine Feed to Dead Stop…………………………………………………...0.000025″
Automatic Infeed Rate……………………………………………………0.0001″ -.001″
Grinding Wheel – Standard………………………………………………12″ x 1.5″ x 5″
Grinding Wheel – Recessed……………………………………………...10″ x 1″ x 3″
Wheel Spindle Speeds (2)………………………………………………...2,200/2,500 RPM
Motor……………………………………………………………………...2 HP

Workhead:
Speeds (12)………………………………………………………………..75 – 780 RPM
Capacity thru Standard Draw Tube……………………………………….3/4″
Collet Capacity – Maximum……………………………………………....3/4″
Motor………………………………………………………………………1/4 HP
Dimensions – Catalog……………………………………………52″(L-R) x 55″(F-B) x 58″(H)
Weight – Catalog…………………………………………………………..2,000 Lbs.

EQUIPPED WITH:
Automatic Plunge and Traverse Grinding Cycles
Plunge Grinding
Traverse Grinding
Visual Indication of Feed
Spark-Out
Handwheel Collet Chuck
Worklight
Table Type Wheel Dresser
Automatic Lubrication System
Coolant System with Coolant Filtration System

Specifications are deemed accurate, however, subject to verification or prior sale.
