20CK-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

20CK-36 BLANCHARD HIGH POWERED VERTICAL
ROTARY SURFACE GRINDER
S/N 17-28-198 Year: 1971

STANDARD SPECIFICATIONS

RANGE
36diameter x 30 high over 36 chuck with new cylinder wheel.

WORKTABLE
Blanchard one-piece steel magnetic chuck, 36 diameter with 5/8 pole spacing. Chuck has 2 center hole and 3/8 – 16 tapped holes, 16 holes in 30 chuck and 19 holes in 36chuck. For chuck current see below. Maximum weight of work load, 8,000 lbs.

WHEEL
20x 5 x 15 cylinder or sectored (both wire banded).

SPEEDS
Wheel: 720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck: 6, 9, 12, 18, 25, 33 R.P.M.
(On 50 cycles chuck speeds are 5/6 of these).

FEED
Vertical down feed of wheel by hand or power.
Power feed: On 60 cycles approximately .004to .080, and on 50 cycles approximately
.003 to .066per minute with accurate automatic stop.Maximum distance
of down feed before stop operates is one turn of dial, .100.Wheel head has
rapid power rising and lowering, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2 discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1 pipes.

CURRENT FOR MAGNETIC CHUCK
36diameter: 110 volts, D.C. 7.2 amps, 792 watts
220 volts, D.C. 3.5 amps, 792 watts

FLOOR SPACE HEIGHT
Length 9’ 3, width 4’ 11 including control cabinet.
Maximum height 7’ 7, minimum 6’ 9.Height of chuck from floor 35.

WEIGHT
15,000 lbs.
EQUIPMENT FEATURES
36 Blanchard one piece steel magnetic chuck, near new life.
50 H.P. /37 KW wheel head motor.
Automatic cycle feature.
Coolant and drag out conveyor in base.
Size control caliper.
Extended vertical range.
Load meter.
Wheel dresser.
Trabon lubrication.
Water guards.
Freestanding electrical panel.

Specifications are deemed accurate, however, subject to verification or prior sale.

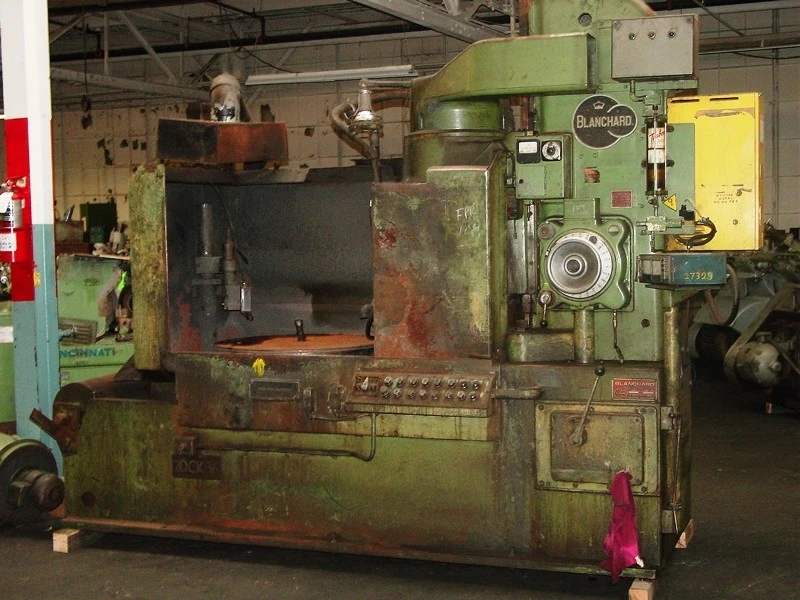

20-36 BLANCHARD ROTARY SURFACE GRINDER

S/N 12177 Year:1967

STANDARD CATALOG SPECIFICATIONS

WORK CLEARANCE
Swing clearance is 38diameter inside the water guards. Vertical height (range) is 18 between the top surface of the 36 dia. chuck and the grinding surface of a new grinding wheel in its raised position.

POWER REQUIREMENTS FOR COMPLETEMACHINE
30 H.P. wheel motor: 55 Kva

WORK TABLE
Blanchard magnetic chuck, 36dia. with 5/8 radial spacing between concentric poles. Chuck has a 2 dia. center hole. Chuck uses direct current; voltages 115 or 230(230 preferred), and required 792 watts supplied by a Neutrofier when ordered. Maximum weight of workload is 3,000pounds.

WHEEL HOLDER
Cylinder wheel holder for 20x 5 x 16 1/2 cylinder wheel; or 20 Courtland type segment chuck (when ordered) which holds four CD‑18L segments.

WHEEL SPEEDS
720 R.P.M. (at 60 cps)
750 R.P.M. (at 50 cps)

CHUCK SPEEDS
6, 9, 12, 18, 25, and 33 R.P.M.; driven (at 60 cps) by a 2 H.P., 12000 R.P.M. motor.

AUXILIARY MOTORS
20 lb. ft., 900 R.P.M. (at 60cps) torque motors for table traverse and for raising and lowering the wheel head.

FEED
Vertical down feed of the wheel is either by hand or by power. The power feed is variable between 0.004 and 0.080 per minute. An accurate, automatic down feed stop is provided. Maximum down feed to the stop is provided. Maximum down feed to the stop is 0.098, 0.298 is available on special order. The wheel head can be rapidly raised and lowered by power.

COOLANT SUPPLY
Wet base capacity of20‑36 and 20K‑36 models is 125 gallons.

STANDARD EQUIPMENT
Blanchard 36 dia. one‑piece steel, magnetic chuck; water guards; 20 cylinder wheel holder; jog pushbutton for table rotation; work light over table; quick acting coolant valves and wash hose; outside chuck ring; wheel dresser unit built into head. A 30 H.P. wheel motor built into head; a 2 H.P. chuck rotation motor; two 20 lb. ft. torque motors, one for table traverse and one for raising and lowering the wheel head.Reduced voltage push button controls.Steel control panel cabinet at rear of machine containing reduced voltage starters for wheel motor (Star connected for starting and plugging, Delta connected for running), line starters for small motors, thermal overload protection for all motors ammeter wired into wheel motor circuit; pilot lamp for
chuck. Hardened steel base ways with automatic lubrication.
Operator's manual is included.

FLOOR SPACE AND HEIGHT
20‑36 ‑ Length 11 feet 5 in., width 5 ft. 7 in., including control cabinet; minimum height 7 feet 11 inc.,maximum height
(12 vertical range) 8 ft. 4in. Height of chuck surface from the floor is 36 in. Weight 12,500 lbs.

PRIVATE EQUIPMENT FEATUREStc� \l 1 EQUIPMENT FEATURES
36Magnetic chuck.
20 Segmented grinding wheel.
18 Vertical travel.
Chuck jog.
Neutrofier/Rectifier.
Manual pull Trabon lube system.
Manual dresser.
Load monitor.
Internal coolant.
40 HP Spindle motor.
4 Piece 20” Segmented wheel.

Specifications are deemed accurate, however, subject to verification or prior sale.

All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
