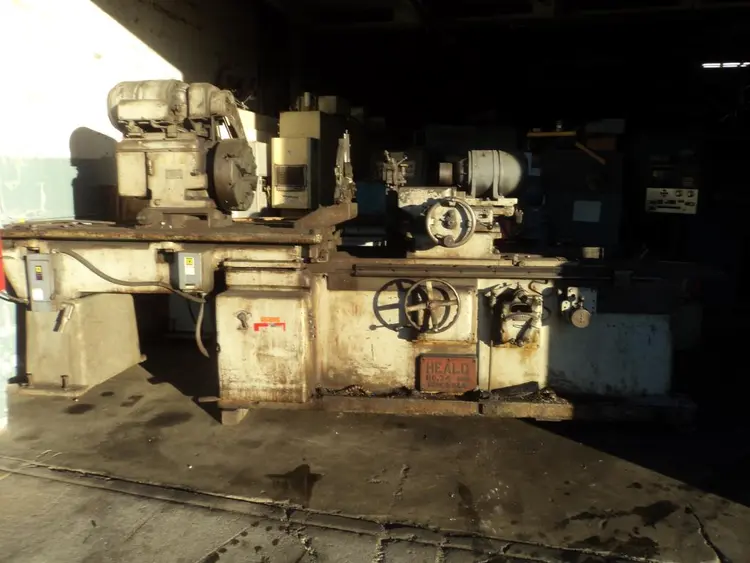

74 HEALD INTERNAL GRINDER (EXTENDED BRIDGE)

74 HEALD INTERNAL GRINDER (EXTENDED BRIDGE)

S/N 18114 YEAR: 1970

STANDARD SPECIFICATIONS

CAPACITIES:
Swing over table (straight work)........................ 26
Maximum diameter of hole that can be ground............. 20
Grinding stroke......................................... 62
Taper swivel on work head.......................... 60� inc.angle
Center of chuck spindle from floor...................... 50
Diameter of work head spindle flange.................... 12
Hole through work head spindle.......................... 1 11/16

SPEEDS ANDFEEDS
Table speeds unlimited between............... 0 to 18 ft. per min
Work head speeds adjustable from............. a-c 41-62-82-123 RPM
Cross feed dial graduation represents................... .001
Power feed adjustment........................ 1 to 6 teeth
Each ratchet tooth with coarse gears (standard)......... .0002
Each ratchet tooth with fine gears (optional)........... .000128

DRIVES
Pump motor............................... 2 HP, ac - 1200 RPM
Work head motor..1-1 1/2-2-3 Tapered HP, ac-600-900-1200-1800 RPM
Wheel head motor......................... 7 1/2 HP, ac-3600 RPM

EQUIPMENT AND FEATURES
All trip dogs.
Hydraulic table.
All pick feeds.
Single point dresser.
18” 4 Jaw chuck.
62” Grind stroke.
Manual hydraulic table travel.
Swivel bed.
72” Extended bed.
Coolant tank pump.
Center rest.
40” table travel.
