KOYO KVD 450C 19495/96/12

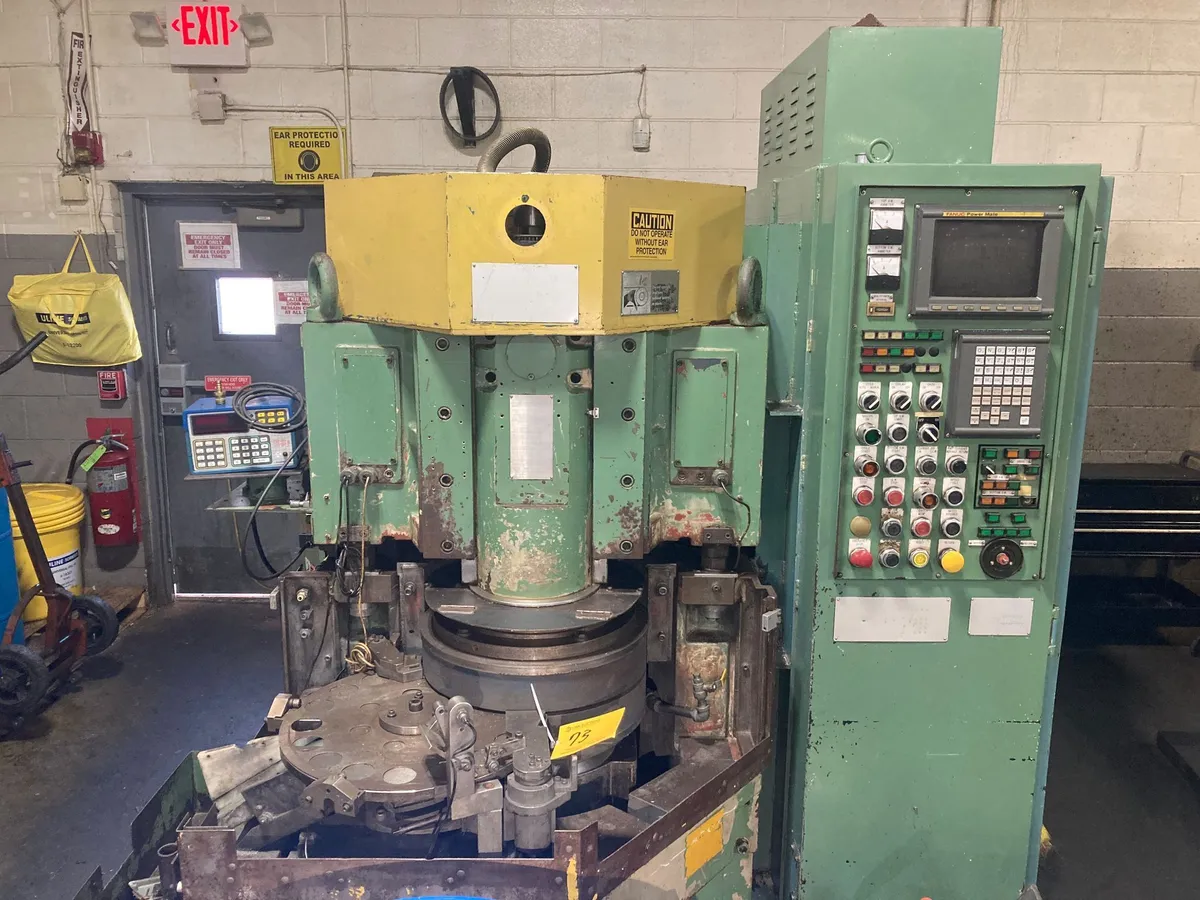

KOYO KVD-450C CNC VERTICAL DOUBLE DISC GRINDER

S/N 19495/96/12 YEAR: 1996

STANDARD CATALOG SPECIFICATIONS
Grinding Capacity Outer Diameter...............4”
Grinding Capacity Width........................2”
Grinding Wheel OD x Thickness..................18”x 2”x 10”
Max Distance Between Wheels....................3”
Grinding Wheel Drive (Upper & Lower)...........15 HP
Carrier Disc Diameter..........................18”
Weight.........................................19,800 lbs.

EQUIPPED WITH
Controls for variable grinding speeds for the top & bottom grinding wheels.
Variable speed carrier.
Dresser arm advance & return speeds.
Marposs E3 gage.
Fanuc Power Mate controls.
Fanuc servo up & down.
480 Volts.
Attached panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
