SHIGYA GPA-20-50 20132

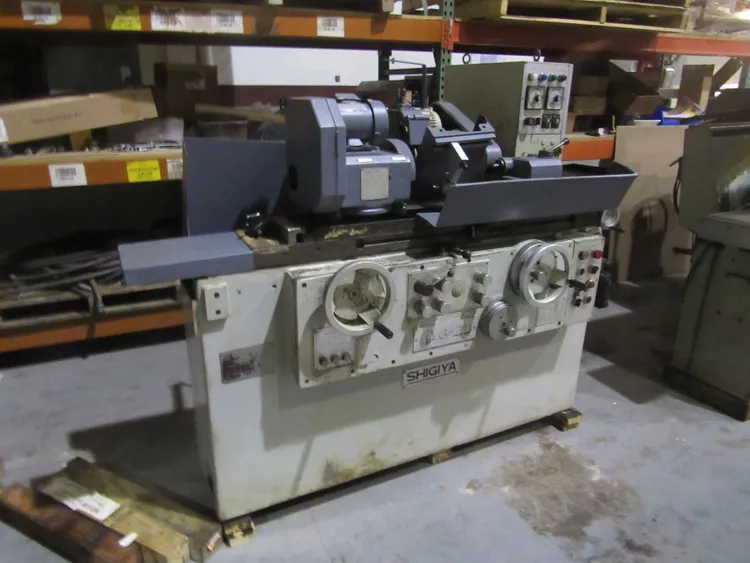

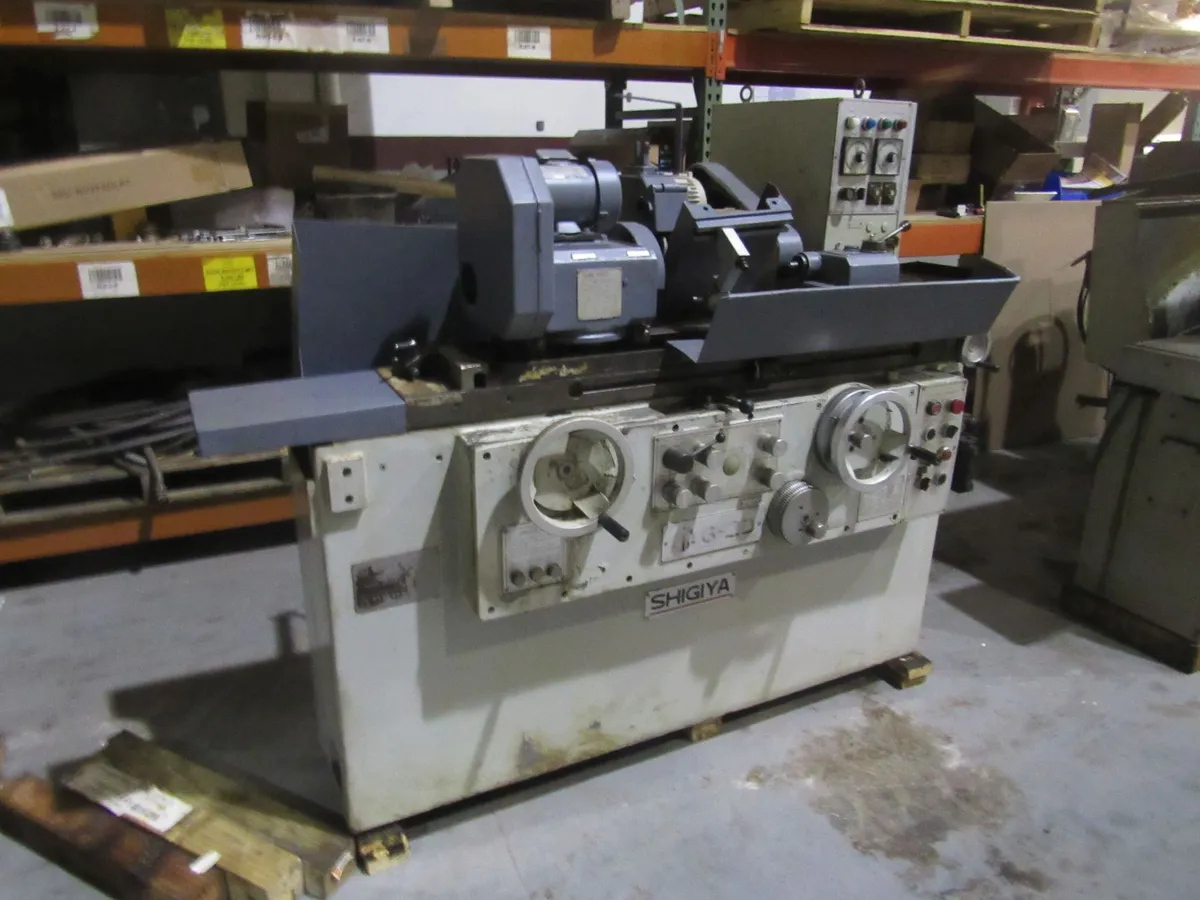

SHIGIYA GPA-20-50 CYLINDRICAL GRINDINGMACHINE

S/N 20132 Year: 1998

SPECIFICATIONS

CAPACITY
Swing Over Table.......................................... 8
Max Grinding Diameter................................. 8
Distance Between Centers............................. 20
Max Workpiece Mass………………………..44 LBS.

WHEELHEAD
Swivel Angle................................................. / - 30 Degrees
Wheel Size..................................................... 12 x 1” x 5”
Wheel Speed.................................................. 33m / sec
Total Travel.................................................... 7
Rapid Feed Travel.......................................... 1”

WORKHEAD
Work Spindle ................................................ Live Dead
Rotation Speed.............................................. 60 HZ
Center Hole Taper……………………………MT. No. 2

TAILSTOCK
Type………………………………………….Manual Lever
Spindle Stroke………………………………..1”
Center Hole Taper……………………………MT. No. 2

TABLE
Swivel Angle (C.C.W.)………………………9 Degrees
Swivel Angle (C.W.)…………………………4 Degrees
Manual Feed Amount (One Revolution)……..1”
MOTOR
Wheel Spindle………………………………...2.2 KW 4P
Work Spindle…………………………………0.2 KW 4P
Wheel Spindle Lubrication Pump…………….0.1 KW 4P
Hydraulic Pump………………………………0.4 KW 4P
Coolant Pump………………………………....0.1 KW 2P

TANK CAPACITY
Wheel Spindle Lubrication Oil Tank………….3 Gallons (ISO VG5)
Hydraulic Oil Tank……………………………9 Gallons (ISO VG68)
Coolant Tank………………………………….21 Gallons

EQUIPPED WITH
Hydraulic automatic wheel infeed.
Hydraulic rapid wheel infeed.
Hydraulic automatic table traverse.

Center Height From Floor…………………….43”

Weight…………………………………………3,527 LBS.

Specificationsare deemed accurate, however, subject to verification or prior sale.
