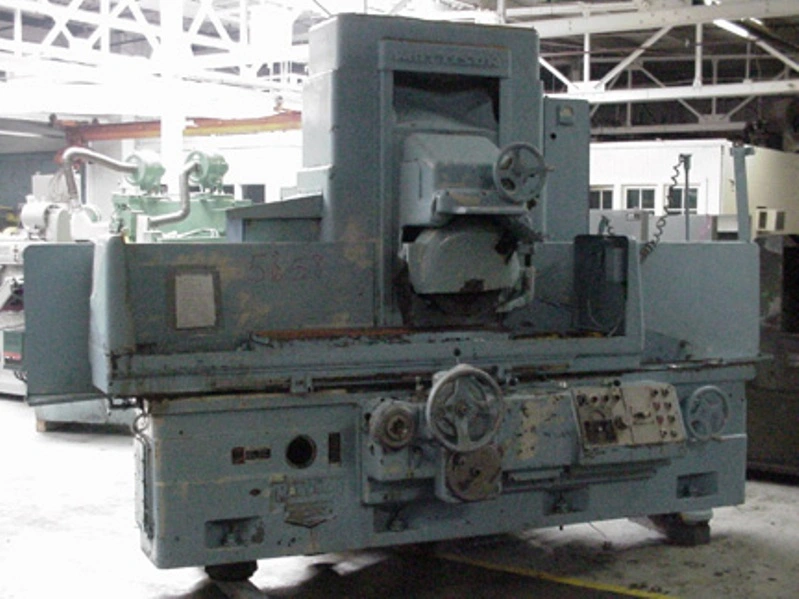

14 x 16 x 48 MATTISON HIGH-POWERED PRECISION SURFACE GRINDER

14" x 16" x 48" MATTISON HIGH-POWERED PRECISION SURFACE GRINDER

S/N 20218 Year: 1961

STANDARD SPECIFICATIONS
Box type column construction horizontal spindle.
16" Height under wheel.
14" x 48" Magnetic chuck.
Hydraulic vari speed table travel.
Power operated raising and lowering wheel head.
20" Diameter x 3" face grinding wheel.
3 HP Hydraulic pump motor.

MOTORS & CONTROLS
15 HP 220/440 Volts 3 60 Cycle 1160 RPM.
3 HP 220/440 Hydraulic pump motor.

EQUIPMENT & FEATURES
Box column design.
Travatrol power down feed.
Automatic down feed.
Power assist table positioning.
Automatic reset.
14" x 48" Magnetic chuck.
Hydraulic table travel.
Wheel guard dresser.
Splash guards.
Base leveling screws.
Coolant tank and pump.
15 HP Motor.

OVERALL DIMENSIONS
10’ 8" Left to right.
6’ 10" Front to back.
8’ 6" High.
Weight: 20,500 lbs.

* Machine is in very good operating condition. It can be seen
operating in our facility.

Specifications are deemed accurate, however, subject to verification of prior sale.
