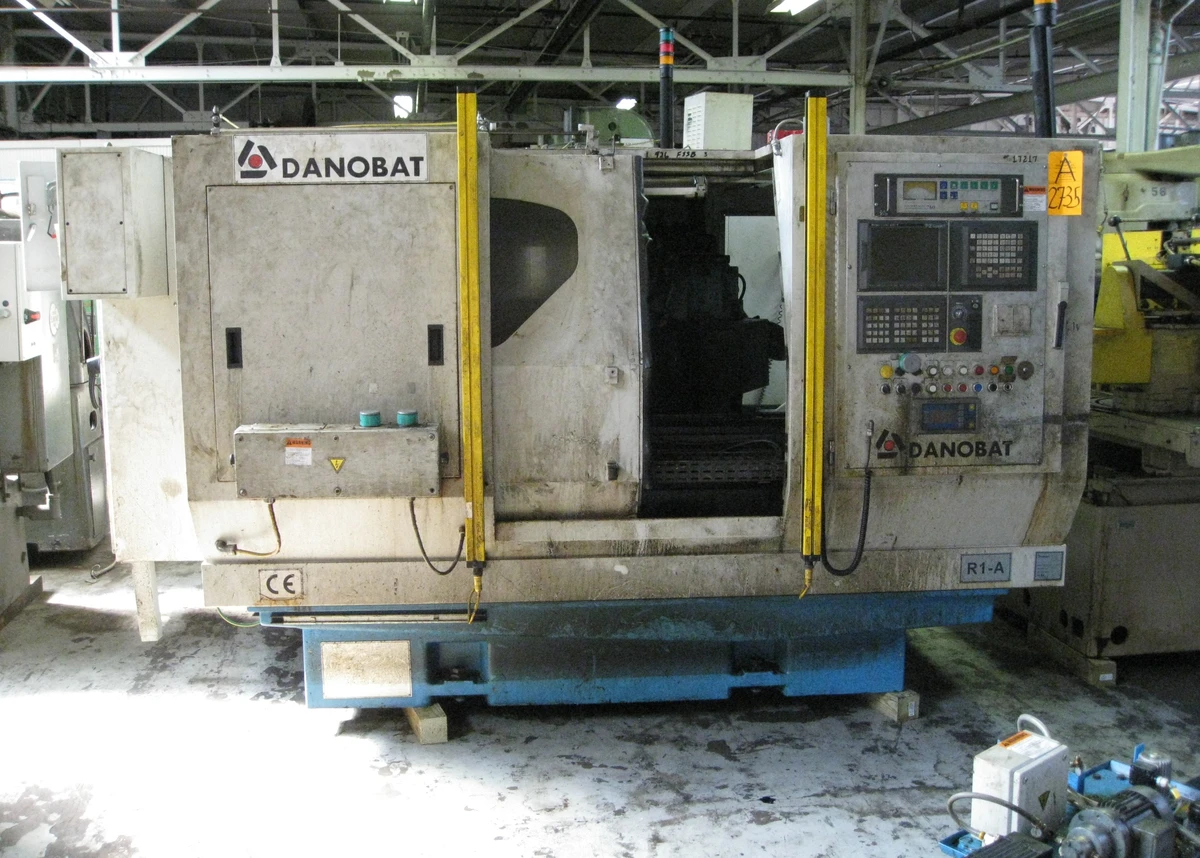

DANOBAT R1-A CNC ANGLE HEAD GRINDER

DANOBAT R1-A CNC ANGLE HEAD GRINDER
S/N 2179 Year: 2000

STANDARD SPECIFICATIONS

General
Maximum distance between centers………………………………. 39”
Centers height……………………………………………………… 6.8”
Swing over table…………………………………………………… 13.6”
Maximum weight admitted between centers………………………. 220 lbs.

Wheel Head Feed (X-Axis)
Total traverse travel………………………………………………. 14”
Maximum speed to program……………………………………… 590”/min
Minimum speed to program………………………………………. 0.000393”/min
Minimum increment to program…………………………………. 0.0000039”

Wheel
Maximum dimensions……………………………………. 24” x 3” x 12”
Cutting speed…………………………………………….. 50 m/s

Wheel Head Cross Fed (Z-Axis)
Table’s orientation………………………………………………… 43”
Maximum speed to program………………………………………. 590”/min
Minimum speed to program……………………………………….. 0.000393”/min
Minimum increment to program…………………………………… 0.00000393”
Work Head (Fix Spindle)
Drive speed………………………………………………………. 30 700 min
Center taper………………………………………………………. 5 C. Metrico
Motor……………………………………………………………… 12 N.m

Tanks
Bearings wheel head lubrication group…………………………. 45
Hydraulic group…………………………………………………. 60
Coolant tank…………………………………………………….. 500
Bearings lubrication tank weight……………………………….. 100 kg
Hydraulic tank weighs………………………………………….. 200 kg
Cooling tank weighs……………………………………………. 300 kg

Miscellaneous
Required for floor area…………………………………………. 4,1 x 5,6 x 1,9mm
Approximate net weight………………………………………… 6500 kg
Electrical cabinet weight……………………………………….. 300 kg
MOTORS
Wheel –
Siemens 1LA7163-4AA60-ZK91, 0020060-0490-0011
Power……………………………………………………………. 12.6 kw
Speed……………………………………………………………. 1760
Pressure / Frequency……………………………………………. 460/60

Hydraulic –
Siemens 1LA2073-4AB17, 9880023-0080-0092
Power…………………………………………………………… 0.37 kw
Speed…………………………………………………………… 1370
Pressure / Frequency…………………………………………… 400/50

Slide ways Lubrication –
Siemens, 1LA7080-4AA16, 0015650-0060-0022
Power………………………………………………………… 0.63 kw
Speed…………………………………………………………. 1695
Pressure / Frequency………………………………………….. 460/60

Coolant –
Grundfos, 90LA2-24FT115-C, 85804908
Power…………………………………………………………. 2.2 kw
Speed…………………………………………………………. 3500
Pressure / Frequency…………………………………………. 460/60
Rotociclon Carrier –
ABB, M2AA90L2, 027909P0116/011
Power……..…………………………………………………. 2.5 kw
Speed………………………………………………………… 3460
Pressure / Frequency………………………………………… 460/60

Trasvase Motor –
AJA, 145821
Power……………………………………………………….. 0.75 kw
Speed……………………………………………………….. 2850
Pressure / Frequency……………………………………….. 460/60

“X” Axe –
Fanuc, A06B-0126-B577/7000, C003C3507
Par (N.m)…………………………………………………… 6
Speed……………………………………………………….. 2000
Encoder i/v Heindenhain
Tacho-dynamo

“Z” Axe –
Fanuc, A06B-0126-B077/7000, C002C2767
Par (N.m)…………………………………………………… 6
Speed
Encoder i/v Heidenhain
Tacho-dynamo

Work Head –
Fanuc, A06B-0141-B077/7000, C003A3288
Par (N.m)…………………………………………………. 12
Speed
Encoder i/v Heindenhain
Tacho-dynamo
SPEED CONTROLLER
Wheel –
Danfoss, VLT5016, PTC20STRODLF00AD0C0, 015139C330

CONTROLLER
Screen – Fanuc, A02B-0247-B805, E00305907

Keyboard – Fanuc, A01B00236-C231, N00709 1999-07

Software – A0213-0236-C266, N1001 2000 02

OTHER EQUIPMENTS
G.E. Fanuc 210I-T Controls.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
