NORTON 6X30 CTU 23459

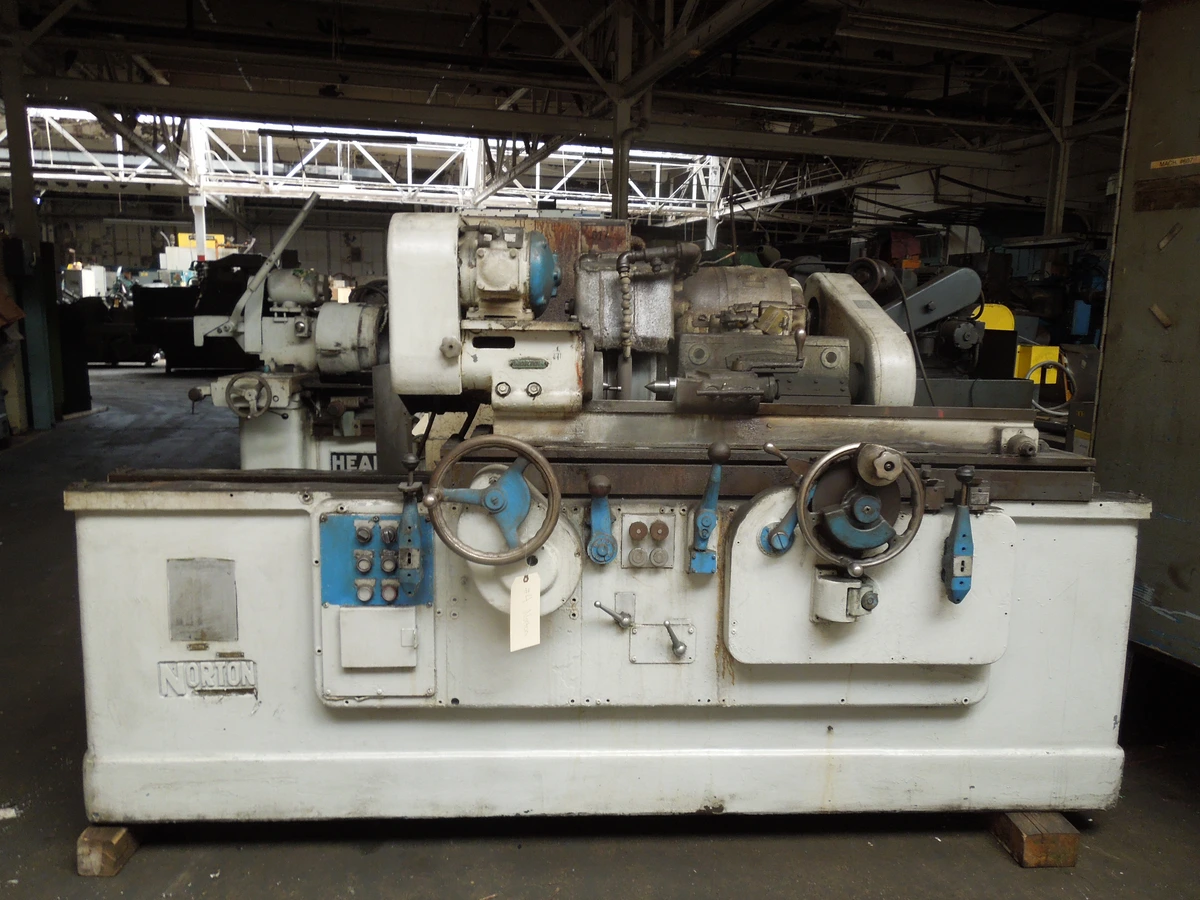

6 x 30 NORTON CTU PLAIN CYLINDRICAL GRINDER

S/N 23459 Year:1953

STANDARD CATALOG SPECIFICATIONS
PRIVATE tc� \l 1 Maximum diameter work ground with24\ wheel, 6\ grinding wheelsMaximum diameters and widths.................. 24 x 5 x 12
Coolant tank capacity......................... 32 gallons
Coolant pump capacity......................... 21 gallons
Hydraulic oil reservoir capacity.............. 32 gallons
Lubricating oil reservoir capacity............ 3 gallons
Swivel table adjustment (in. per ft. on dia.)
Machine length................................ 30
Machine taper................................. 3

MOTORS
Wheel drive..... 7 1/2 HP, 1800 RPM, constant speed AC
Work drive...... 1/2 HP, 1200 RPM, constant speed AC
or 1/2 HP, 690/2760 RPM, adjustable speed DC
Hydraulic and lubricating pump drive..... 3/4 HP, 1200 RPM
Constant speed AC
AC Motor speeds are for 60Cycle, for 50 Cycle AC Speeds
will be 1500 and 1000 RPM

TABLE SPEEDS
Range of speeds (in. per min.)................ 2 ‑ 240
Number of speeds.............................. Infinite
EQUIPPED WITH
Head stock.
Lever operated tail stock.
Hand hydraulic table travel.
Hydraulics.
Electrics.
Timers.
Coolant in base.
Plunge feed.
Pick feed.
Oscillating spindle.
Attached electrical.
5” Max wide wheel.

Net weight.................................... 6,600 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
