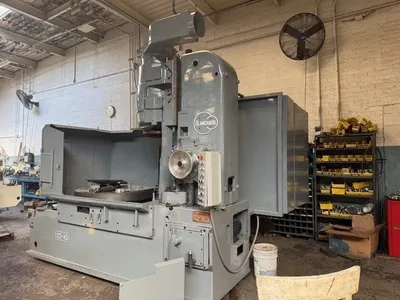

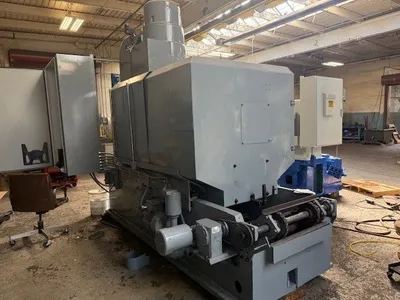

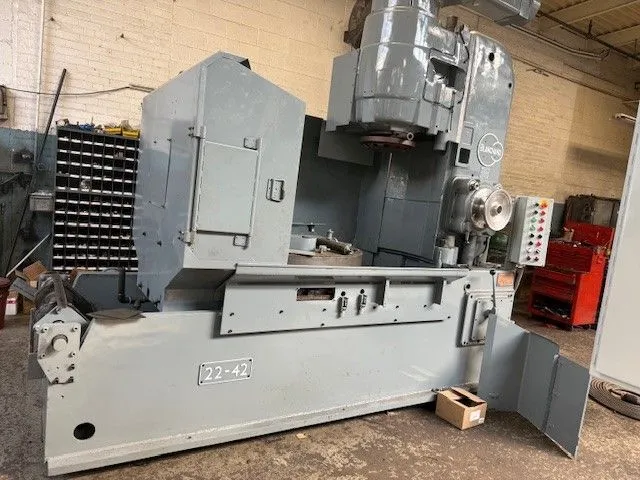

22-42 BLANCHARD HIGH COLUMN VERTICAL ROTARY SURFACE GRINDER

22-42 BLANCHARD HIGH COLUMN
VERTICAL ROTARY SURFACE GRINDER

S/N 24-3-279 Year: 1973

STANDARD CATALOG SPECIFICATIONS

RANGE
48 Diameter x 20 high over 42 chuck with new cylinder wheel - 11 high with Blanchard segment wheel.

WORKTABLE
PRIVATE Blanchard one-piece steel magnetic chuck, 42 diameter with 5/8 pole spacing. Chuck has 2 center hole. Max. chuck load is 3,000 lbs., 1200 watts required.tc� \l 1Blanchard one-piece steel magnetic chuck, 42\ diameter with5/8\ pole spacing.� Chuck has2\ center hole. Max. chuck load is 3,000 lbs., 1200 watts required.

WHEEL
22 x 5 x 15Cylinder or 22 Cortl and uses 4-CD-22L segmented 11 1/4 x 2 1/4 x 6 long sectored (both wire banded) or 22 Blanchard segment wheel.

SPEEDS
Wheel: 720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck: 5, 7, 10, 15, 20, 27 R.P.M.

FEED
Vertical down feed of wheel by hand or power. Power feed: On 60 cycles approximately .004 to .080per minute. Maximum distance of down feed before stop operates is one turn of dial, .098. Wheel head has rapid power rising and lowering, inter locked with feed.

WATER SUPPLY
External coolant tank and pump.

CURRENT FOR MAGNETIC CHUCK
42diameter: 110 volts, D.C. 7.2 amps, 792 watts
420 volts, D.C. 3.5 amps, 792 watts

FLOOR SPACE HEIGHT

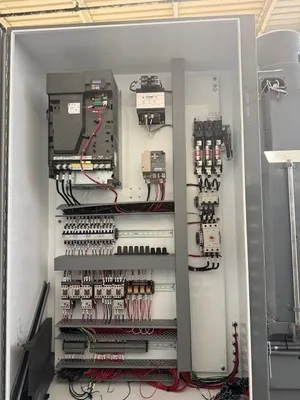

Length 9'3, width 4'11 including control cabinet.
PRIVATE Maximum height 9'1, minimum 6'9. Height of chuck
from floor 38.tc� \l 1Maximum height 9'1\, minimum 6'9\. Height of chuck from floor38\.

WEIGHT
14,250 lbs. approximate weight.

EQUIPMENT FEATURES
26 Vertical capacity.
42 Blanchard one piece steel magnetic chuck - 7/16life remaining.
40 H.P. Wheel head motor.
Sludge conveyor in base.
Water guards.
Neutrofier rectifier (late style).
Segment wheel mount - 5 segments.
Dresser.
7/16 of magnetic chuck life remaining.
Auto lubrication.
Load meter.

Specifications are deemed accurate, however, subject to verification or prior sale.
