NORTON 6x18 CTU 24094A

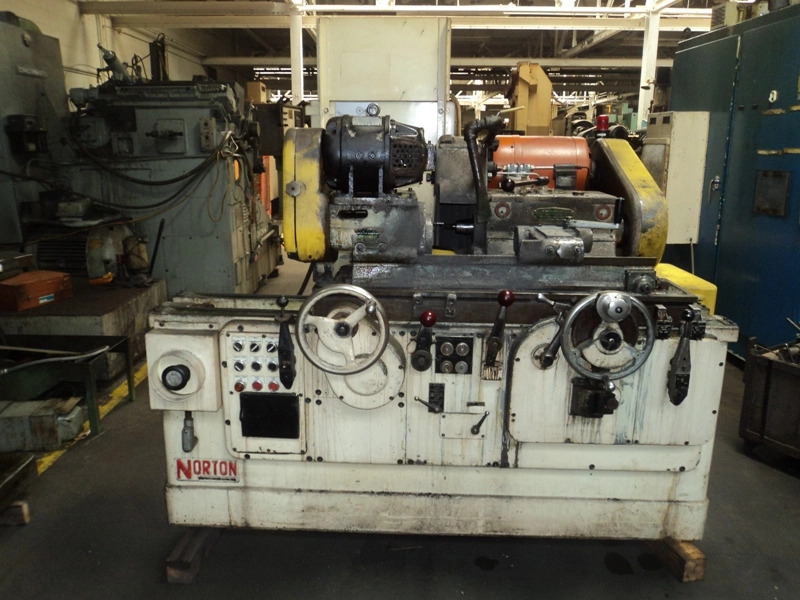

6 x 18 NORTON CTU PLAIN CYLINDRICAL GRINDER

S/N 24094

STANDARD CATALOG SPECIFICATIONS
Maximum swing..................................... 6 31/32
Maximum distance between centers.................. 18

TABLE TRAVERSE
Number of speeds.................................. Infinite
Table speed range, per min........................ 2 to 240

SWIVEL TABLE
Swivel table graduated‑degrees included
angle:............................................25 21 degrees
Swivel table graduated‑taper per foot............. 5 1/4 to 4 1/2

BASE WAYS
Width of flat way................................. 1 5/8
Width of V‑way(projected)........................ 1 5/8

WHEEL SLIDE WAYS
Width of flat way................................. 2 3/4
Width of V‑way(projected)........................ 2 3/4

OIL RESERVOIR CAPACITY
Standard inside hydraulic reservoir............... 20 gallons
Outside hydraulic reservoir....................... 30 gallons
Ways lubricant reservoir.......................... 1 1/3 gallons
WHEEL SPINDLE
Large bearing(LH)....................... 2 5/8 x 4 3/4
Small bearing(RH)....................... 2 3/8 x 4 3/4
Spindle speeds........................... 1620 and 1890 RPM
Reciprocation, when supplied............. 0 to 1/4

WEIGHT
Net weight including motor............... 9,000 lbs. approx.

EQUIPMENT FEATURES
7.5 HP Spindle motor.
Hydraulic table travel.
Plunge.
Head and tail stock.
24 x 3 Wheel.
Oscillation on spindle.
Dead center head stock.
Attached electrical.
Variable speed head stock.

Specifications are deemed accurate, however, subject to verification or prior sale.
