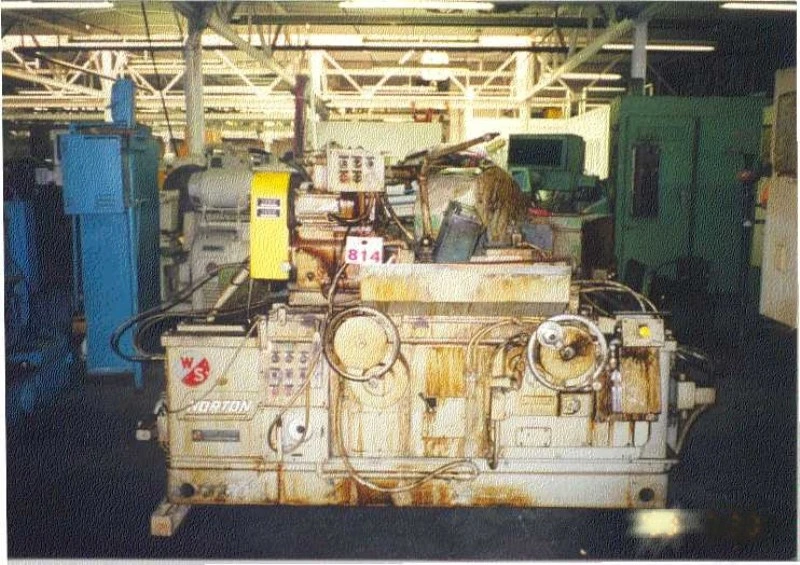

WARNER & SWASEY CV5 ANGLEHEAD PLAIN 28496

10 x 18 CV5 WARNER SWASEY NORTON
30 DEGREE ANGLE HEAD PLAIN CYLINDRICAL GRINDER

S/N 28496 Year: 1972

STANDARD CATALOG SPECIFICATIONS
Actual swing over table................................ 10
Distance between centers............................... 18
Hydraulic plunge infeed.
Wheel mount to accept 30 x12 bore x 8 wide.
Live dead combination workhead.
Hydraulic operated tail stock.
20 HP 480/3/50, 1445 RPM wheel head.
1 HP 400/3/50, Motorized head stockD.C. Drive.
Duplitru behind the wheel auto dresser 8 travel.
Auto plunge.

EQUIPPED WITH
Automatic behind the wheel Duplitru dresser.
Motor controls.
Push button controls.
Spark out with timer.
Load meter.
Hydraulic foot operated tailstock.
14 Jarno work head.
Plunge.
Set up for central coolant(exterior tank optional).
Microflex timer.

* Very good heavy duty machine!
