ARTER B-18 2949

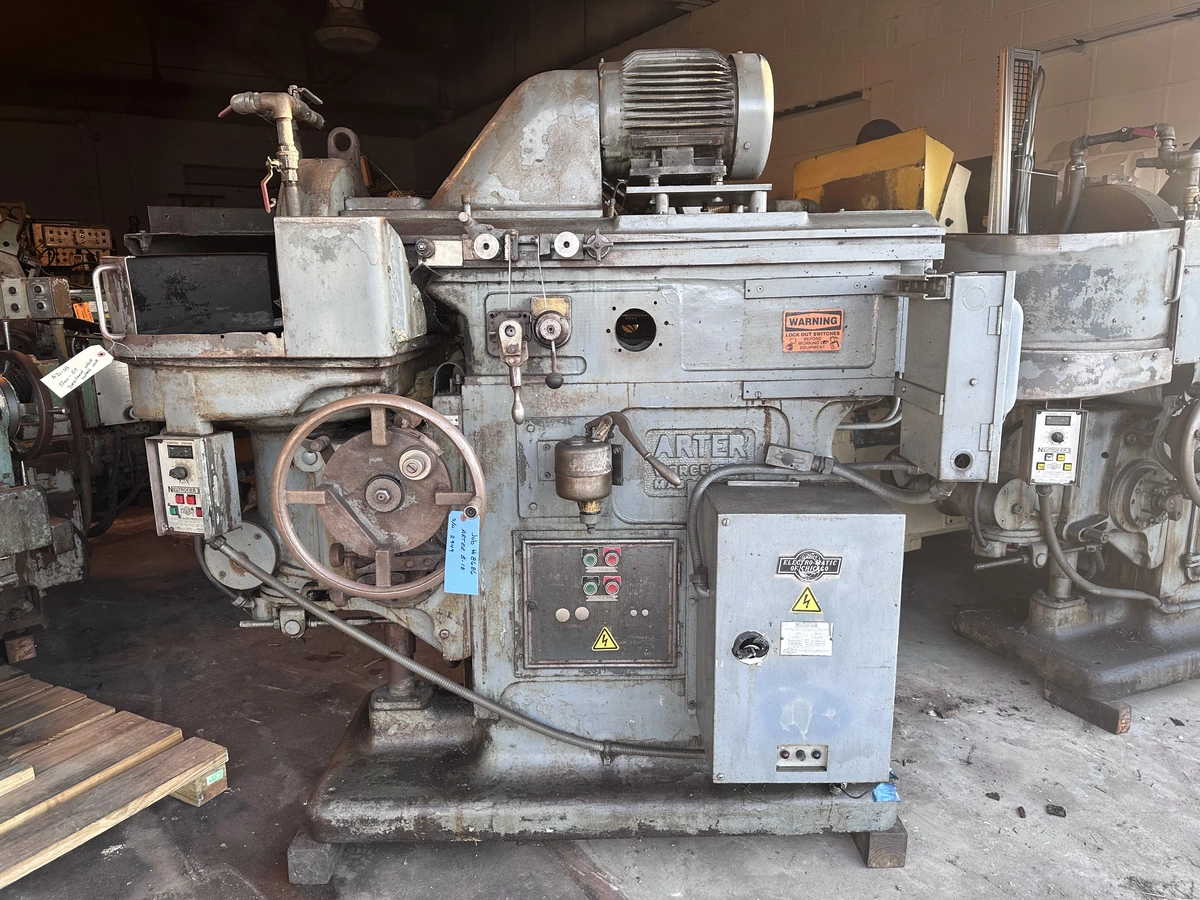

B-18 SUNDSTRAND/ARTER HORIZONTAL SURFACE GRINDER

S/N 2949

STANDARD SPECIFICATIONS
Diameter of magnetic chuck.........................17"
Swing inside guards................................26"
Vertical capacity at full wheel diameter...........9"
Grinding wheel capacity............................16" x 1 1/2" x 8"
Variable speed table table drive...................60 to 250
Table tilt to......................................20 degrees
Wheel spindle drive motor..........................10 H.P.
Hydraulic system motor.............................5 H.P.
OD Grinding Wheel..................................14” x 2” Wide

DIMENSIONS
Floor space required...............................84" x 60" x 70" H
Approximate weight.................................6,200 lbs.

EQUIPMENT & FEATURES
Electromatic chuck control.
1-Shot lube.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
