ARTER D-18 2990

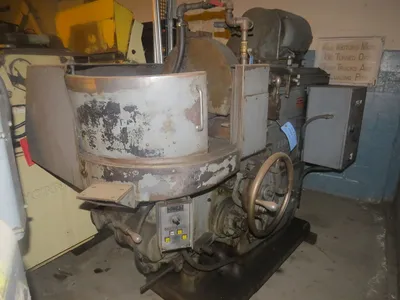

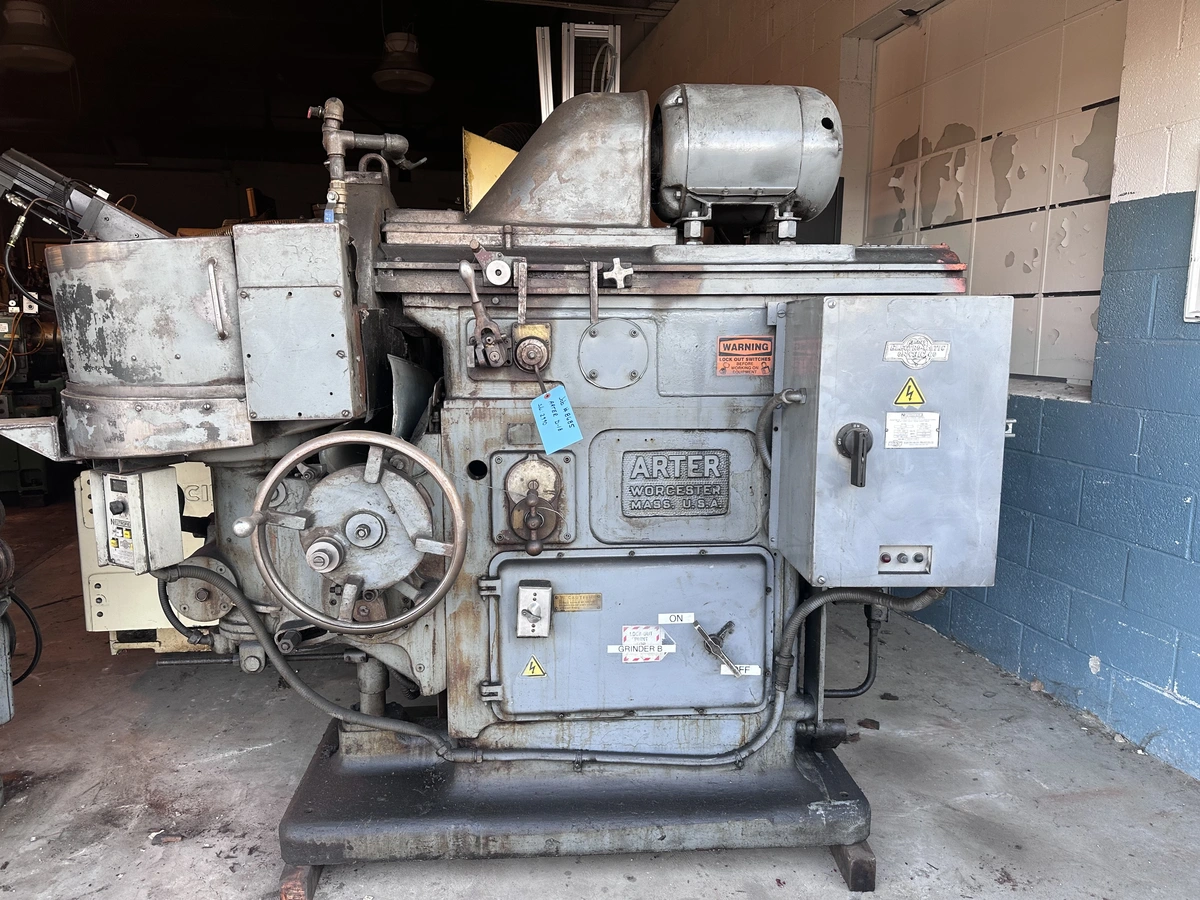

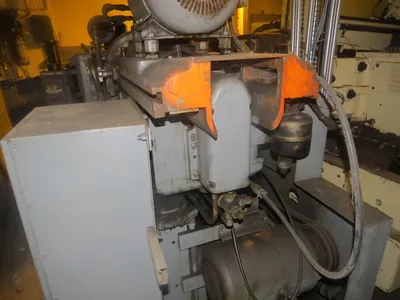

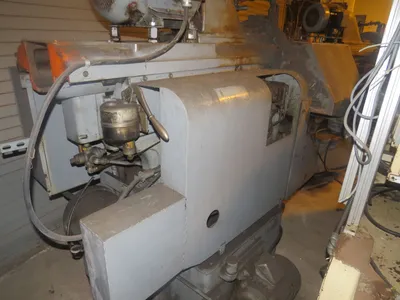

D-18 SUNDSTRAND/ARTER HORIZONTAL SURFACE GRINDER

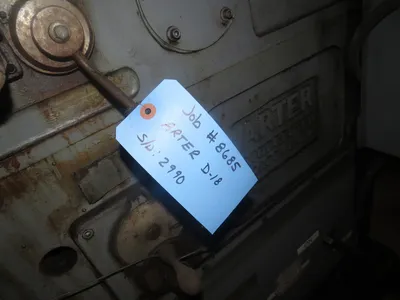

S/N 2990

STANDARD SPECIFICATIONS

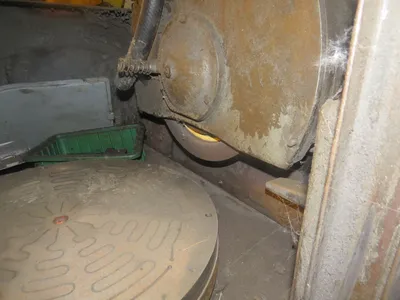

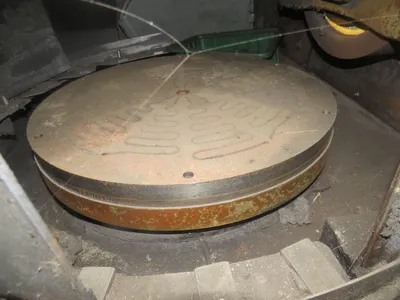

Diameter of magnetic chuck.........................17"
Swing inside guards................................26"
Vertical capacity at full wheel diameter...........9"
Grinding wheel capacity............................16" x 1 1/2" x 8"
Variable speed table table drive...................60 to 250
Table tilt to......................................20 degrees
Wheel spindle drive motor..........................10 H.P.
Hydraulic system motor.............................5 H.P.
Coolant motor......................................1/2 H.P.
OD Grinding Wheel..................................14” x 2” Wide
440 Volts 3 Phase

DIMENSIONS
Floor space required...............................84" x 60" x 70" H
Approximate weight.................................6,200 lbs.

EQUIPMENT & FEATURES
Neutrofier II chuck control.
Electromatic controls.
Attached electrical.
