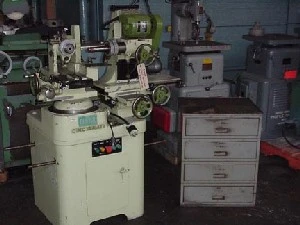

CINCINNATI MILACRON MONOSET CUTTER & TOOL GRINDER

CINCINNATI MILACRON MONOSET CUTTER TOOL GRINDER
PRIVATE Rebuilt 1993tc� \l 1 Rebuilt 1993
S/N 2D1C5P-4AYear: 1964

STANDARD SPECIFICATIONS

CAPACITY
Work head:
Swing over main slide, max. dia.................... 12
Collet work dia. - max.............................1.25
- min............................. 0.12
Lead generated by spiral lead mechanism min........ 1.81
Length between spindle nose and tail center max.... 6
Wheel head:
Grinding wheel dia. max............................4

RANGE
Work head:
Main slide travel..................................5.75
Offset slide travel, total.........................5.25
Front of center....................................3
Rear of center.....................................2.25
Work head angular adjustment:
Horizontal plane (turn table base).................. 235�
Vertical plane - above center...................... 40�
- below center...................... 40�
Wheel head:
Longitudinal slide travel..........................6
Vertical slide travel, total.......................9.50
Above center.......................................4.50
Below center.......................................5
Cross slide travel, total..........................7.50
Front of center....................................3
Rear of center.....................................4.50

SPINDLE SPEEDS
.0% 8% variation allowable.
Work head, one speed............................... 436 RPM
Wheel head, three speeds................ 4000, 5729 8000 RPM
(motor speed @3600 RPM)

MOTORS, ELECTRICS
Work head drive, AC - includes reverse............. .186 kw
Wheel head drive, AC............................... .373 kw

FLOOR SPACE
Area of base only.......................25 x 26
Area required for machine (including swivel and over travel movements)............................. 60 x 67
Height from floor to center of work head spindle... 47.72
Height, overall with wheel head raised............. 62.12
Net weight including motor controls... 691 kilograms
