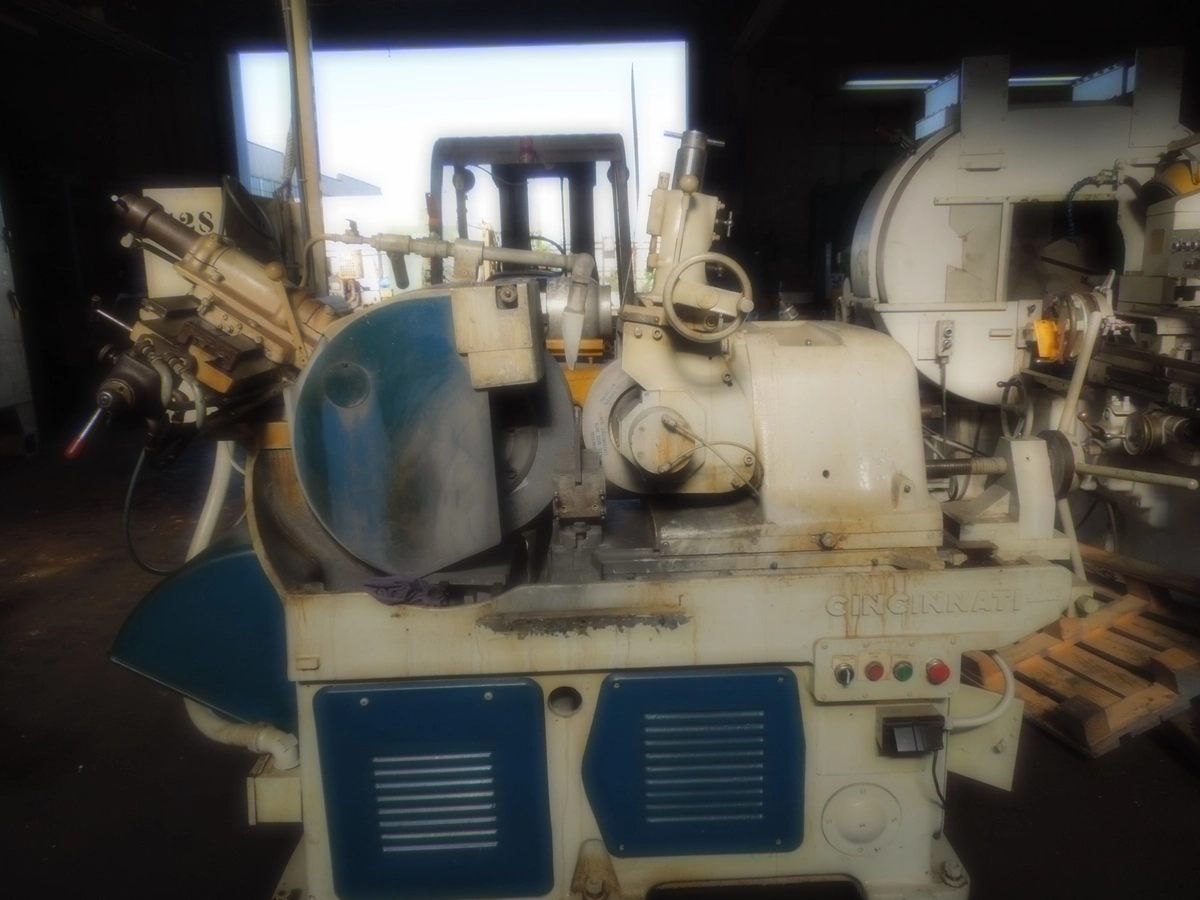

CINCINNATI #2 EA 2M2H1P-601

#2 EA CINCINNATICENTERLESS GRINDER
S/N 2M2H1P-601

STANDARD CATALOG SPECIFICATIONS

CAPACITY(Depending on which work rest is ordered ‑
not included in price)
Standard work rest....................... 1/16 to 3 1/2 diameter
Low thru‑feed work rest.................. 2 to 4 3/4 diameter
Bar work......(18' Long)................. 1/8 to 2 diameter

GRINDING WHEEL (Not supplied)
4,6, or 8 Width ‑ 12 Hole
20Maximum diameter
14Minimum diameter
Speed ‑1200 RPM

REGULATING WHEEL (Not supplied)
4,6, or 8 Width ‑ 5 Hole
14Maximum diameter
9Minimum diameter
Range of speeds ‑ 12 to 300 RPM

MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floorspace.............................. 53 x 86
Weight...................................7,000 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic profile truing on grinding wheel.
Manual profile truing on regulating wheel.
Grinding wheel mount.
Regulating wheel mount.
RWH Outboard support.
Variable speed reg spindle drive.

Specifications are deemed accurate, however, subject to verification or prior sale.
