CINCINNATI #2 OM 2M2H1Y-88

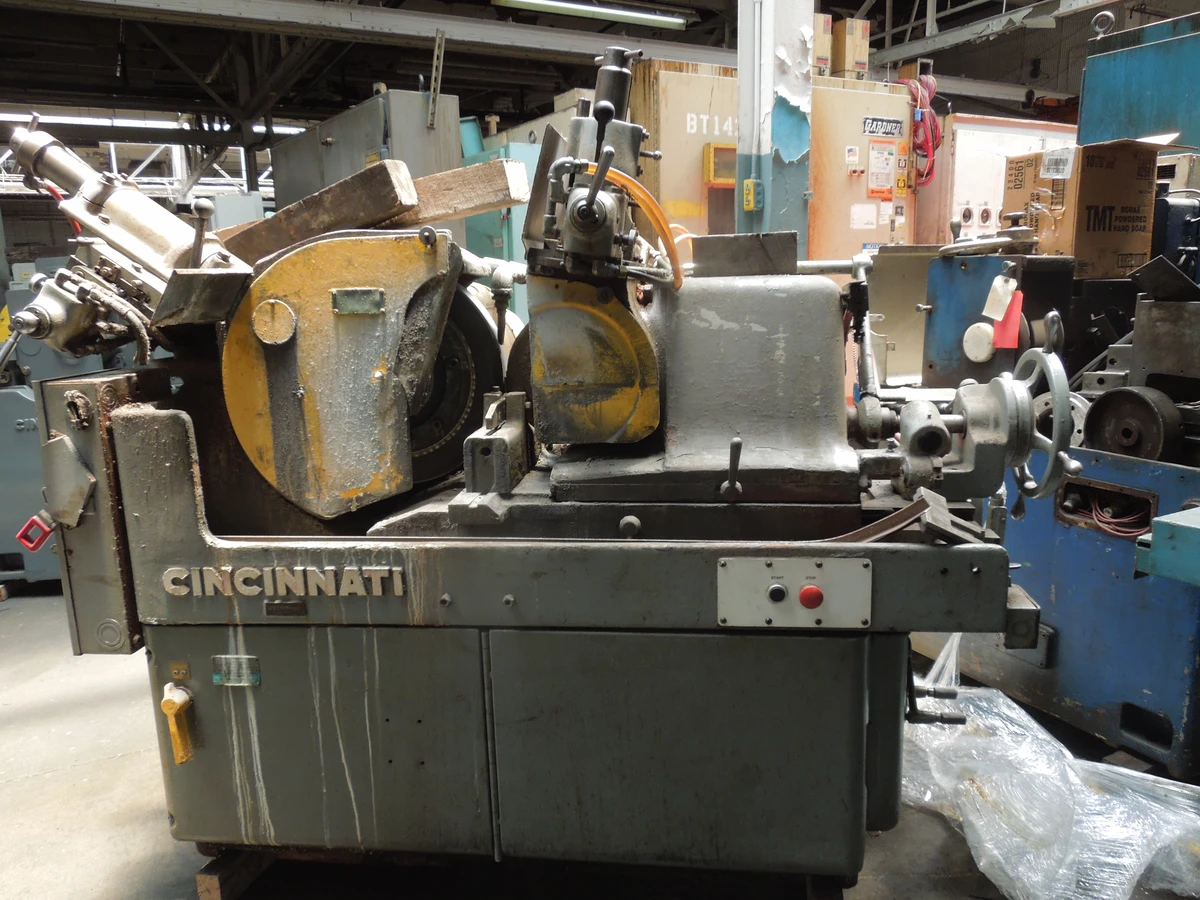

#2 OM CINCINNATICENTERLESS GRINDER
S/N 2M2H1Y-88 Year: 1951

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest......................1/16 to 3 1/2 dia.
Low thru feed workrest................. 2 to 4 3/4 dia.
Bar work................................ 1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 12
Maximum diameter...................................20
Minimum diameter................................... 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 5
Maximum diameter................................... 12
Minimum diameter...................................9

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid......................................1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................7,000 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic profile truing on grinding wheel.
Hand contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
4” Infeed with kicker.
Pull down lever.
Cincinnati lube.

Specifications are deemed accurate, however, subject to verification or prior sale.
