Used 1954 CINCINNATI #2 OM | GRINDERS, CENTERLESS

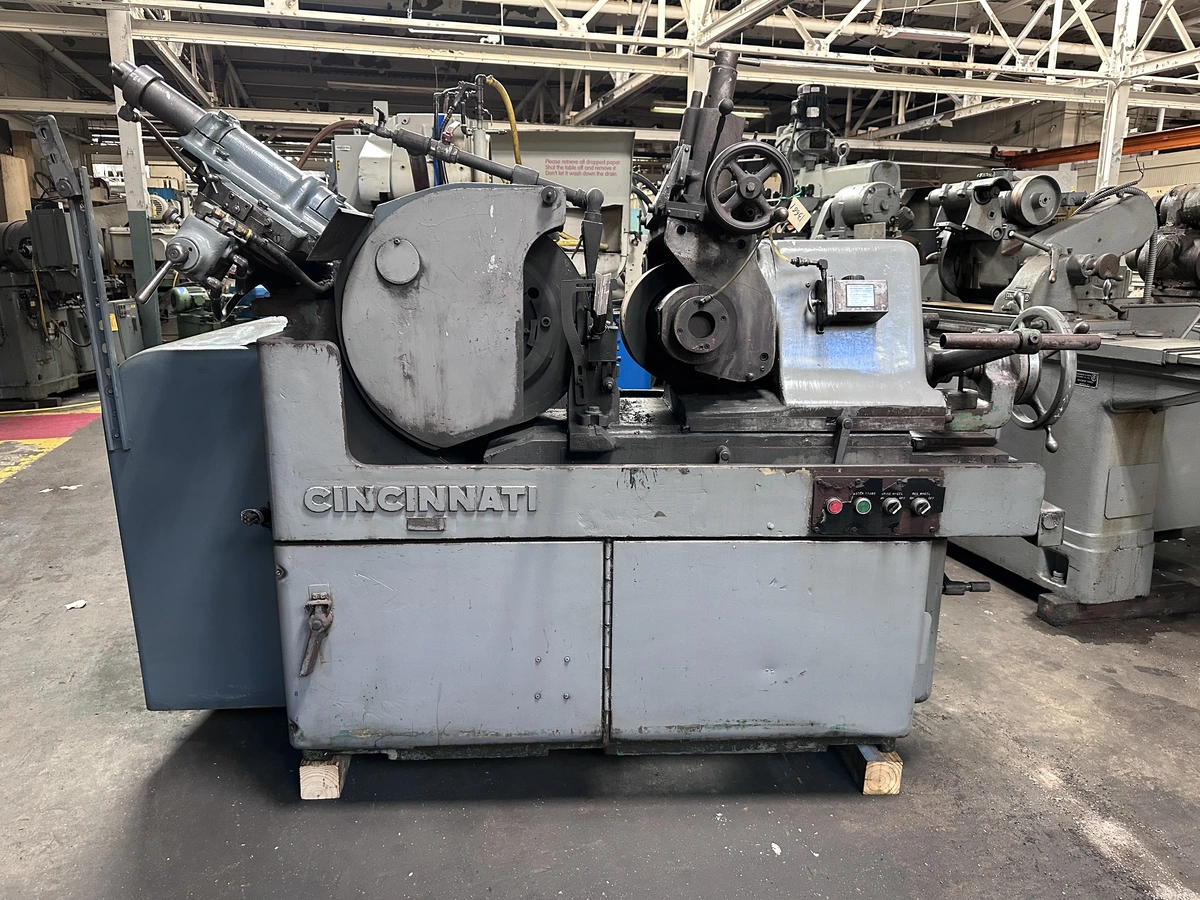

                                                                                                         #2 "OM" CINCINNATI CENTERLESS GRINDER

                                                                                                                   S/N 2M2H5B-68     YEAR: 1954

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
          not included in price)
Standard work rest...................... 1/16" to 3 1/2" dia.
Low thru feed work rest................. 2" to 4 3/4" dia.
Bar work................................ 1/8" to 2" dia. 18" long

GRINDING WHEEL (Not supplied)
Width..............8"              Hole............ 12"
Maximum diameter................................... 20"
Minimum diameter................................... 14"

REGULATING WHEEL (Not supplied)
Width..............8"              Hole............ 5"
Maximum diameter................................... 12"
Minimum diameter................................... 9"

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP

OVERALL DIMENSIONS
Floor space: ...................................... 53" x 86"
Weight............................................. 6,400 lbs.

EQUIPMENT & FEATURES
Filmatic bearings.
Profile contour truing on grinding wheel.
Profile contour truing on regulating wheel / cam bracket.
Grinding wheel mount for straight side wheel.
Regulating wheel outboard support.
Hand pull down feed with ballscrew.

Specifications are deemed accurate, however, subject to verification or prior sale.
