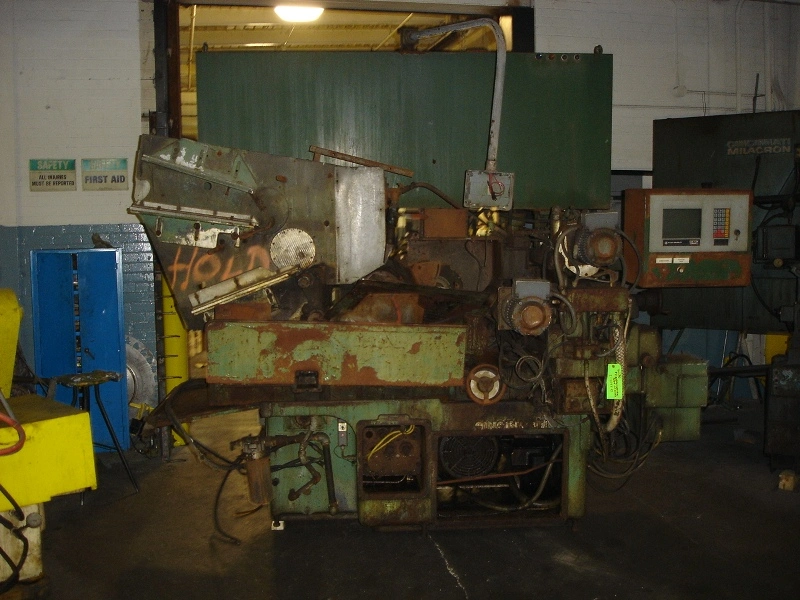

#2 CINCINNATI CHUCKING GRINDER ShoeType Micro-Centric

#2CINCINNATICHUCKING GRINDER
Shoe Type Micro-Centric
S/N 2T2H5E-17

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Work diameter range (full wheel).............. 2 - 10
Wheel head adjustments:
Rapid advance movement(Min-Max)...............187 - 1.50

IN FEED MOVEMENT (MAX)
Dual rate(standard)...........................06
Triple rate(extra cost)...................... .250
In feed rate adjustment........................0.005 to 1

TARRY ADJUSTMENT..............................0.6 to 12 sec.

HEAD STOCK ADJUSTMENTS
Swivel plate..................................0 to 45 degrees
Head stock movement parallel to
swivel plate..................................5
Vertical movement one centrically
mounted roller sunder cross slide............. .050
Longitudinal movement of head stock
movement through cross slide screw............ 13.12
Sub slide movement-perpendicular to
cross slide movement..........................4.88

GRINDING WHEEL................. 20 Dia. x 3 Wide x 16Hole

MOTORS DRIVES
Grinding wheel motor(HP[kw]/RPM)............ 20 HP (14,9 kw)
..............................................@1500 or 1800RPM
Head stock(HP[kw]/RPM)...................... 1.5 HP (1,1 kw)
..............................................@750 or 900RPM
Hydraulic pump motor..........................3 HP (2,2 kw)
Cutting fluid pump motor...................... .25 HP (0,2 kw)
Grinding wheel head stock drives............ Mult. V belts

CUTTING FLUID SYSTEM
Capacity of cutting fluid pump................ 30GPM
Capacity of cutting fluid reservoir........... 44 gallons

HEIGHT OF GRINDING WHEEL
Distance from floor to center line............. 47.38

FLOOR SPACE
With cutting fluid tank....................... 105 x 81.75

SHIPPINGDATA
Net weight....................................12,200 lbs.
Shipping weight(domestic)....................12,150 lbs.
Shipping weight(export)......................13,350 lbs.
Size of case(export)......................... 114 x 84 x 84

EQUIPMENT FEATURES
Cincinnati Milicron Chucking Grinding Machines are designed for reliability, accuracy, convenience and ease of operation. They are heavy, rigid and extremely easy to operate and maintain. These Chucking Grinders are ideally suited to perform a variety of precision grinding operations which often prove impractical for center type or centerless grinders. This includes short accuratetapers, radii, grooves and similar operations.All can be ground without sacrificing high production or on these machines.
