Used 1947 CINCINNATI #1 MICROCENTRIC | GRINDERS, CHUCKING

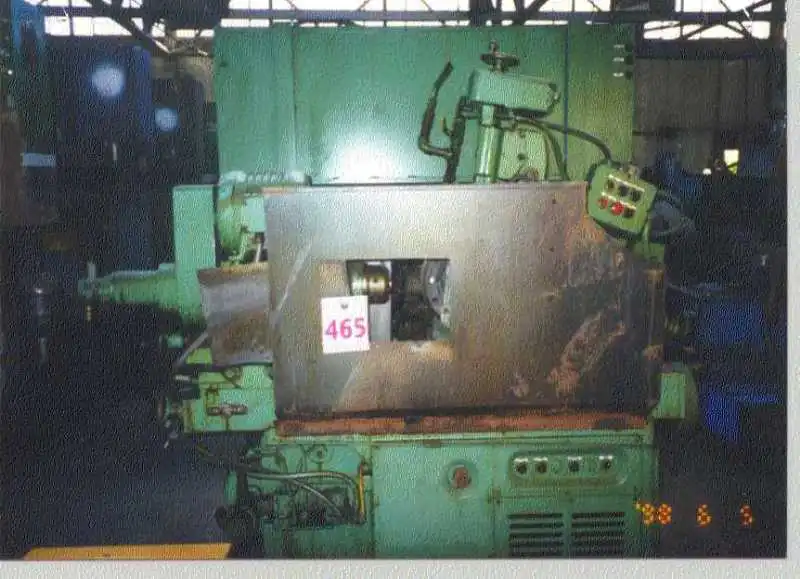

              #1 CINCINNATI MICROCENTRIC GRINDER

S/N 2TDM-1T-51-3
STANDARD CATALOG SPECIFICATIONS:
Capacity, work diameter range, grind............... .5 to 4.5"
WHEELHEAD ADJUSTMENTS:
Rapid advance movement: Maximum.................... 1.5"
                        Minimum.................... .187"
MAXIMUM INFEED MOVEMENT:
Dual rate, standard................................ .06"
Infeed rate, (rate/min)............................ .005 to 1"
Tarry adjustment, seconds.......................... .6 to 12
HEADSTOCK ADJUSTMENTS:
Swivel plate: With auto loader..................... 0 ? 30 Deg.
              With out auto loader................. 0 ? 45 Deg.
Head stock movement parallel to swivel plate....... 4.75"
Vertical movement on eccentric roller under cross slide........................................ . . . 5"
Longitudinal movement of head stock with cross slide screw........................................ . . . 7.5"
Total sub?slide movement perpendicular to cross slide movement, plain........................ . . . . . . . . . . . 4.87"
GRINDING WHEELS:
"A" Type wheel head: Maximum diameter.......... 20"
                     Minimum diameter.......... 15"
WORKPIECE WIDTH: ? GRIND
20" Wheel, 8,500 SFPM.............................. 3"
20" Wheel, 12,000 SFPM............................. 1.87"
24" Wheel, 8,500 SFPM.............................. 2.25"
MOTORS AND DRIVE
Grinding wheel head: 8,500 SFPM.................... 10 HP
                    12,000 SFPM.................... 10/20 HP
Head stock, vee arc................................ 1.5 HP
Head stock, RPM, Infinitely variable............... 200?2000
Hydraulic pump..................................... 3 HP
CUTTING FLUID SYSTEM
Pump capacity...................................... 30 GPM
Tank capacity, gallons............................. 41.5
Pump drive......................................... .25 HP
EQUIPMENT & FEATURES
Above the wheel dresser
Auto diamond advance
Collet chuck
WEIGHT:  Domestic shipping, approximate............ 13,000 lbs.
EQUIPPED WITH
Above the wheel dresser
Auto diamond advance
Collet chuck
Specifications are deemed accurate, however, subject to verification or prior sale.
