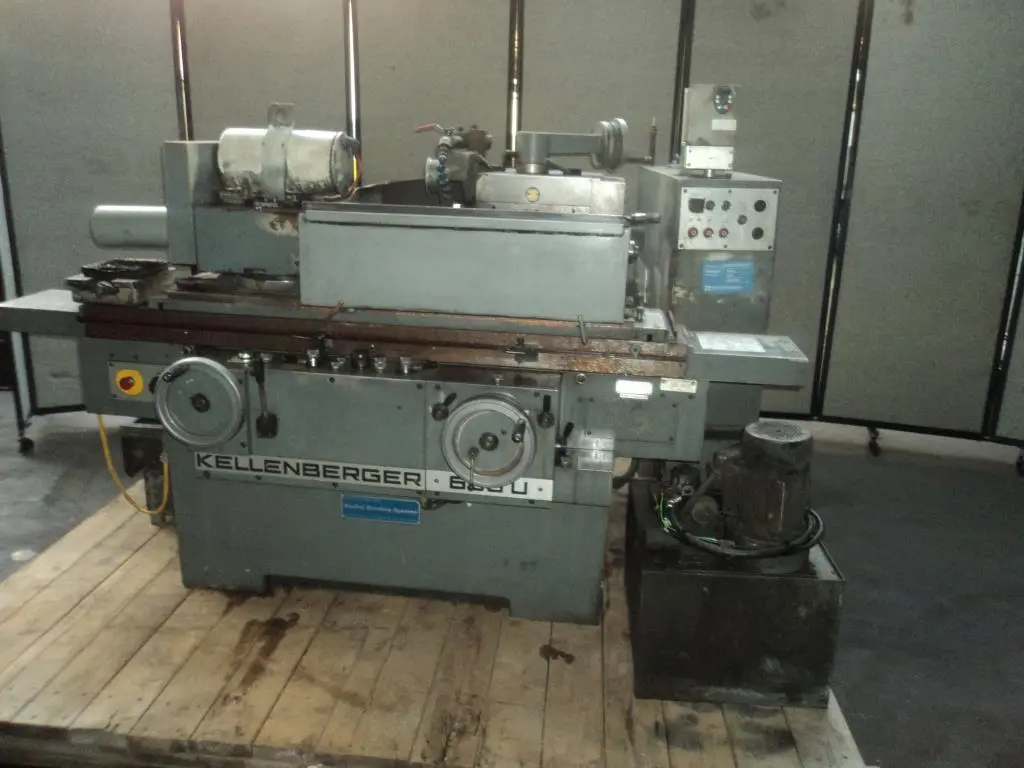

Kellenberger 14"x 24" 600U Universal Cylindrical Grinder

14 X 24 KELLENBERGER MODEL 600 U
UNIVERSAL CYLINDRICAL GRINDER

S/N 32460-2240 Year:1986

STANDARD SPECIFICATIONS
14" Actual swing over table
24" distance between centers

TABLE
35 7/16" Maximum travel of table
11 Degrees maximum swivel

WHEEL SLIDE
11.2" Maximum travel
137/64" Forward reverse rapid wheel slide

WHEEL HEAD
15.7" O.D. x 1.9" width x 5" bore
1500,1700, 2200 R.P.M. spindle speeds

WORK HEAD
360 swivel
20-400 R.P.M. speeds infinitely variable
5 Internal taper of spindle morse

MOTORS
4 H.P. 3000 R.P.M. wheel head
220/440/3/60 cycles

EQUIPMENT FEATURES
Automatic cycle.
Internal attachment.
Pick feed.
Locking swivel wheel head.
Coolant tank pump.
Stand-alone electrical.
Swing around internal grinding attachment.
OD/ID facing spindle set up.
Face grinding wheel set up with 7.5” diameter wheel.
15.7” Diameter OD wheel on main spindle.

Approximate weight: 6000 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
