ERWIN JUNKER EJ29 SILVER 3351

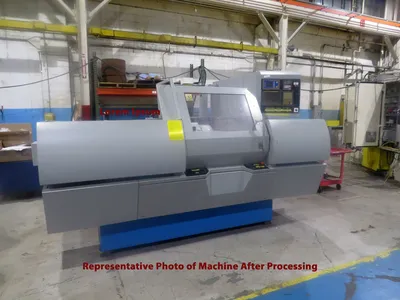

ERWIN JUNKER EJ29 SILVER CNCCYLINDRICAL GRINDER

s/n: 33512006’

EJ 29 Silver is amulti-functional cylindrical grinding machine for manufacturing singlecomponents and batch lots. This machine type covers a wide range of grindingapplications. Designed for complex applications that require a high level ofworkmanship. Software on the CNC control system, FANUC 21i, offers simpleoperation and programming. It offers large-scale digital axis drives and aprecise absolute measuring system in all CNC axes. Separate electronic handwheels for the X- and Z-axis allow the grinding operator to operate manually.FANUC 21i-TB CNC Control (X/Z/C Axes)

STANDARDSPECIFICATIONS

Swing…………..…………………………………………………11.47” x 31”
Height of centers …………………………………………..……..6”
Rotating diameter……………………………………………max. 11”
Width of turning centers…………………………………….max.31”
Grindinglength………………………………………….......max. 31”
Grinding wheeldiameter…………………………………....11” – 16”
Grinding wheelwidth…………………………………….......max. 2”
Grinding wheelbore hole………………………………...………...5”
Grinding wheelcircumferential speed………………………...….45 m/s
Workpiece weightbetween turning centers…………………max. 80 kg
Total connectionvalue……………………………………approx. 20 kVA
Weight of thebasic version of the machine………………approx. 5600kg
Dimensions ofMachine……………………….approx. 137” x 106” x 81” tall

EQUIPPED WITH

Fanuc 21i-TB Controls
SBS Balancer SB4500
Fanuc Servo Driven Head Stock
Fanuc Servo Driven Table Traverse
Manual B-Axis
Fanuc Servo Plunge
Air Chuck Actuator
Hydraulic Lever Operated Tailstock
Attached Electrical Panel
Hydraulic Unit

Specifications are deemed accurate, however, subject to verification orprior sale.
