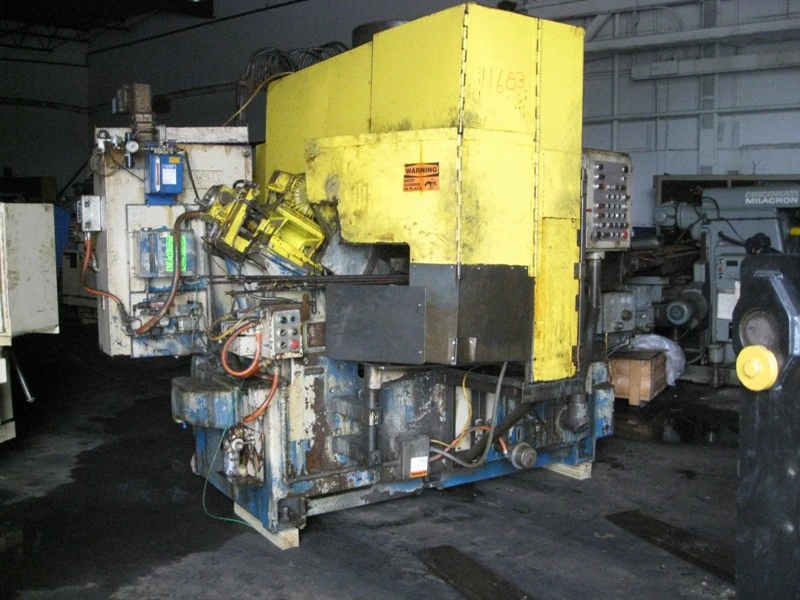

325-12 DE CINCINNATI CENTERLESS GRINDER

325‑12 DE CINCINNATICENTERLESS GRINDER
S/N 350412H75-0008 Year: 1975

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Work rests or bar grinding fixtures are not
standard equipment.)
Standard thru feed infeed work rests........ 1/2 to 3 dia.
Maximum work diameter......................... 6
(Depending on which work rest is ordered)

WHEELS (Not included in price)
Grinding wheel.................12 Hole, 8‑12 Widths
24 Max. dia., 16 Min. dia.
Regulating wheel...............6 Hole, 8‑12 Widths
14 Max. dia., 10 1/4 Min. dia.

GRINDING WHEEL SPINDLE
PRIVATE High grade alloy steel, heat treated, titanium dioxide coated and ground. Filmatic bearings self‑adjusting for variations in load with plain thrust bearing in center. Automatic circulating lubrication under pressure.tc�\l 1 High grade alloy steel, heat treated, titanium dioxide coatedand ground.� Filmatic bearings self‑adjustingfor variations in load with plain thrust bearing in center.� Automatic circulating lubrication underpressure.

REGULATING WHEEL SPINDLE
PRIVATE High grade alloy steel, heat treated, titanium dioxide coated and ground. Two piece bronze front and rear bearings, anti‑friction radial and thrust bearing on end. Automatic pressure lubrication.
REGULATING WHEEL SPEEDS
Number..............................Infinite
Range...............................60 cycle: 11 to 300 RPM
50 cycle:12 to 315 RPM
Low range........................... 60 cycle: 11 to 56 RPM
50 cycle:12 to 59 RPM
High range.......................... 60 cycle: 56 to 300 RPM
50 cycle:59 to 315 RPM

GRINDING WHEEL DRIVE
Enclosed motor on end of machine......... 25 HP
Constant speed, NEMA dimensions.......... 50 ‑ 60 cycle, 3 phase
208 or 575 single; 230/460 dual voltage
AC drives grinding wheel only.
Power transmission....................... 8 V‑belts

REGULATING WHEEL DRIVE
Motor mounted on upper slide........ 60 cycle: 2 HP @ 1200 RPM
50 cycle:2 HP @ 1500 RPM
Constant speed, NEMA dimensions.....50 or 60 cycle, 3 phase
208 or 575 single;230/460 voltage AC
Power transmission.................. 8 V‑belt chain
Speed changes...........Variable pitch sheaves and gear shift

CUTTING FLUID EQUIPMENT
Individual motor driven cutting fluid pump capacity 30 GPM
Cutting fluid tank capacity.............. 75 gallons

WHEEL TRUING
PRIVATE Independent truing units for each wheel. Hydraulic diamond truing for grinding and regulating wheels. Diamond not included as standard equipment.tc� \l 1 Independent truing units for eachwheel.� Hydraulic diamond truing forgrinding and regulating wheels.� Diamondnot included as standard equipment.
SIZING ADJUSTMENT
PRIVATE Accurate adjustment of regulating wheel slide by infeed hand wheel graduated in fifty millionths of an inch.tc� \l 1 Accurate adjustment of regulatingwheel slide by in feed hand wheel graduated in fifty millionths of aninch.

FLOOR SPACE WEIGHT
Floorspace.............................. 95 1/4 x 140 3/8
Weight...................................18,000 lbs.

EQUIPMENT FEATURES
Regulating wheel head without board support.
Gib style ways.
Electro hydraulic infeed unitwith comp.
Stand alone electrical panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
