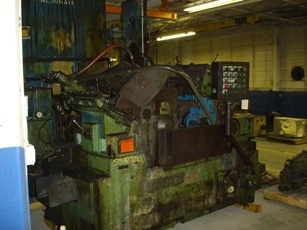

330-15 CINCINNATI CENTERLESS GRINDER

330-15 CINCINNATICENTERLESS GRINDER

S/N 350415H74-0009

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed on in feed work rest........ 1/2 - 3
Maximum diameter machine will grind........... 6
(Depending on which work rest is ordered)

BAR GRINDING FIXTURES
Type V: Solid bars........................... 1/2- 1 1/2
Type V: Modified - light walled or other
............ Similar work..............1 1/2 - 2 1/2
Type C: Lengths up to 24 solid bars.........1/2 - 2

WHEELS (Not supplied)
Grinding wheel: 12 Hole, 24 Max. dia., 17Min. dia.
......................Up to 15 Widths
Regulating wheel: 6 Hole,14 Max. dia., 10 Min. dia.
.........................Up to 15 Widths

REGULATING WHEEL SPEEDS
Number........................................Infinite
Range................ 12-300 RPM 60 Hz - 15-315 RPM50 Hz
Low range............ 12- 56 RPM 60 Hz - 15- 59 RPM50 Hz
High range........... 56-300 RPM 60 Hz - 59-315 RPM50 Hz

GRINDING WHEEL DRIVE
Enclosed motor on end of machine.............. 30 HP
PRIVATE Constant speed NEMA dimensions, 2 or 3 Phase, 50 or 60 Hztc�\l 1 Constant speed NEMA dimensions, 2 or 3 Phase, 50 or 60Hz
230 or 460 volts, AC, Drives grinding wheel only.
Power transmission............................ 8 V Belts

REGULATING WHEEL DRIVE
Motor mounted on upper slide...... 60 Hz, 2 HP, 1200 RPM
50 Hz, 2 HP,1500 RPM
Constant speed NEMA dimensions.... 2 or 3 PH, 50 or 60 Hz
230 or 460 Volts AC
Power transmission................ V Belt and chain
Speed changes........ Variable pitch sheaves gear shift

GRINDING WHEEL SPINDLE
High grade alloy steel, ground, bearing surfaces coated.
PRIVATE Cartridge type spindle includes filmatic bearings which are self adjusting for variations in load. Automatic circulating lubrication under pressure.tc�\l 1 Cartridge type spindle includes filmatic bearings which areself adjusting for variations in load.�Automatic circulating lubrication under pressure.

REGULATING WHEEL SPINDLE
High grade alloy steel, ground bearing surfaces coated.
PRIVATE Two piece bronze bearings each side of wheel, plus rear support bearing and anti friction thrust bearing on end. Automatic pressure lubrication.tc� \l 1 Two piece bronze bearings eachside of wheel, plus rear support bearing and anti friction thrust bearing onend.� Automatic pressure lubrication.

CUTTING FLUID EQUIPMENT
PRIVATE Individual motor driven cutting fluid pump capacity 90GPMtc� \l 1 Individual motor driven cuttingfluid pump capacity 90 GPM
Cutting fluid tank............................ 150 gallons

WHEEL TRUING
Independent truing unit for each wheel. Hydraulic diamond
profile truing for both grinding wheel and regulating wheel. Diamond not included.

EQUIPMENT FEATURES
Outboard support regulating wheel.
PRIVATE Auto profile regulating and grind wheel dresser with
Accu drive motor.tc� \l 1 Auto profile regulating and grindwheel dresser with accudrive motor.
Electro-hydraulic automatic in feed unit.
Trabon lube system.

FLOOR SPACE
109 x 158 1/16

WEIGHT
Net approximate: 16,700 lbs.
