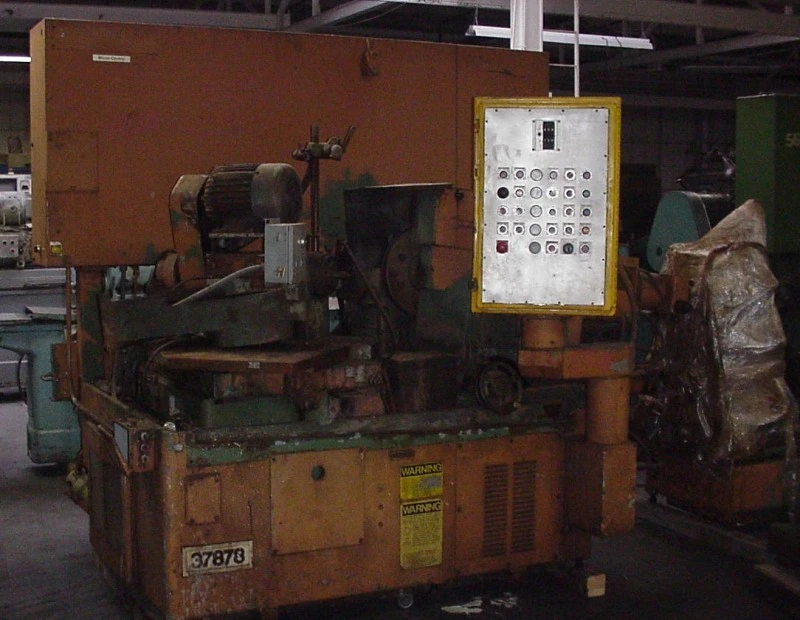

#1 N MD CINCINNATI MICROCENTRIC CHUCKING GRINDER

#1 N MDCINCINNATIMICROCENTRIC CHUCKING GRINDER

S/N 3515E0178-0005Year:1978

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Work diameter range(Full wheel)................ 0 - 4
Wheel head adjustments:
Rapid advance movement(Min-Max).................187 - 1.50

IN FEED MOVEMENT (MAX)
Dual rate(standard).............................06
Triple rate(extra cost)........................ .250
Infeed rate adjustment..........................0.005 to 1/min.

TARRY ADJUSTMENT................................0.6 to 12 sec.

HEAD STOCK ADJUSTMENTS
Swivel plate....................................0 to 45 degrees
Head stock movement parallel to swivel plate... 4.25
Vertical movement on eccentrically
mounted rollers under cross slide............... .050
Longitudinal movement of head stock
movement through cross slide screw.............. 7.50
Sub slide movement-perpendicular to
cross slide movement............................4.88

GRINDING WHEEL................. 24 Dia. x 1 3/4 Wide x 12 Hole

MOTORS DRIVES
Grinding wheel motor..........................5HP, 8,500 SFPM
..............................................@1500 or 1800RPM
Head stock(HP[kw]/RPM)...................... 3/4 HP (0,7kw)
..............................................@750 or 900RPM
Hydraulic pump motor..........................3HP (2,2kw)
Cutting fluid pump motor...................... .25 HP (0,2kw)
Grinding wheel head stock drives............ Multi. V belts

CUTTING FLUID SYSTEM
Capacity of cutting fluid pump................ 30GPM
Capacity of cutting fluid reservoir...........44 gallons

HEIGHT OF GRINDING WHEEL
Distance from floor to center line............. 47.38

FLOOR SPACE
With cutting fluid tank....................... 94.75 x 81.75

SHIPPINGDATA
Net weight....................................11,850 lbs.
Shipping weight(domestic)....................12,800 lbs.
Shipping weight(export)......................13,000 lbs.
Size of case(export).........................114 x 84 x 84

EQUIPMENT FEATURES
Separate hydraulic unit.
Push button station.
Behind wheel diamond roll dresser.
Camin feed.
Auto lube.
Attached electrics.
Swiveling head stock.
