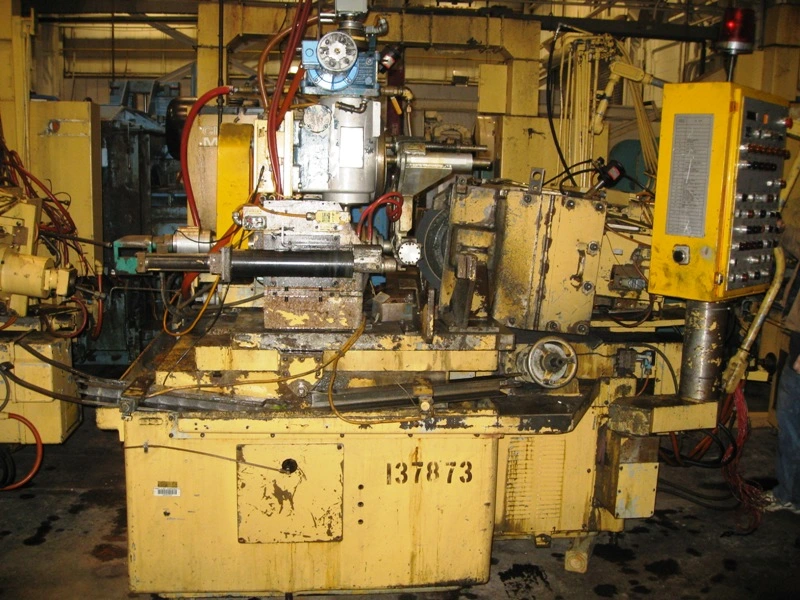

CINCINNATI #2 TYPE T 3515H0180-0003

#2 MD CINCINNATICHUCKER TYPE T BASE
S/N 3515H0180-0003

STANDARD SPECIFICATIONS

Capacity (work diameter range)
- Grind (maximum)…………………………………………… 10
(minimum)………………………………….…………. 2

Wheel Head Adjustments
Rapid advance movement (maximum)……………………….. 1 1/2
(minimum)……………………….. 3/16

Maximum Infeed Movement
Dual rate (standard)…………………………………………… .060
Triple rage (hydraulic)………………………………………... .250
Electronic……………………………………………………… .375
Infeed rate adjustment…………………………………………. .005 to1

Head Stock Adjustments
Swivel plate -
Plain machine (w/auto loader)………………………………… 0 up to 30˚
(w/o auto loader)………………………….…… 0 to 45˚
Angular machine (w/auto loader)…………………………….. --
(w/o auto loader)…………………………..--
Head stock movement parallel to swivel plate…………….…. 4 3/4
Vertical movement to eccentrically mounted roller
under cross slide…………………………………………….… 1/2
Longitudinal movement of head stock through
cross slide screw………………………………………………. 13 1/8
Sub-slide movement parallel to swivel plate - plain…………… 47/8
angular………… --

Grinding Wheel
Grinding wheel diameter……………………………………….. 18.5”

Motors and Drives
Grinding wheel motor…………………………………………. 10/20 HP
Head stock motor………………………………………………. 1.5 HP
Hydraulic pump motor…………………………………………. 3 HP

Cutting Fluid System
Capacity of cutting fluid pump…………………………………… 30 GPM
Capacity of cutting fluid tank…………………………………….. 41.5 gallons

Weight - Approx. Domestic Shipping
Angular 'T' bed…………………………………………………… 15,000 lbs.

EQUIPMENT FEATURES
Behind the wheel diamond roller dresser.
Stepper motor infeed.
12,000 SFPM.
2477 RPM spindle.
Cambot motorized/hydraulic swing arm parts loader.
