CINCINNATI 18 x 48 35326E5T-0005A

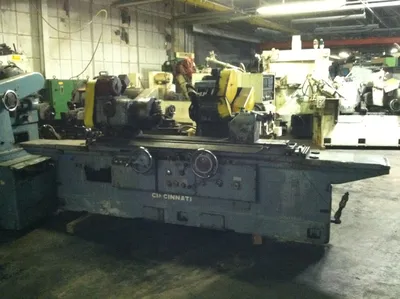

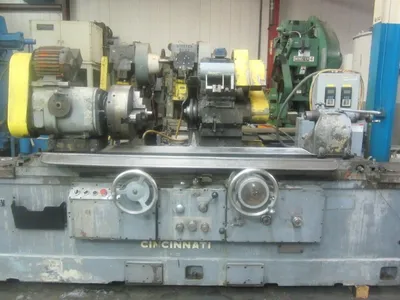

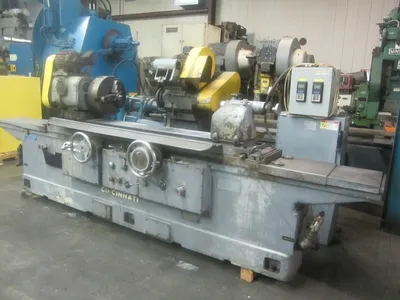

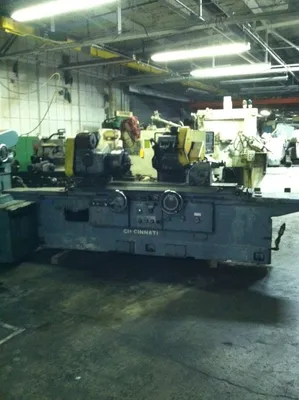

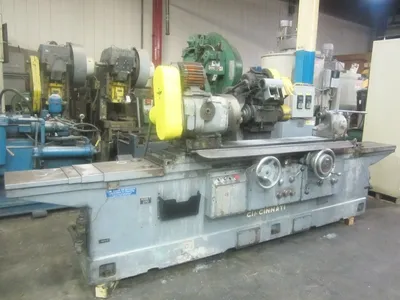

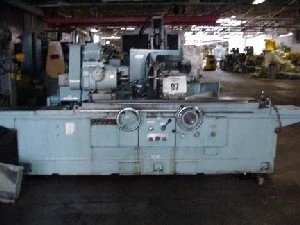

18 x 48 CINCINNATI UNIVERSAL GRINDER
S/N 35326E5T-0005 Year: 1967

STANDARD SPECIFICATIONS
Maximum swing over table…………………………………………….. 18 15/16”
Maximum diameter machine will grind with full size wheel…………... 18 15/16”
Minimum diameter machine will grind with either full size or
worn out wheel………………………………………………………….. 0
Nominal distance between centers……………………………………... 48”
Distance from floor to centers………………………………………….. 44 3/8”
Swivel table graduated to angel of - toward wheel head………………..9�
- away from wheel head…………... 2�
Swivel table graduated to taper per foot of - toward wheel head…….... 3 3/4
- away from wheel head.… 1”
Floor space required…………………………………………………… 72 3/4” x 184 1/4”

GRINDING WHEELHEAD
Swivel range - (lower swivel), right and left…………………………. 90�
- (upper swivel), right and left…………………………. 30�
Grinding wheels regularly supplied (diameter x face x hole)………… 14” x 1 1/2 x 5”

CROSS FEED
Automatic infeed at table reversal (diameter reduction) -low……….. .0002” to .005”
- high………. .0005” to .0125”
Wheel head movement per turn of cross feed hand wheel -low……... .050”
- high…….. .025”
Minimum infeed increment in terms of diameter reduction………….. .00005”
HEAD STOCK AND FOOT STOCK
Taper hole in head stock and foot stock spindles…………………………No. 10 B S
Number of work rotation speeds…………………………………………. Infinite
Range of work rotation speeds…………………………………………… 25 to 200 RPM
Head stock spindle nose, American Lathe Standard……………………..6”
Head stock swivel - toward wheel head…………………………………. 90�
- away from wheel head……………………………... 30�
TABLE
Number of table traverse speeds………………………………………… Infinite
Range of table traverse speeds, inches per minute……………………… 3to 220
Minimum movement required to reverse table…………………………. 3/32”
Accuracy of table reversal at all traverse rates…………………………...004”
Independent right hand and left hand tarry, seconds…………………….0 to 5
Mechanical hand table traverse per revolution of hand wheel- rapid….. 15/16”
- slow…… .02”
POWER REQUIREMENTS(Electrical equipment included with machine)
Wheel head motor………………………………………………………. 5 HP
Hydraulic pump motor………………………………………………….. 1 1/2 HP
Head stock motor……………………………………………………….. 1 HP
Internal grinding attachment motor…………………………………….. 2 HP
Cutting fluid pump motor………………………………………………. 1/4 HP

EQUIPPED WITH
Swing down internal grinding spindle.
Tarry left right.
Pick feed.
Live dead center head stock.

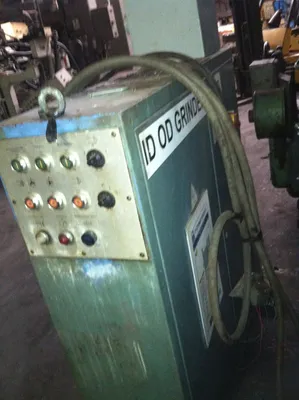

Stand alone electrical panel.
Coolant in base.

Specifications are deemed accurate, however, subject to verification or prior sale.
