CINCINNATI 18 X 48 35326E80-0002

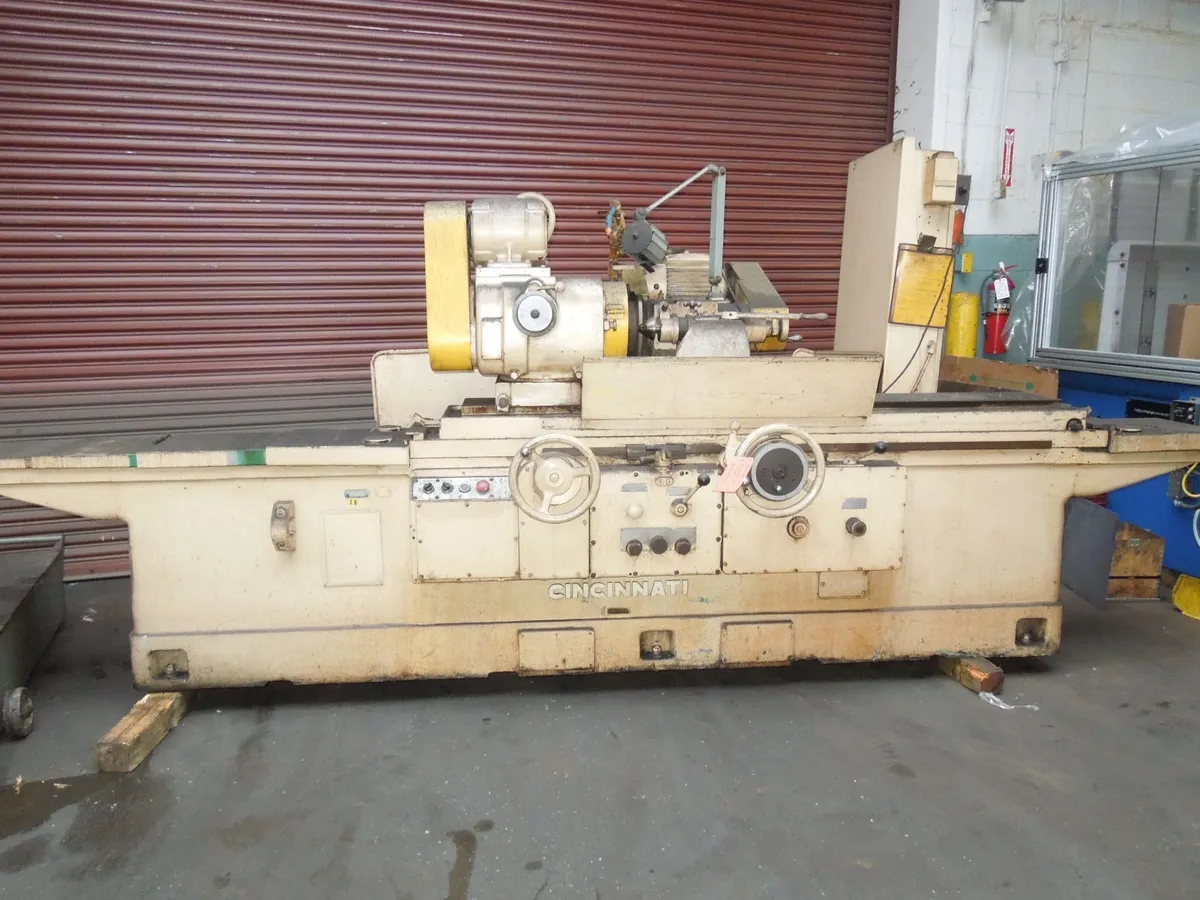

18 x 48 CINCINNATI UNIVERSAL GRINDER

S/N35326E80-0002 Year: 1980

STANDARDSPECIFICATIONS
Maximum swing over table…………………………………………….. 18 15/16”
Maximum diameter machine will grind with full sizewheel…………... 18 15/16”
Minimum diameter machine will grind with either full size or
worn out wheel………………………………………………………….. 0
Nominal distance between centers……………………………………... 48”
Distance from floor to centers………………………………………….. 44 3/8”
Swivel table graduated to angel of - toward wheelhead……………….. 9�
- away from wheel head…………... 2�
Swivel table graduated to taper per foot of - toward wheelhead…….... 3 3/4
- away from wheel head.… 1”
Floor space required…………………………………………………… 72 3/4” x 184 1/4”

GRINDING WHEELHEAD
Swivel range - (lower swivel), right and left…………………………. 90�
- (upper swivel), right andleft…………………………. 30�
Grinding wheels regularly supplied (diameter x face xhole)………… 14” x 2 x 5”

CROSS FEED
Automatic infeed at table reversal (diameter reduction) -low……….. .0002” to .005”
- high………. .0005” to .0125”
Wheel head movement per turn of cross feed hand wheel -low……... .050”
- high…….. .025”
Minimum infeed increment in terms of diameterreduction………….. .00005”

HEAD STOCK ANDFOOT STOCK
Taper hole in head stock and foot stock spindles…………………………No. 10 B S
Number of work rotation speeds…………………………………………. Infinite
Range of work rotation speeds…………………………………………… 25 to 200 RPM
Head stock spindle nose, American Lathe Standard……………………..6”
Head stock swivel - toward wheel head…………………………………. 90�
- away from wheelhead……………………………... 30�

TABLE
Number of table traverse speeds………………………………………… Infinite
Range of table traverse speeds, inches per minute……………………… 3to 220
Minimum movement required to reverse table…………………………. 3/32”
Accuracy of table reversal at all traverse rates…………………………...004”
Independent right hand and left hand tarry, seconds…………………….0 to 5
Mechanical hand table traverse per revolution of hand wheel- rapid….. 15/16”
- slow…… .02”

POWER REQUIREMENTS(Electrical equipment included with machine)
Wheel head motor………………………………………………………. 5 HP
Hydraulic pump motor………………………………………………….. 1 1/2 HP
Head stock motor……………………………………………………….. 1 HP
Internal grinding attachment motor…………………………………….. 2 HP
Cutting fluid pump motor………………………………………………. 1/4 HP

EQUIPPED WITH
Swing down internal grinding spindle.
Tarry left right.
Pick feed.
Live dead center head stock.
Attached upgraded electrical panel.
Coolant in base.
Tailstock dresser.
10” 4 Jaw chuck.
Variable speed headstock.
