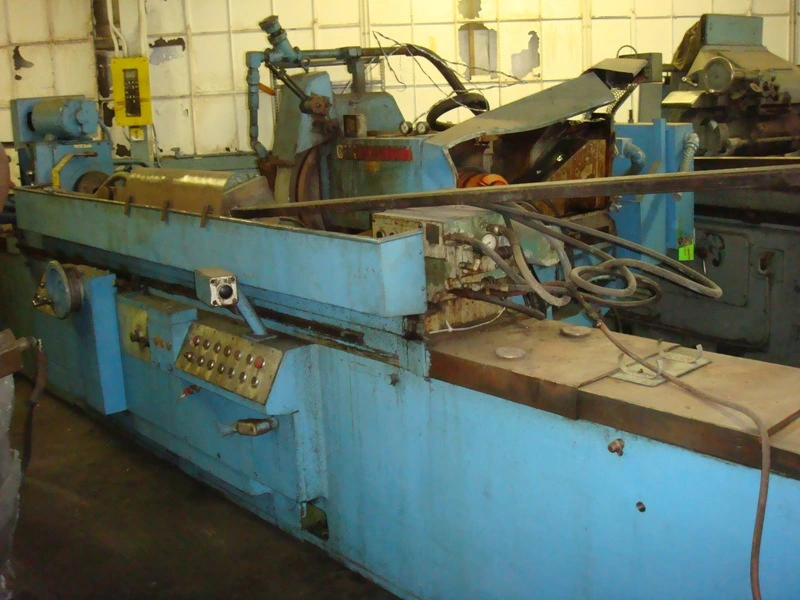

10 x 96 MODEL 380 CINCINNATI PLAIN HYDRAULIC CYLINDRICAL GRINDER

10 x 96 MODEL 380 CINCINNATI PLAIN HYDRAULIC CYLINDRICAL GRINDER

S/N 35382H74-001 Year: 1974

STANDARD SPECIFICATIONS
Maximum swing over table........................... 10 15/16
Nominal distance between centers...................96
Swivel table graduated (towards wheel head)
to angle of........................................6
Swivel table graduated (away from wheel head)
to angle of........................................ 2
Swivel table graduated (towards wheel head)
taper per foot..................................... 2 3/4
Swivel table graduated (away from wheel head)
taper per foot..................................... 1
Diameter of spindle in grinding wheel head......... 3 5/8
Standard size grinding wheel.......................30 x 6 x 20
Taper hole in head stock and foot stock spindles..... No. 12 B S
Range of work rotation speeds...................... 50 to 170 RPM
Range of table traverse rates...................... 3 to 220 IPM
Table tarry adjustment.............................0 - 5 seconds
Hand table traverse-rate per revolution
of hand wheel......................................1
Grinding wheel.....................................6500 SFPM
25 H.P. Wheel head motor........................... 1800 RPM

EQUIPPED WITH
Balancing spindle.
Hydraulic table travel.
Pick feed tarry control.
Automatic lubrication.
Filmatic spindle bearings.
Reliance vari-speed work head.
Reliance vari-speed spindle motor.
Coolants filter pump tank.
Rapid hydraulic plunge, then fine feed via a precision ball screw. The fine feed is accomplished by stepping motor feed.
Lever operated tail stock.
Telescopic way covers.
Acra Size III controls.
Behind the wheel automatic truing attachment.

MOTORS CONTROLS
25 HP vari-speed reliance motor 220/440/3/60.
Free standing electrical panel.

OVERALL DIMENSIONS
84 x 290 (not including coolant tank).
15,000 lbs. approximate weight.

Specifications are deemed accurate, however, subject to verification or prior to sale.
