HEALD 361 35391

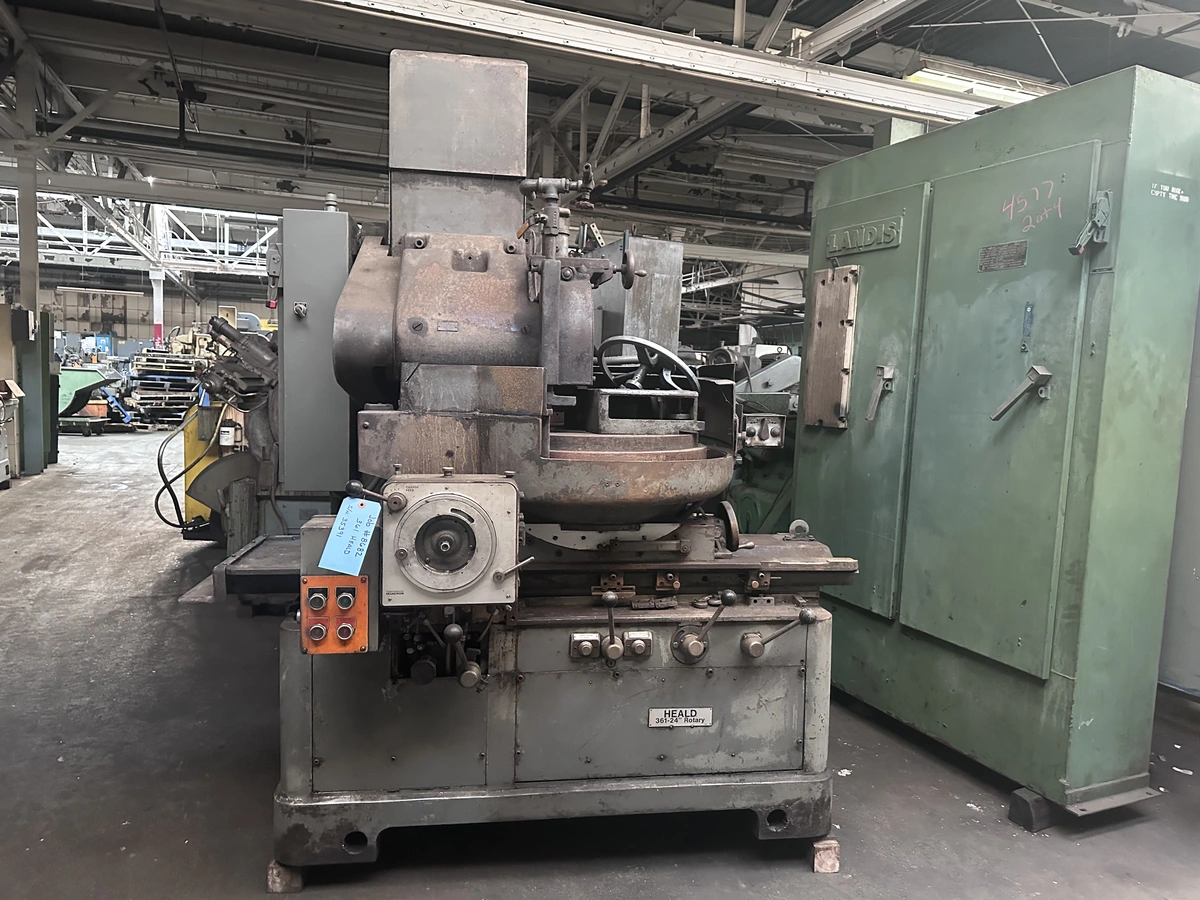

361-24” HEALD ROTARY SURFACE GRINDER

S/N 35391 YEAR: 1957

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex.............................................17 Degrees
Concave............................................10 Degrees
24Chuck.......................................... 32 ‑ 85 RPM
Table speeds ‑ Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 ‑ 15 FPM

MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALL DIMENSIONS
Floor space with coolant tank...................... 115 x 79
Approximate net weight............................. 12,900 lbs.

EQUIPPED WITH
24Diameter fork pull mag chuck Convex ‑Concave
14Diameter wheel Compensation
11/2 Wide wheel face Hydraulic table
28”Swing Inside Guards Push button station
Attached Electrical

Specifications are deemed accurate, however, subject to verification or prior sale.
