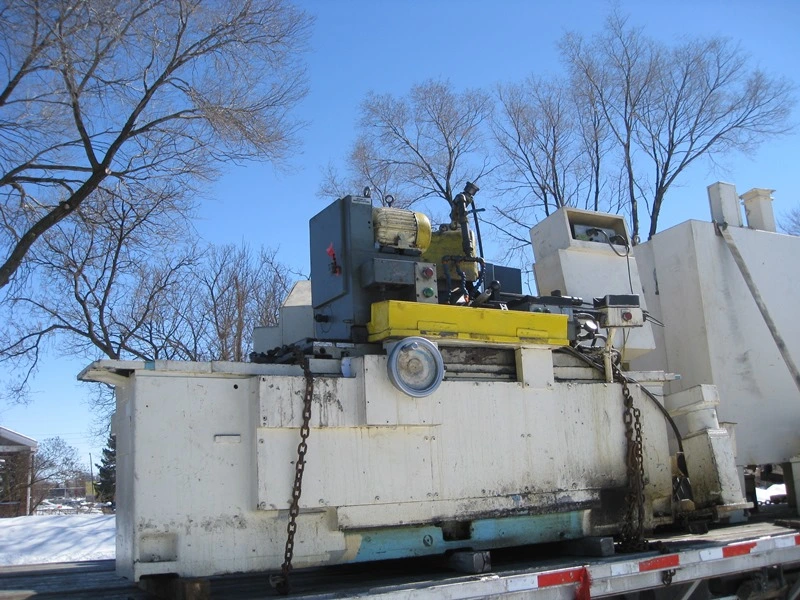

10 x 24 CINCINNATI 30° ANGLE HEAD MODEL 430-DA

10 x 24 CINCINNATI 30 ANGLE HEAD MODEL 430-DA
S/N 35432B380-0001 Year: 1980

STANDARD SPECIFICATIONS
WORK PIECE CAPACITY
Maximum work piece diameter………………………………….10”
Maximum diameter over table…………………………………... 10.93”
Nominal work piece length………………………………………24”

WHEEL HEAD
Grinding wheel diameter(new)………………………………….. 36”
Grinding wheel diameter (worn) 0 machines…………………… 24”
30 and 45 machine…………………………………….. depends on work piece configuration
Collet hole diameter……………………………………………… 20”
Grinding wheel width……………………………………………..0.5” to 9.5”
Grinding wheel speed ft./min. surface speed……………………… 6500 or 8500
Motor………………………………………………………………. 25, 30 HP

SLIDING TABLE
Maximum work piece length………………………………………20”, 30”, 40”
Total table travel……………………………………………………28”, 38”, 48”
Table traverse in./rev. of hex wench……………………………….. 1”
Table traverse in./rev. of hand wheel………………………………. 0.200”

SWIVEL TABLE
Maximum work piece length……………………………………….20”, 30”, 40”
Maximum swivel counterclockwise………………………………..11, 9, 9
Maximum swivel clockwise………………………………………..3, 3, 2

HEAD STOCK
Work piece center………………………………………………. No.14 Jar no
Head stock spindle speeds – A.C. motor –standard…..……….. 34, 49, 70, 100, 144, 206 RPM
Head stock spindle speeds – A.C. motor –optional……………. 40, 58, 85, 119, 171, 245 RPM

FOOT STOCK
Work piece center…………………………………………….… No.14 Jar no
Center movement – lever screw type…………………….…... 1.75”
Center movement – hydraulic type………………………….…... 2” or 5”
Center force – lever screw type…………………………….… 100 lbs. to 200 lbs.
Center force – hydraulic type………………………………….…39 lbs. to 392 lbs.

WHEEL HEAD IN FEED
Total feed stroke (stock removal)………………………… 0 to 0.999” in increments of 0.001”
Medium in feed stroke…………………………………….. 0 to 0.099” in increments of 0.001”
Fine feed stroke…………………………………………… 0 to 0.0099” in increments of 0.0001”
Truing or pick feed compensation………………… 0 to 0.00999” (.00003” minimum increment)
Rapid hydraulic stroke…………………………………… 4”
Rapid rate – max. rate push button in./min………………. 0.600” to 1.875”
Gap eliminator rate in./min……………………………….0.1123” to 0.2250”
Coarse feed rate in./min…………………………………..0.030” to 0.150”
Medium feed rate in./min…………………………………0.014” to 0.075”
Fine feed rate in./min……………………………………..0.00075” to 0.01500”
Tarry time – seconds……………………………………… 0.7 to 10.0 (extendable to 20)
Dead pass table reversals –number………………………. 0 to 7

HYDRAULIC TANK
Tank capacity……………………………………………………… 25 gallons
Oil specifications – C.M. specification No………………………… P-45
Vicosity (S.U.S@ 100 F)…………………… 95-115
Main pump capacity……………………………………………….. 12 gallons/min.
500 P.S.I. pump capacity…………………………………………..1.5 gallons/min.
Sump pump capacity………………………………………………. 5.4 gallons/min.
Hydraulic pump motor…………………………………………….. 3 HP or 5 HP

WAY LUBRICATION TANK
Tank capacity………………………………………………………. 6 or 3.1 gallons
Oil specifications – C.M. specification No…………………………. P-50
Viscosity (S.U.S. @ 100 F)………………….. 900 – 1100
Pump capacity………………………………………………………. 4 gallons/min.
Pump motor…………………………………………………………. 0.25 HP

COOLANT TANK
Tank capacity……………………………………………………….. 100 or 150 gallons
Pump capacity………………………………………………………. 35 or 55 gallons/min.
Pump motor…………………………………………………………. 0.25 HP or 0.5 HP

Specifications are deemed accurate, however, subject to verification or prior sale.
