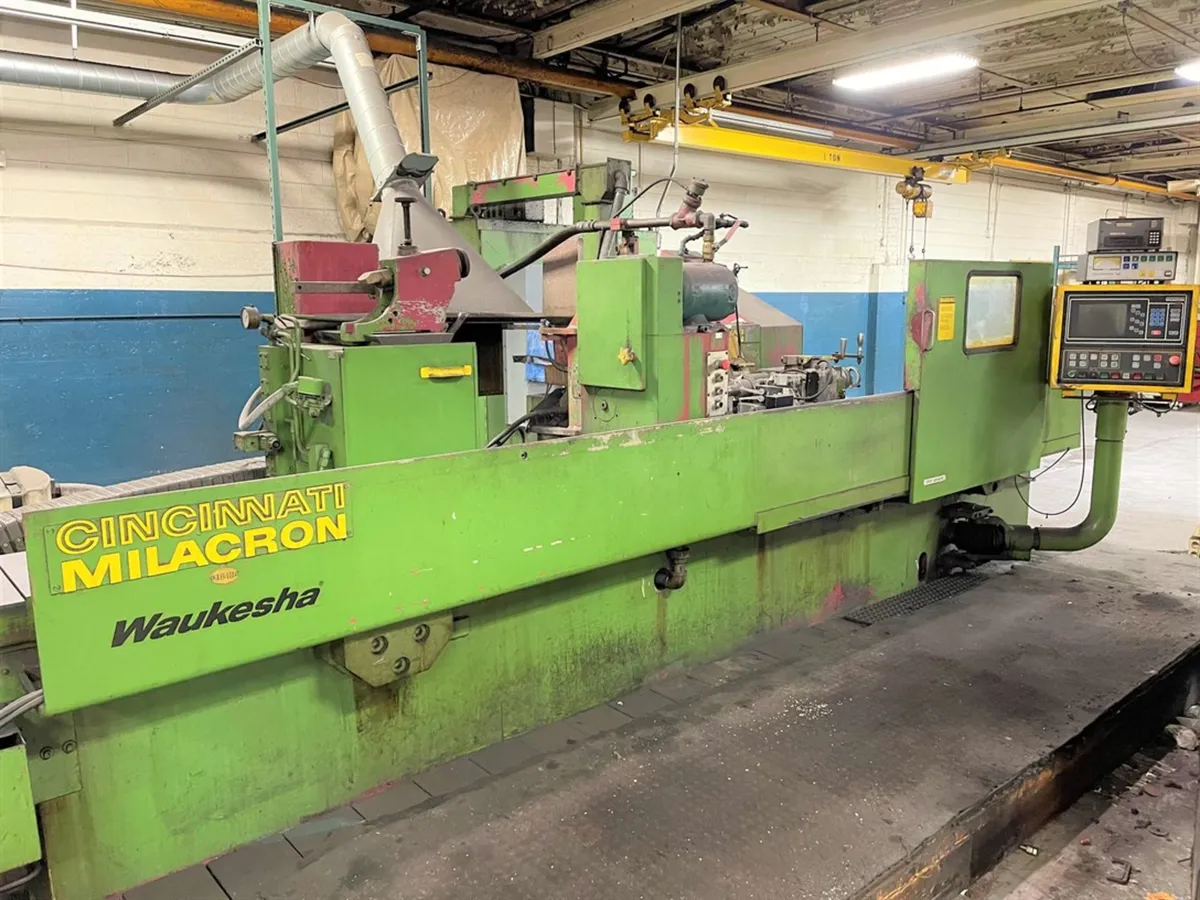

CINCINNATI 10" x 60" PLAIN 3548D0185-0001

10 x 60 CINCINNATI MILACRONMODEL 480AH
CYLINDRICAL ANGLEHEAD STEP GRINDER

S/N 3548D0185-0001 Year:1985

STANDARD SPECIFICATIONS
Nominal swing………………………………………………….. 10 (254mm) standard
Nominal table length………………………………………..…... 60 (1524mm)
Base configuration…………………………………………..…. 90 Degrees
CAPACITIES
Actual swing……………………………………………………. 10.93 (278mm)
Maximum diameter ground – new wheel………………………. 14 (355mm)
Minimum diameter ground – worn wheel…………………….... 30� = 0.65 (16mm)
Work length……………………………………………………. 60 (1524mm)
AXIS MOVEMENTS
X-Axis(wheel head) - Feed rate………………………………. 250/min (6.35m/min)
-Resolution..……………………………. 0.000020 (0.0005mm)
- Repeatability.…………………..……… �0.000060(�0.0015mm)
Z-Axis(Table) - Feed rate……………………………………… 400/min (10.16m/min)
- Resolution……………………………………. 0.000020(0.0005mm)
- Repeatability…………………………..…….. �.000150(�0.0038mm)

WHEELHEAD
Grinding wheel diameter (maximum)………………………... 30 (760mm)
Grinding wheel width………………………………………… 4 (100mm) standard
6 to 12 (150to 350mm) opt.
Wheel speed (new wheel)……………………………………. 8500 sfpm (43m/s)

HEAD STOCK AND FOOT STOCK
Work center tapers……………………………………. No. 14Jarno
Headstock speeds…………………………………….. 3 Torque ranges; 10-550 RPM
Spindle nose………………………………………….. Type A1-6
Part weight capacity - lever screw footstock (std)… 100 lb. (45.5kg) by Lever/1000 lb.
(455 kg) by Screw
- hydraulic foot stock (opt)..…… 100 or 400 lb (45.5 or 182 kg)
(Depending on Screw used)
Center height from floor -14 (355mm) swing machine….. 48 (1220mm)

ELECTRICAL MOTORS
Wheel head drive………………………………………….. 25HP (18kW)
Headstock work drive…………………………………….. 3 HP (2.2kW)
Hydraulic pump drive……………………………………... 2 HP (1.5kW)
Way lubrication pump drive…………………………….… 0.25 HP (0.18kW)
Cutting fluid pump drive……………………………….…. 0.25 HP (0.18kW)
EQUIPPED WITH
Acramatic700G push button station.
Balancer grinding wheel spindle.
Live dead center head stock.
Variable speed head stock.
Heavy duty tailstock.
Lever screw type tailstock.
Dresser on tailstock.

Specifications are deemed accurate, however, subject to verification or prior sale.
