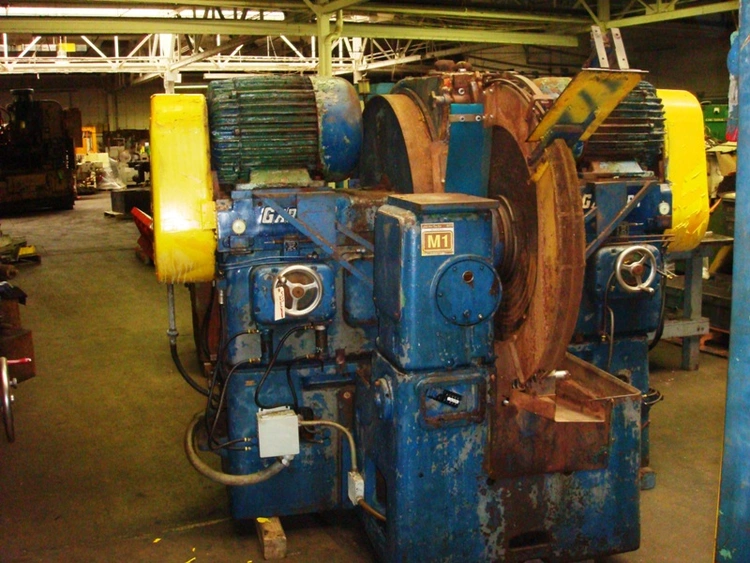

2H30-30 GARDNER DOUBLE OPPOSED DISC GRINDER

2H30-30GARDNER DOUBLE OPPOSED DISC GRINDER
PRIVATE
S/N 370-3

STANDARD CATALOG SPECIFICATIONS
30 Diameter wheels.
(2) 30 HP Motors 1175 R.P.M.
208/220/440 Volts, 3 Phase, 60 Cycle.
Rotary carrier feed.
Coolant thru spindle.
Swing arm dresser.
Coolant tank and pump in base.

PRIVATE PRODUCTION DATAtc� \l 1 PRODUCTION DATA
Rate............................... 2400 complete parts per hour
(9,600 ground surfaces per hour at 100% efficiency)
Stock removal...................... .015 maximum overall
Uniformity..........................001
Tolerances.........................001 center dimension

PRIVATE EQUIPMENT FEATUREStc� \l 1 EQUIPMENT FEATURES
42 Carrier - forward reverse.
Incremental feed - left/right hand heads.
Freestanding electrical panel.
Manual lube.

Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
