HEALD 361 37242

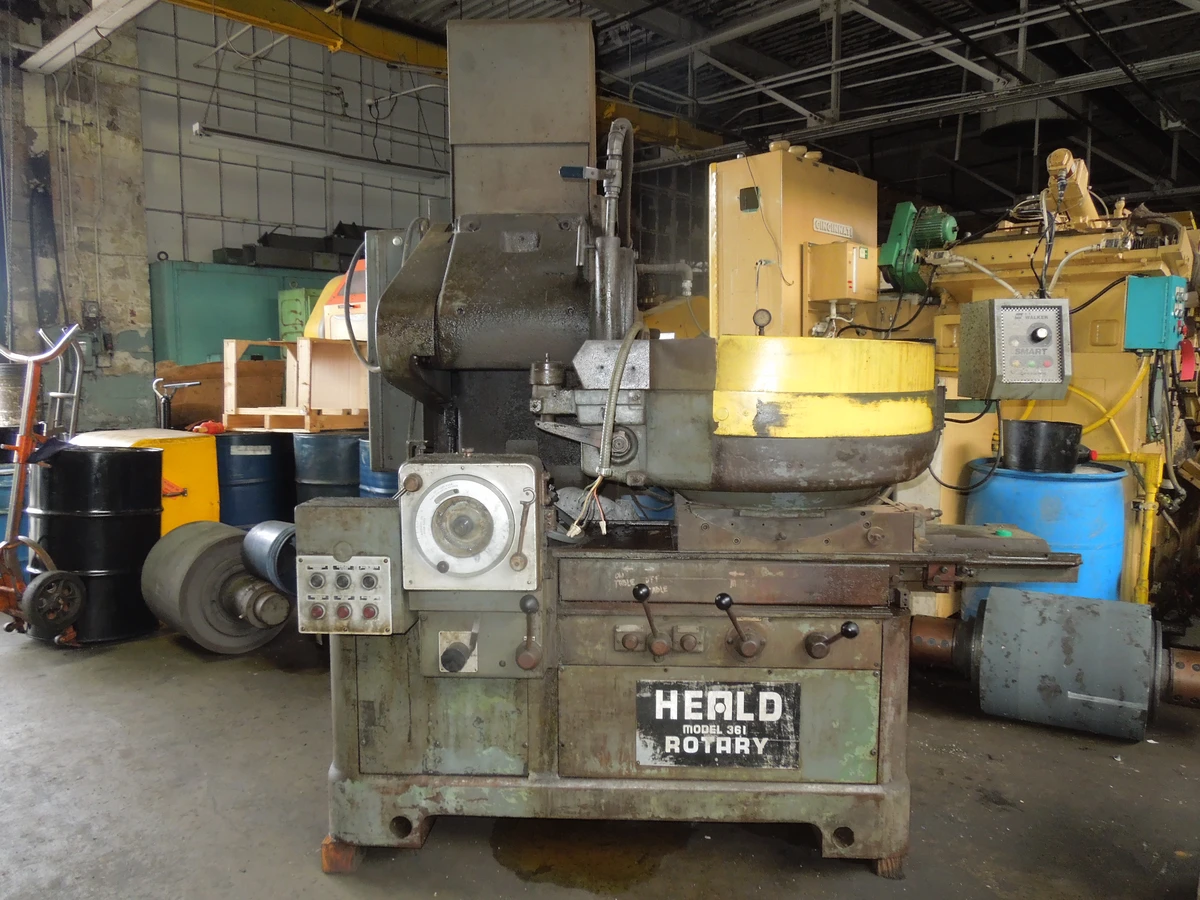

361-24” HEALD ROTARY SURFACE GRINDER

S/N 37242 YEAR: 1960

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex............................................. 17 Degrees
Concave............................................ 10 Degrees
24" Chuck.......................................... 32 85 RPM
Table speeds Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 15 FPM

MOTOR & CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALL DIMENSIONS
Floor space with coolant tank...................... 115" x 79"
Approximate net weight............................. 12,900 lbs.

EQUIPPED WITH
24" Diameter fork pull mag chuck Convex Concave
14" Diameter wheel Compensation
1 1/2" Wide wheel face Hydraulic table
28” Swing Inside Guards OS Walker chuck control
Attached electrical Hydraulic unit

Specifications are deemed accurate, however, subject to verification or prior sale.
