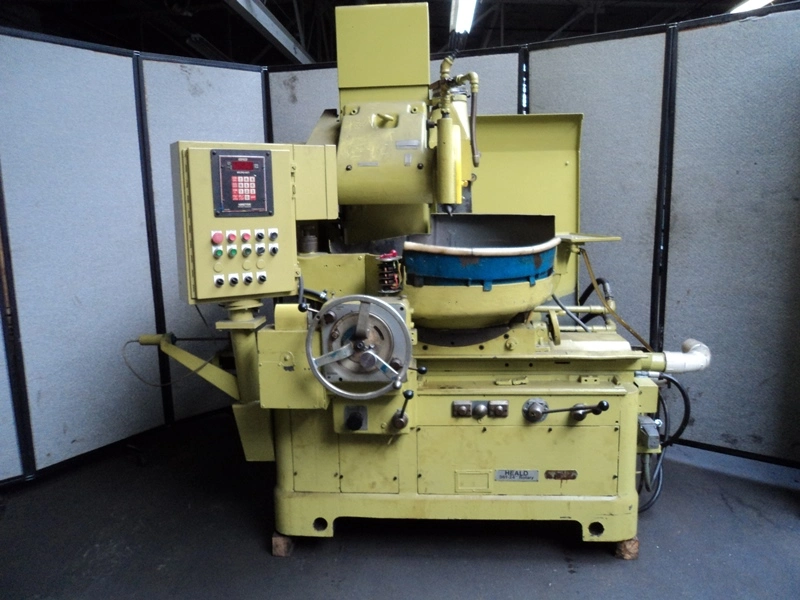

361-24 HEALD ROTARY SURFACE GRINDER

361-24 HEALD ROTARY SURFACE GRINDER
S/N 37279

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex.............................................17 Degrees
Concave............................................10 Degrees
24 Chuck.......................................... 32 - 85 RPM
Table speeds - Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 - 15 FPM

MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALL DIMENSIONS
Floor space with coolant tank...................... 115" x 79"
Approximate net weight............................. 12,900 lbs.

EQUIPPED WITH
24 Diameter fork pull mag chuck Convex -Concave
14Diameter wheel Compensation
11/2 Wide wheel face Hydraulic table
28” Swing Inside Guards
Attached Electrical

Specifications are deemed accurate, however, subject to verification or prior sale.
