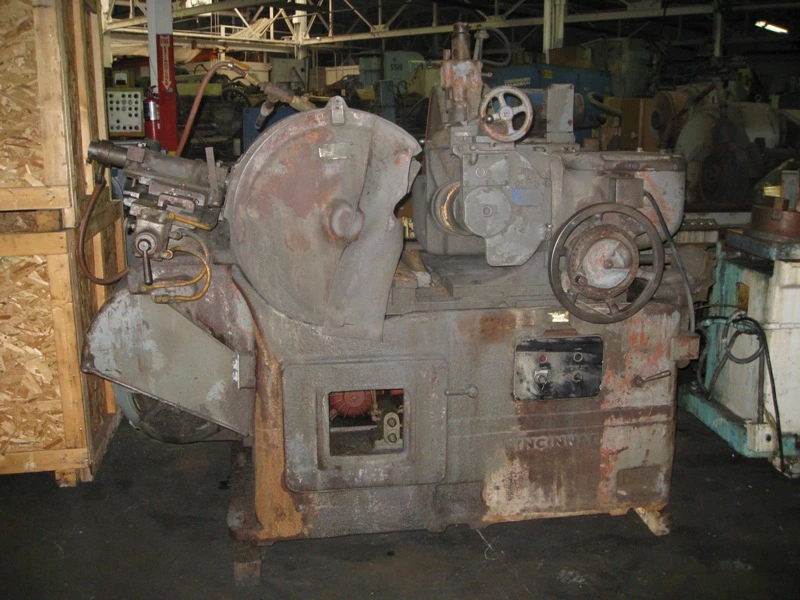

#3 EA CINCINNATI CENTERLESS GRINDER

#3 EACINCINNATICENTERLESS GRINDER

S/N 3M3H1Y-51 Year: 1951

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered, not
included in price.)
Standard thru-feed work rest..................1/2 to 3 dia.
Heavy duty thru-feed work rest................ 2 to 6 dia.
Minimum w/special work rest................... 1/4 dia.
Standard in feed work rest..................... 1/2 to 6 dia.

GRINDING WHEEL SPINDLE
PRIVATE Made of heat treated chrome nickel steel, bearings diameters lapped.tc�\l 1 Made of heat treated chrome nickel steel, bearings diameterslapped.
Size, front rear bearings............. 4 3/4 dia. x 7 1/2long

REGULATING WHEEL SPINDLE
Made of heat treated chrome nickel steel.
Size, plain bearing at front............ 4 dia. x 5 1/2 long
Size, plain bearing at rear............. 2 5/8 dia. x 3 3/4 long

WHEEL (Not supplied)
Grinding wheel............... 24 dia. x 12 hole x 4 to 10 face
Regulating wheel............. 14 dia. x 5 hole x 4 to 10 face

WHEEL TRUING EQUIPMENT
Hydraulic contour truing on grinding wheel.
Hand screw type truing on regulating wheel.

LUBRICATION
All spindle bearings – automatic.
Other bearings - individual fittings.

MOTOR CONTROLS
Grinding wheel drive.......................... Multiple V belts
Regulating wheel drive........................ Worm and gear
Grinding wheel motor.......................... 30 HP
Regulating wheel motor........................ 2 HP
Lubricating pump motor...................... 3/4 HP

COOLANT SUPPLY
Pump capacity................................. 25 gallons
Tank capacity................................. 76 gallons

FLOOR SPACE
Distance from floor to center of wheels....... 43 1/2
Approximate without fixtures.................. 96 1/4 x 62
Approximate weight............................ 11,500 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
