HEALD 361 42093

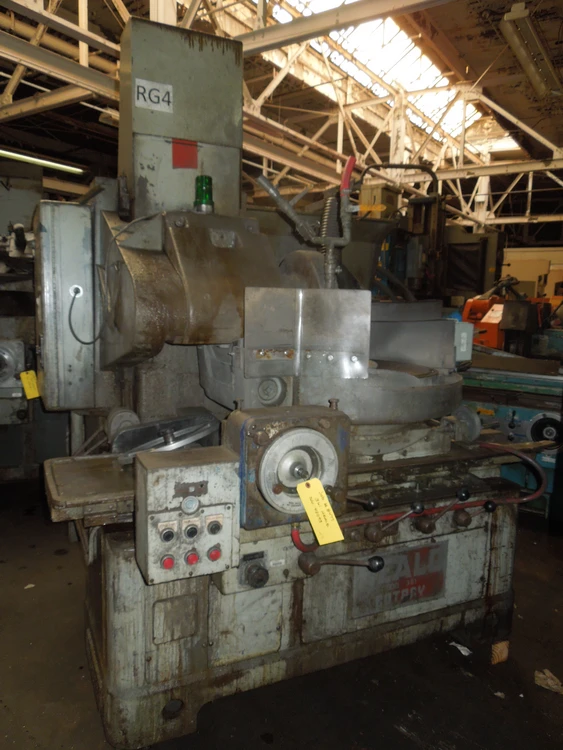

361-24” HEALD ROTARY SURFACE GRINDER

S/N 42093

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex............................................. 17 Degrees
Concave............................................ 10 Degrees
24" Chuck.......................................... 32 85 RPM
Table speeds Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 15 FPM

MOTOR & CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALL DIMENSIONS
Floor space with coolant tank...................... 115" x 79"
Approximate net weight............................. 12,900 lbs.

EQUIPPED WITH
24" Diameter fork pull mag chuck Convex Concave
14" Diameter wheel Compensation
1 1/2" Wide wheel face Hydraulic table
28” Swing Inside Guards Push button station
Attached Electrical
Spark out timer
ISHP main spindle motor
Automatic chuck controls
Handwheel on feedbox
Hydraulic unit

Specifications are deemed accurate, however, subject to verification or prior sale.
