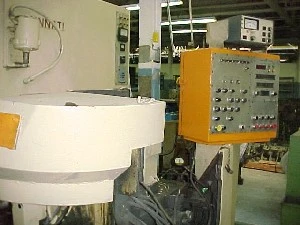

1CF-90 HEALD INTERNAL BORE GRINDER

1CF-90 HEALD INTERNAL BORE GRINDER

PRIVATE S/N 46395Year: 1975tc� \l 1 S/N 46395��� Year\:�1975

STANDARD CATALOG SPECIFICATIONS
Maximum outside diameter of work.............. 4 1/2
Minimum outside diameter of work.............. 7/8
Maximum length of work........................ 2
Maximum swivel of work........................ 30 degrees
Center of wheel spindle from floor............ 40

SPEEDS FEEDS
Table travel (Total includingrun-out)........ 8
Wheel wear compensation ondiameter........... 0 - .004
Work speeds (std).... 266, 366,487, 804, 1105 1473 RPM
High force(adjustable)....................... 30 - 300 lbs.

DRIVE POWER REQUIREMENTS
Backing plate motor........................... 1/2 HP @ 520 RPM
Wheel head motor for belt drive............... 10 HP @ 3600 RPM
Hydraulic pump motor.......................... 2 HP @ 1800 RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP

GENERAL DATA
Overall height................................ 95 1/2
Length width of base on floor............... 68 x 49
Floor space (without coolant tank)............ 91 x 79
Floor space (with coolant tank)............... 109 x 79
Net weight of machine(approximate)........... 10,500#

EQUIPMENT FEATURES
Red Head grinding spindle A.frame style.
Auto-loading unloading.
Single point diamond dresser.
Exterior oscillator.

G.C.H. can remanufacture your machine or one from our many in stock.

Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
