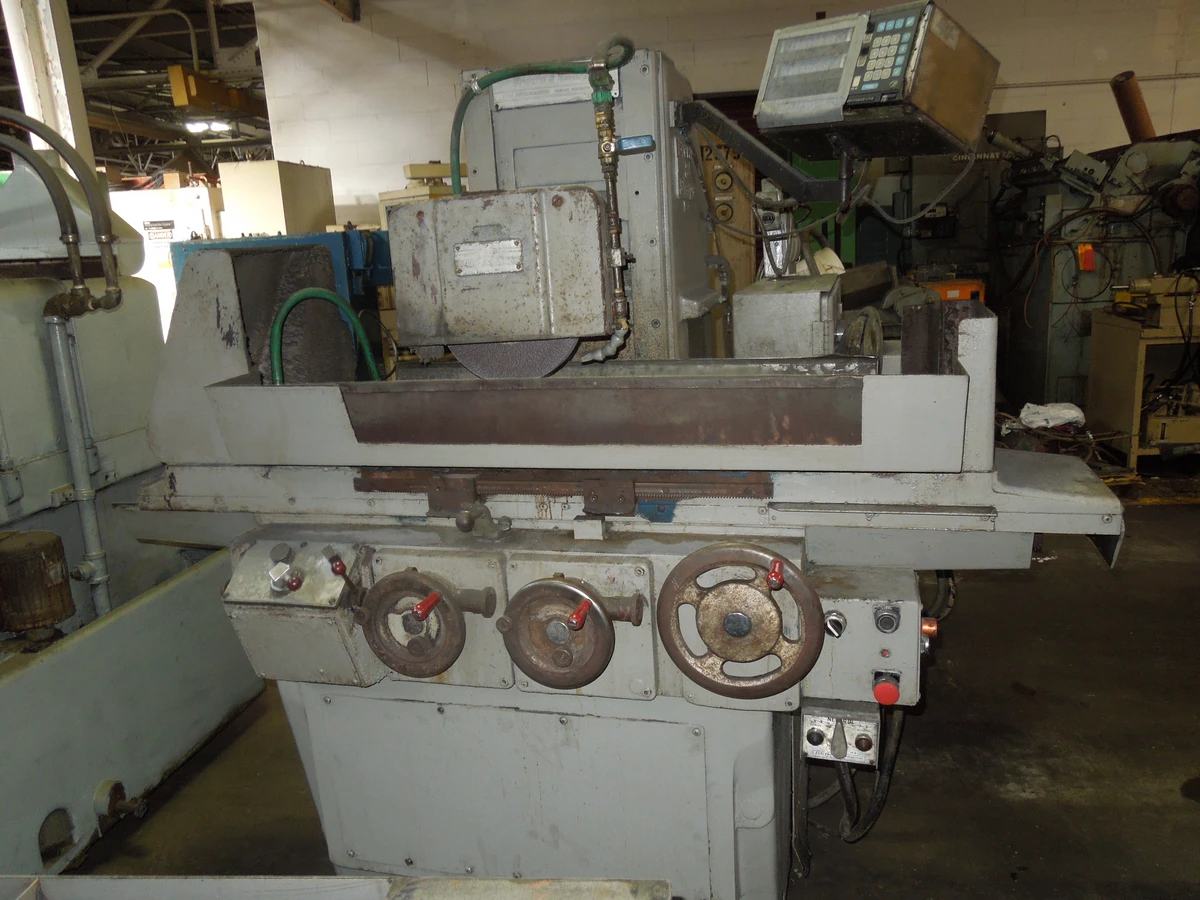

BROWN & SHARPE 10 x 24 HORIZONTAL SURFACE GRINDER

10 x 24 BROWN SHARPEMICRO-MASTER
HYDRAULIC SURFACE GRINDER

S/N 523-1024-326 Year: 1974

STANDARDSPECIFICATIONS
Work table size…………………………………………………….. 10” x 24”
Grinds work to heights of………………………………………….. 18” (W/14”wheel)
Wheel sizes……………………………….……………………….. 14” x 1 1/2” x 5”
Direct drive spindle motor…………………………………………. 5 HP – 1740 RPM
Longitudinal table speed…………………………………………… 10 – 125 FPM
Auto cross feed per table reversal………………………………….. 0.010 -.500”
Power wheel truing…………………………………………………. 10” IPM
Cross hand wheel, grad……………………………………………... 0.0002”
Rapid traverse positioning………………………………………….. 150 IPM
Rapid vertical power positioning…………………………………… 40 IPM
Vertical hand wheel, grad………………………………………….. 0.0002”
Fine feed knob (grad.) for vertical feed……………………………. 0.0001”
Approx. machine weight……………………………………………. 6,000 lbs.
EQUIPPED WITH
Hydraulic longitudinal cross feeds.
Power rapid wheel head positioning (up down).
14” Grinding wheel.
Fine feed knob for vertical hand wheel (.0001” grad).
Coolant system.
Auto lubrication.
5 HP 3/60/230-460 volt Brown Sharpe Super-Precision directdrive spindle.
Electro-Matic chuck control with neutrofier.

Specifications aredeemed accurate, however, subject to verification or prior sale.
