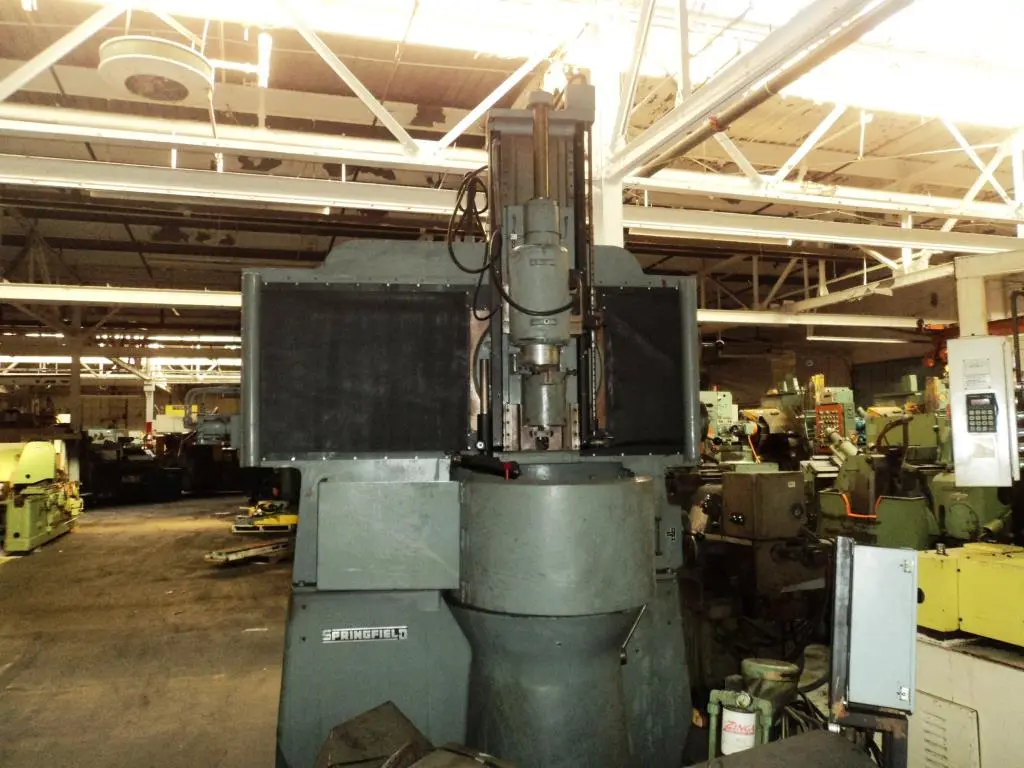

2TR SPRINGFIELD UNIVERSAL VERTICAL GRINDER

2 TR SPRINGFIELDUNIVERSAL VERTICAL GRINDER

S/N 53026

STANDARD CATALOG SPECIFICATIONS

WORK SPINDLE
Nominal swing......................................30
Actual maximum swing...............................31
Standard face plate diameter.......................25
Work spindle speed range, infinite................. 0 to 450 RPM
Face plate to floor................................ 33 3/4

WHEEL SPINDLE GRINDING HEAD
Nominal hole depth capacity........................ 18
Stroke of grinding head, maximum................... 21
Clearance over face plate, maximum................. 20
Clearance over work spindle, maximum............... 22 1/2
Grinding head stroke, inches per minute............ 0 - 235
Tarry period, either or both ends of stroke........ .6-12 Sec.
Angle setting of head, either side of center....... 0-45 Deg.

MOTORS
Wheel spindle.................................7.5 HP, 3450 RPM
Hydraulic system.............................. 5 HP, 1200 RPM

FLOOR SPACE
Right to left, overall............................. 70
Front to back, overall............................. 52 3/4
Height, overall.................................... 121

STANDARD EQUIPMENT
Standard face plate.
Wheel dresser less diamond.
All electrical hydraulic controls.
Face cut.
Variable face feed.
Variable spindle.
Auto up down.
Dresser.
Fine feed.

Specifications are deemed accurate, however, subject to verification or prior sale.
