PARKER MAJESTIC 1C

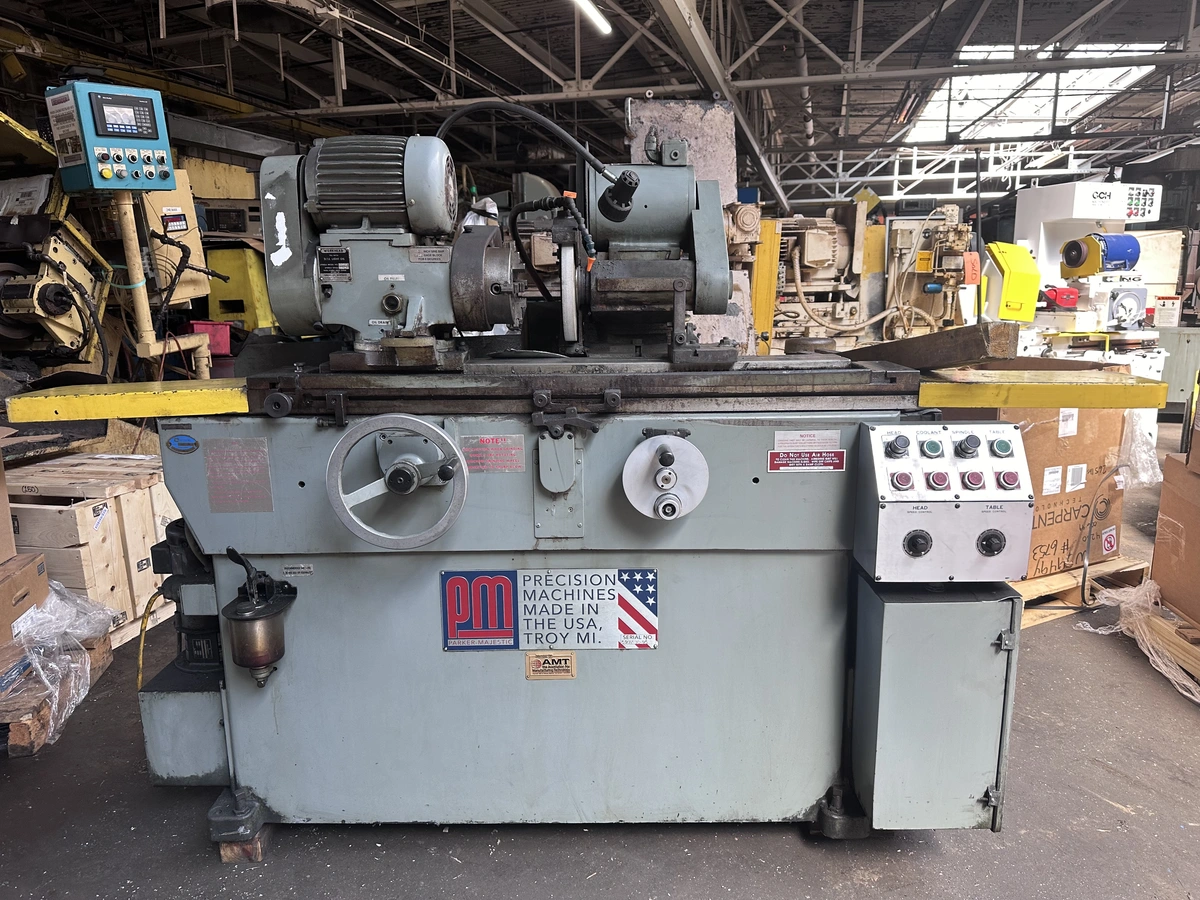

PARKER MAJESTIC 1C 12x20 ID/OD UNIVERSAL GRINDER

S/N 5997.1C.95 Year: 1995

STANDARD SPECIFICATIONS
Max Part Diameter………………………………………………………………………………12”
Distance Between Centers……………………………………………………………20”
Worktable Size………………………………………………………………………………………5”x 20”
Table Swivel……………………………………………………………………………………………7 Degrees

WORKHEAD SPINDLE
Speed………………………………………………………………………………………………………………0-1000 RPM
Spindle Nose Parker Taper…………………………………………………………5C Collets
Drive Motor………………………………………………………………………………………………1 HP 1750/200 RPM
Manual Pivoting Workhead (B-Axis) – Accuracy 0.0005 Degrees
Power Consumption………………………………………………………………………………6 KVA
Max Current………………………………………………………………………………………………30 A
Total Power Rating……………………………………………………………………………10 HP

DIMENSIONS
Overall Dimensions (WxDxH)………………………………………………………104”x 41”x 46”
Machine Weight………………………………………………………………………………………5200 LBS

EQUIPPED WITH
Table axis.
Manual & variable speed electric table drive.
Hand scraped turcite coated vee & flat way system.
¾ HP 1750/400 RPM Table feed motor.
7 Degree table swivel.
Crossfeed axis.

Specifications are deemed accurate, however, subject to verification or prior sale.
