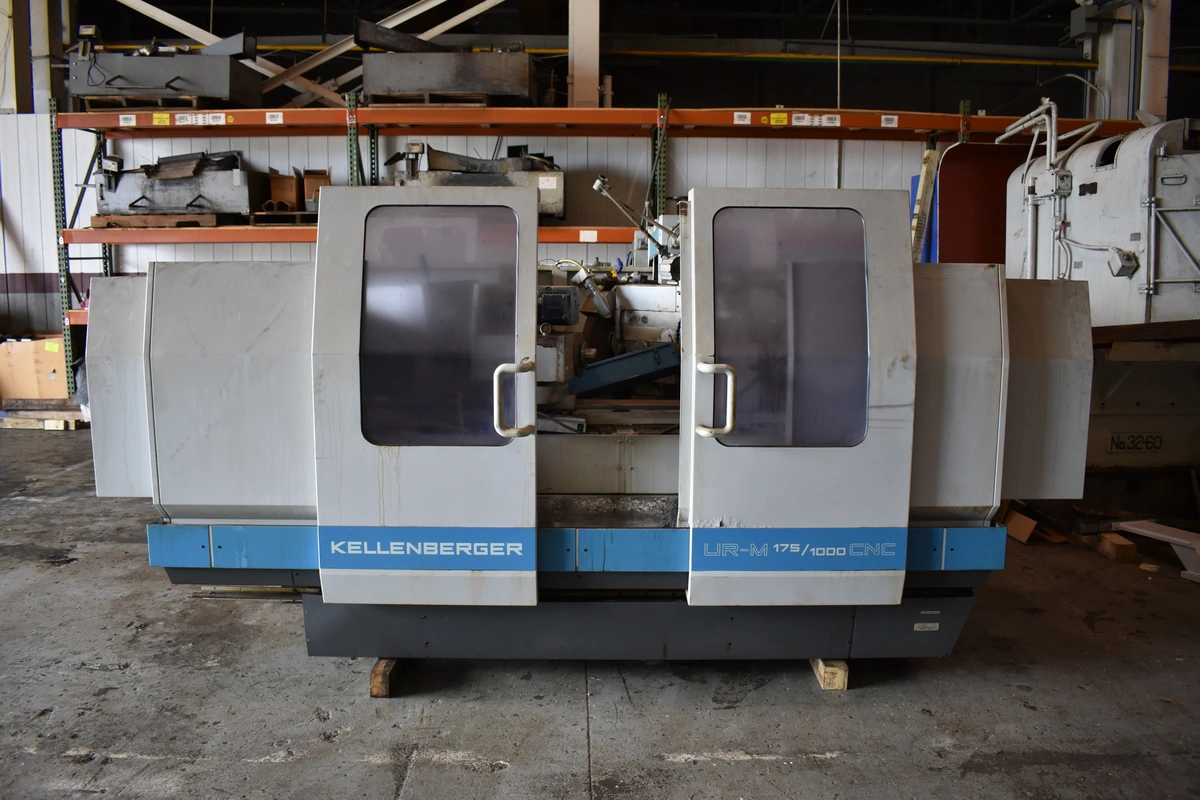

KELLENBERGER MODEL UR 175 x 1000 UNIVERSAL CNC CYLINDRICAL GRINDER

KELLENBERGER MODEL UR 175 x 1000
UNIVERSAL CNC CYLINDRICAL GRINDER
S/N 620527

STANDARD SPECIFICATIONS

CAPACITY
Distance between centers......................... 39.37”
Height of centers................................ 6.89”
Max swing over table............................. 9.80”

TABLE (Z-Axis)
Max travel.......................................43.90”
Feed rates...................................... 000010 - .009990
Table feed........................................1 – 394
Jogging feeds.....................................000100
Rapid traverse...................................394”min
Dwell of reversal................................ 0-99
Max swivel.......................................9 degrees

WHEELSLIDE(X-Axis)
Max travel.......................................10.62”
Cont. infeed rates.............................. .000010 - .009990
Incremental infeed per table reversal........... .000010 - .009990
Discontinuous infeed per step................... .000100
Rapid traverse..................................394” min

WHEELHEAD
GW for cylindrical grinding..................... 16” x 2.5” x 5”
GW for right hand spindle end................... 9” x 0.75” x 3”
Power of motor.................................. 4,4 kw
Spindle speed...................................1750 rpm
Grinding wheelhead swivels...................... 270 degrees
With indexed stop every...................... 90 degrees
Internal grinding spindle carrier dia........... 70 (80)mm

WORKHEAD
Swivel.........................................360degrees
Spindle speeds(programmable).................. 5 – 500 rpm
Internal taper of spindle...................... #5 morse
Adapter........................................#4/5morse
Power of motor................................. 2,4 kw

TAILSTOCK
Internal taper of quill........................ #4 morse
Quill retraction...............................1.18”

ELECTRONIC CONTROL UNIT
-Axis continuous path control
Program storage capacity....................... 8 kilobytes
Resolution, X-Axis.............................0,5
Resolution, Z-Axis.............................0,5
Input sensitivity, X-Axis...................... .000010”
Input sensitivity, Z-Axis...................... .000010”
Overrides for X, Z, workhead spindle......... 0-200%

EQUIPPED WITH
Kelco90 CNC control
Headstock Siemens servo driven
Tailstock– lever action
Internal grinding spindle

Specifications are deemed accurate, however, subject to verification or prior sale.
